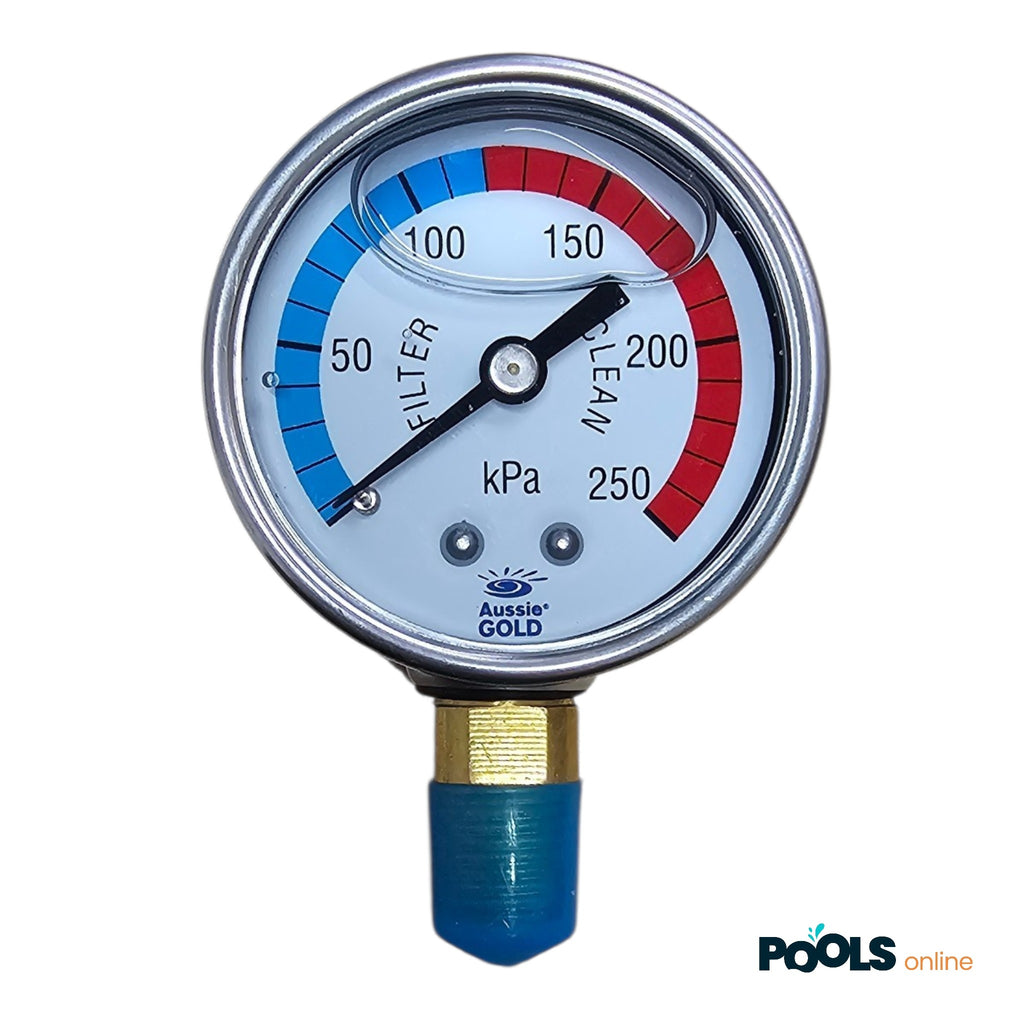

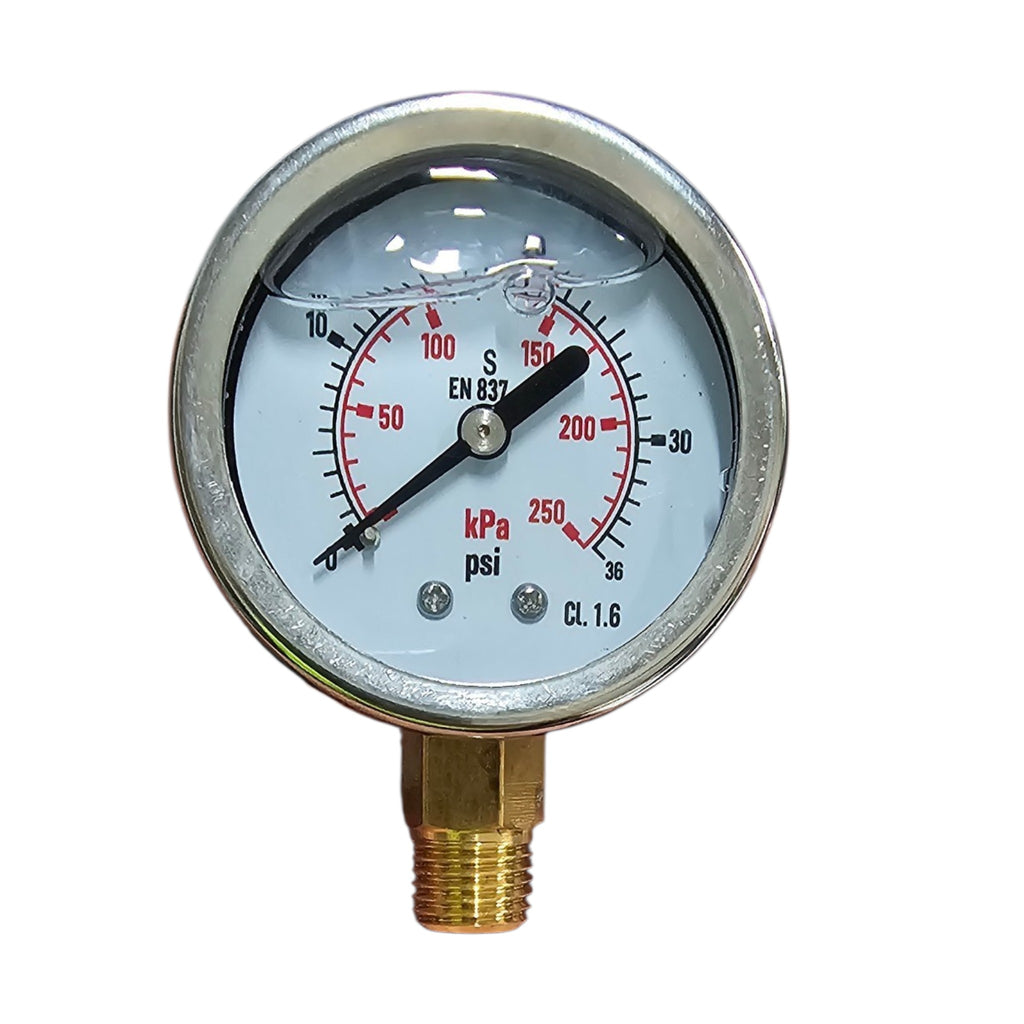

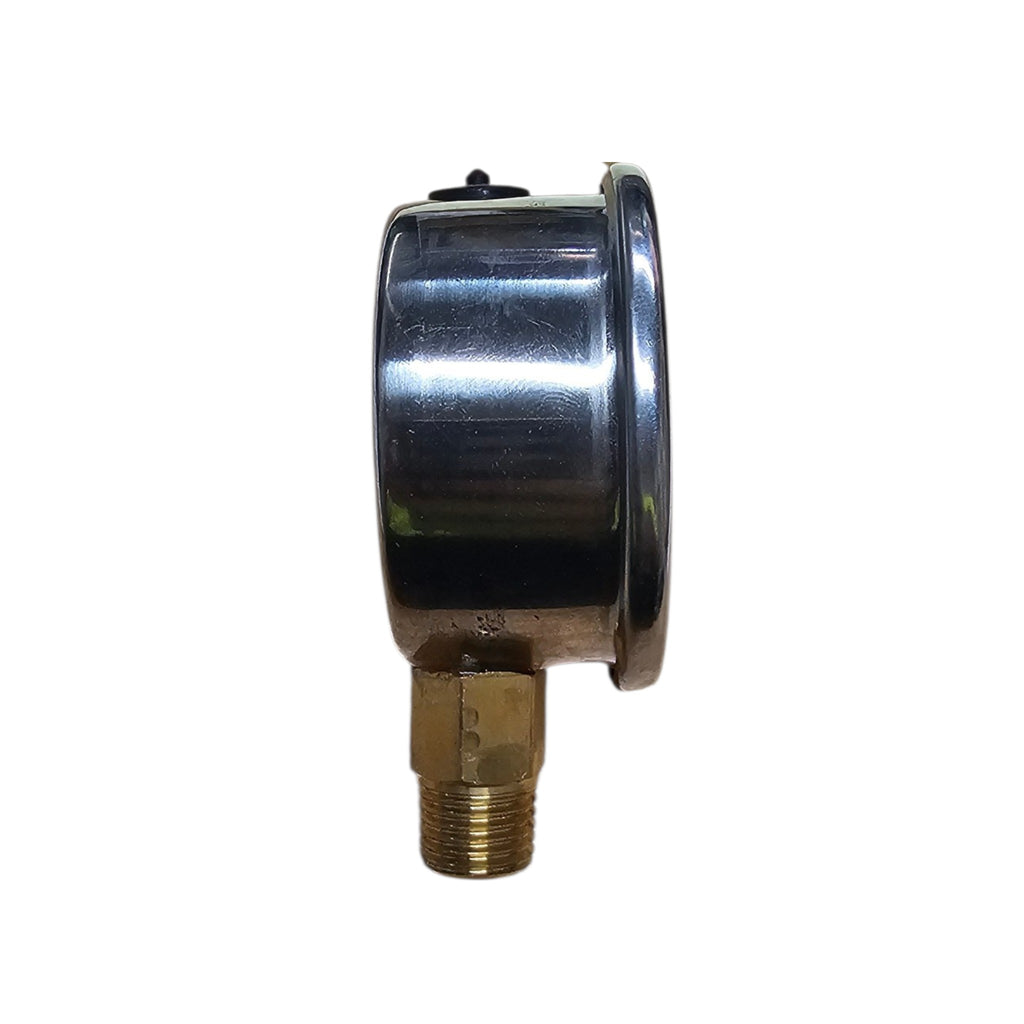

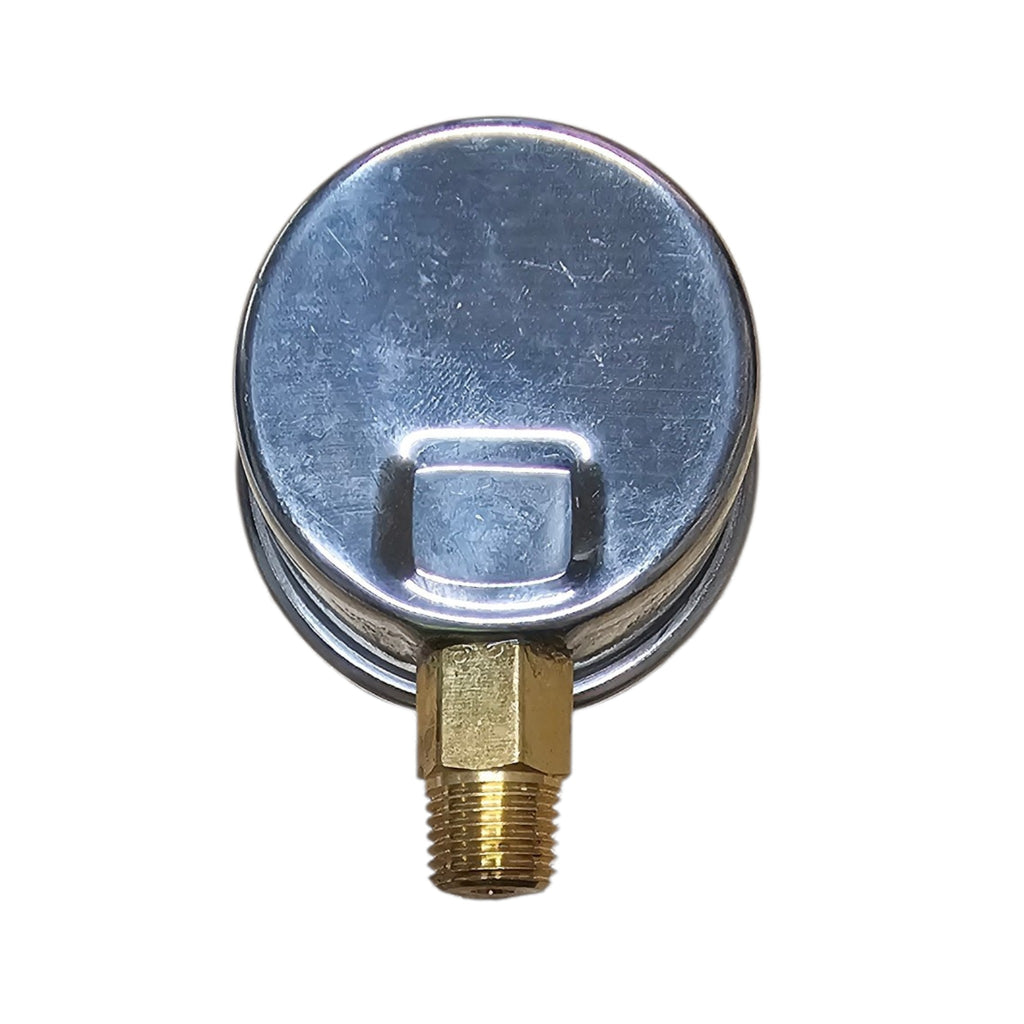

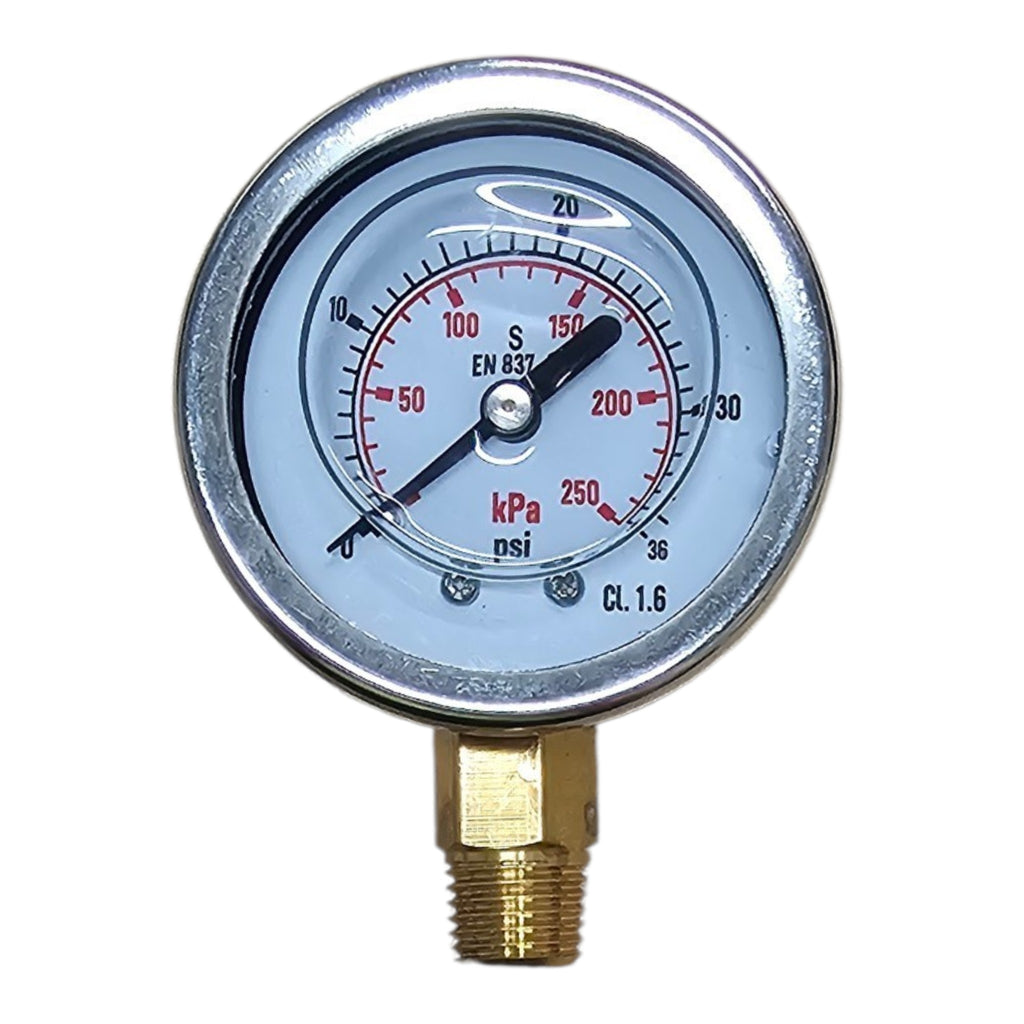

AstralPool Hurlcon Liquid Filled Filter Pressure Gauge Bottom Entry
🏷️ BRAND COMPATIBLE:
AstralPool / Hurlcon / Generic Option Available
📝 DESCRIPTION:
Eliminate needle stutter and extend the operational lifespan of your pool system monitoring with this commercial-grade pressure gauge. The AstralPool Hurlcon 75032 Bottom Entry/Lower Mount Pressure Gauge is a genuine, high-accuracy diagnostic component built to handle the intense, fluctuating hydraulic environments of residential and commercial swimming pools. Unlike cheap dry dials that fail quickly due to vibration fatigue, this premium instrument is fully liquid-filled with dense, high-purity glycerin oil. This internal dampening fluid cushions moving gear components, smooths out rapid needle pulsations, and prevents inner wear to preserve accurate, steady performance over thousands of filter cycles.
Encased in a heavy-duty, corrosion-resistant stainless steel protective housing, this bottom-entry gauge is built for demanding outdoor equipment pads and continuous chemical exposure. It relies on a solid brass standard 1/4" BSP threaded connection stem (~13mm outer thread diameter) to seat flawlessly into matching multiport valves or cartridge filter heads without stripping threads. By providing crisp, real-time pressure readouts, it enables pool owners to spot optimal filter backwashing intervals early, identify performance-robbing line blockages, and safeguard primary pumps from critical low-flow overheating conditions.
📦 PARTS INCLUDED:
-
1 x Genuine AstralPool Hurlcon 75032 Stainless Steel Liquid-Filled Pressure Gauge (Bottom Mount Assembly)
📐 MEASUREMENTS:
-

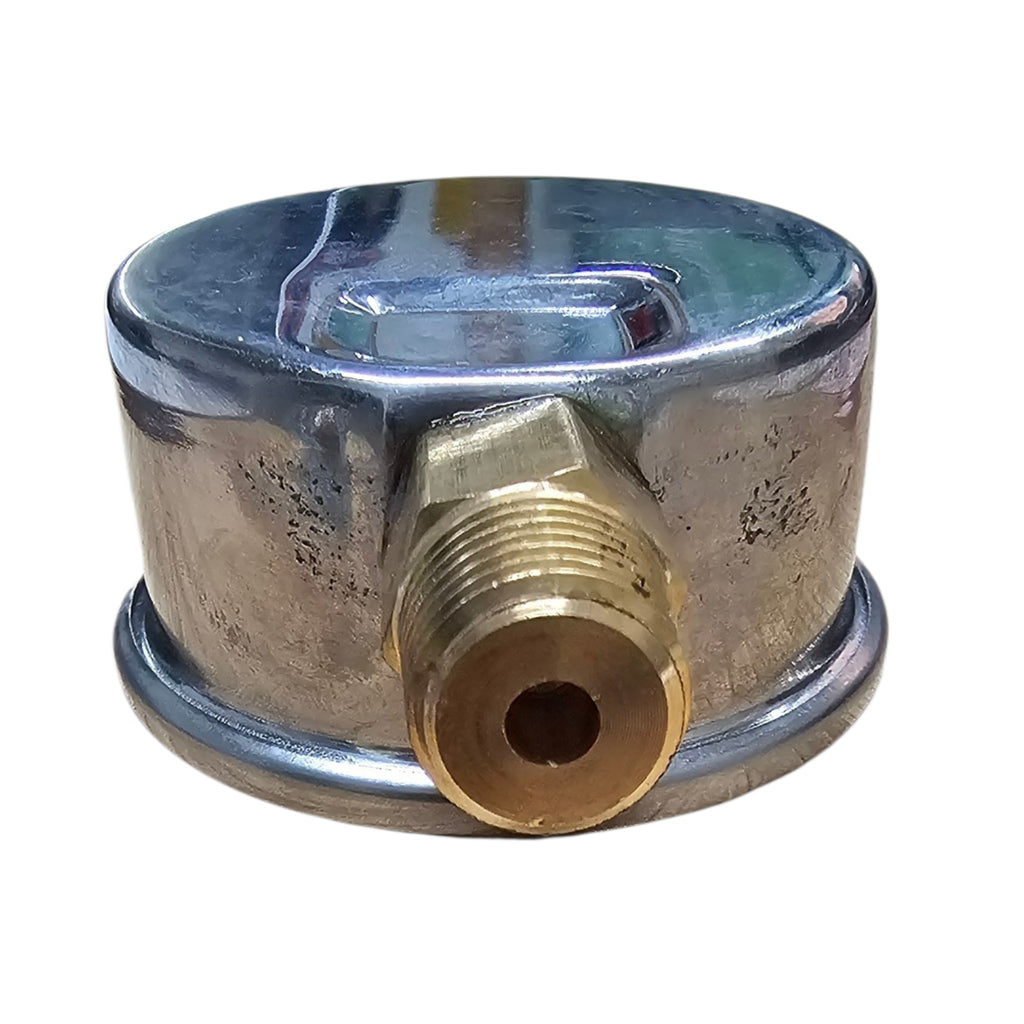

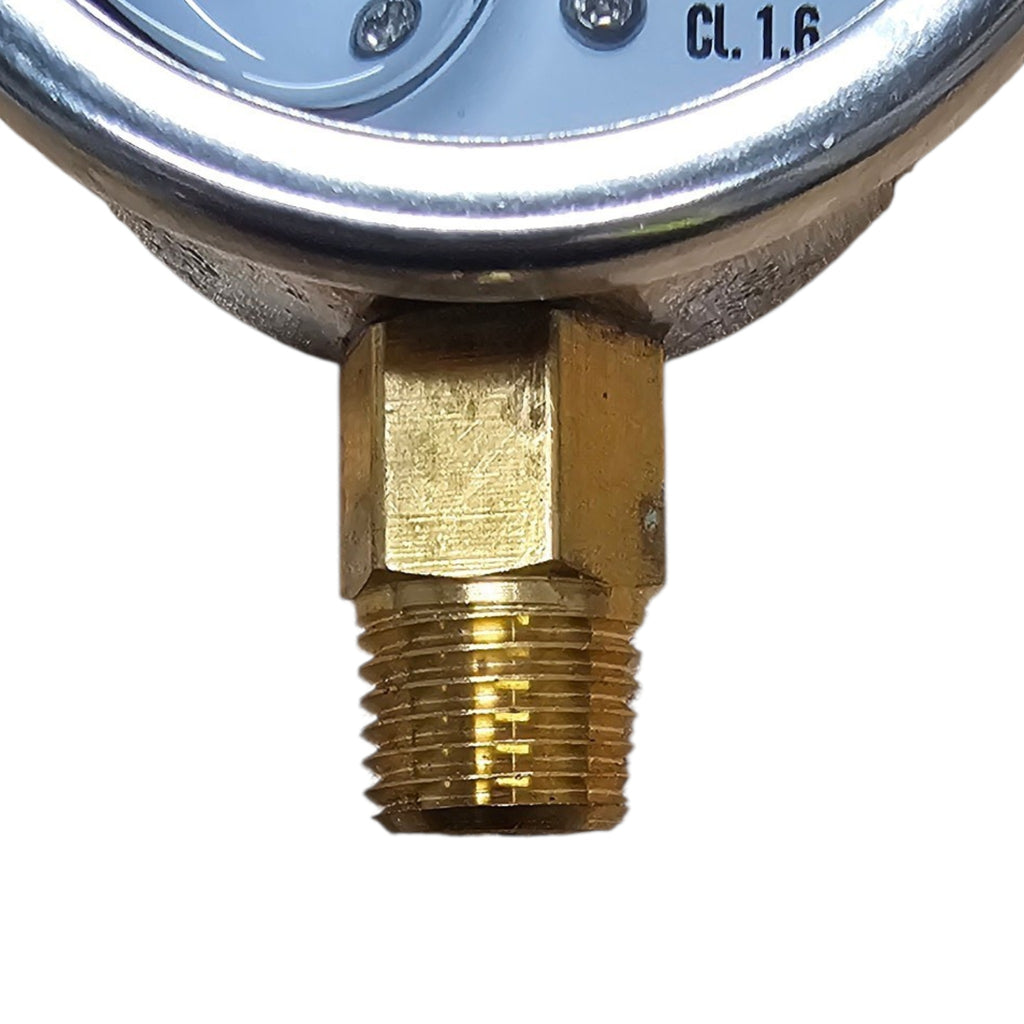

Thread Fitting Size: 1/4" BSP (British Standard Pipe / Approx. 13mm thread outer diameter)
-
Dial Face Diameter: 50mm (Standard 2" Display Profile)
-
Entry Profile: Vertical Lower Mount / Bottom Entry Stem Installation
⚙️ SPECIFICATIONS & COMPATIBILITY:
-
Brand Compatible: AstralPool, Hurlcon, Fluidra, Hayward, Waterco, Davey, Zodiac, Onga, Poolrite, Emaux, Jandy, Pentair
-
Brand: AstralPool / Fluidra
-
Model: Premium Liquid-Filled Lower Mount Pressure Gauge (75032)
-
Replaces: Legacy Unfilled Top-Mount Dials, Vibration-Damaged 1/4" Thread Gauges
-
Compatible With: AstralPool Hurlcon RX / QL / CL / CF / FC / E-Series / UF Sand and Cartridge Filters. Fits any global brand's multiport valves, top tanks, and inline pipe manifests that utilize a standard vertical 1/4" BSP receiver port.
-
Colour: Polished Stainless Steel Casing with Bright White Display Dial & Black/Red Numerical Markings
-
SKU: 75032
📂 DOWNLOADS:
🛡️ WARRANTY INFORMATION:
12-Month Limited Manufacturer's Technical Warranty. Please contact AstralPool (Fluidra Australia) directly via their official technical assistance department to resolve gauge calibration questions, matching filter parts cross-references, or component defect evaluations.
