Dontek Aquasmart 5 CD Solar Controller
🏷️ BRAND COMPATIBLE:
Dontek Electronics / Universal Retrofit Option Available
📝 DESCRIPTION:
Take complete automated control of your pool's solar heating with the industry's smartest current-detection system. The
Dontek Aquasmart 5 CD (Current Detection) Solar Controller is a premium Australian-made system explicitly engineered for boosted pool designs. Ideal for integrated or retrofitted loops where a primary filtration pump and a secondary solar pump run in tandem, this unit completely eliminates the risk of dry running. Featuring smart, built-in current tracking on its auxiliary (AUX) socket, it ensures your dedicated solar pump will only fire up if it detects that the primary filtration flow is active and drawing power within safe operational parameters.
Constructed inside a vermin-resistant, marine-grade UV-stabilised chassis with built-in surge protection, the Aquasmart 5 CD features an oversized, user-friendly backlit LCD display that drops cryptic service codes in favour of clear text alerts. Driven by an advanced self-diagnostic program, it continually reads data from two industrial-grade temperature sensors (pool and roof) to maximize thermal collection. It comes loaded with built-in clock battery backups, automated sampling sequences, tropical cooling modes, anti-freeze circulation logic, and a specialized winter conservation routine to actively protect rooftop solar collector mats from stagnation and frost burst damage during low-use seasons.

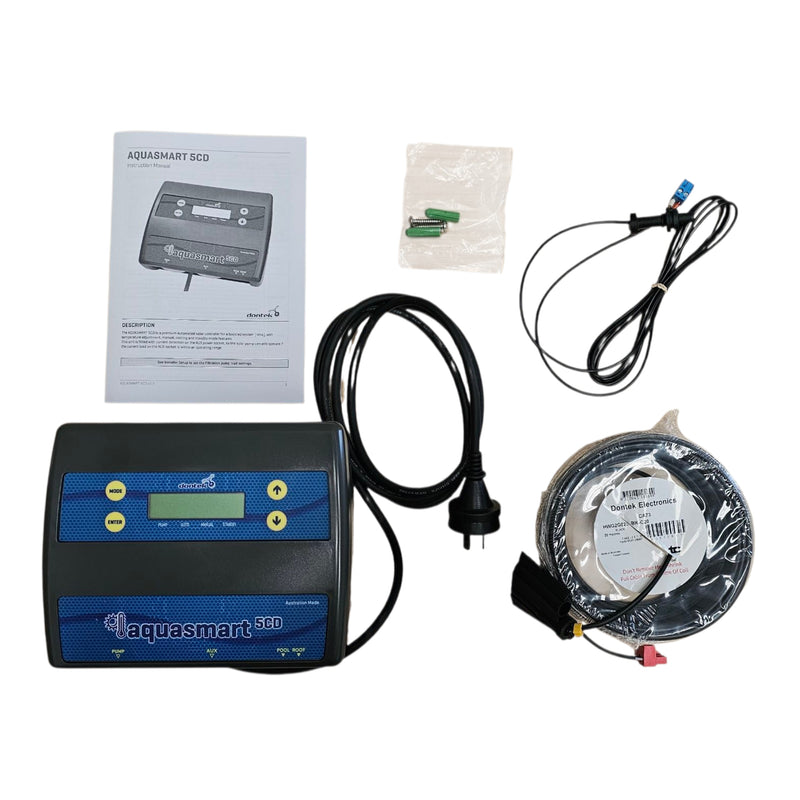

📦 PARTS INCLUDED:
-

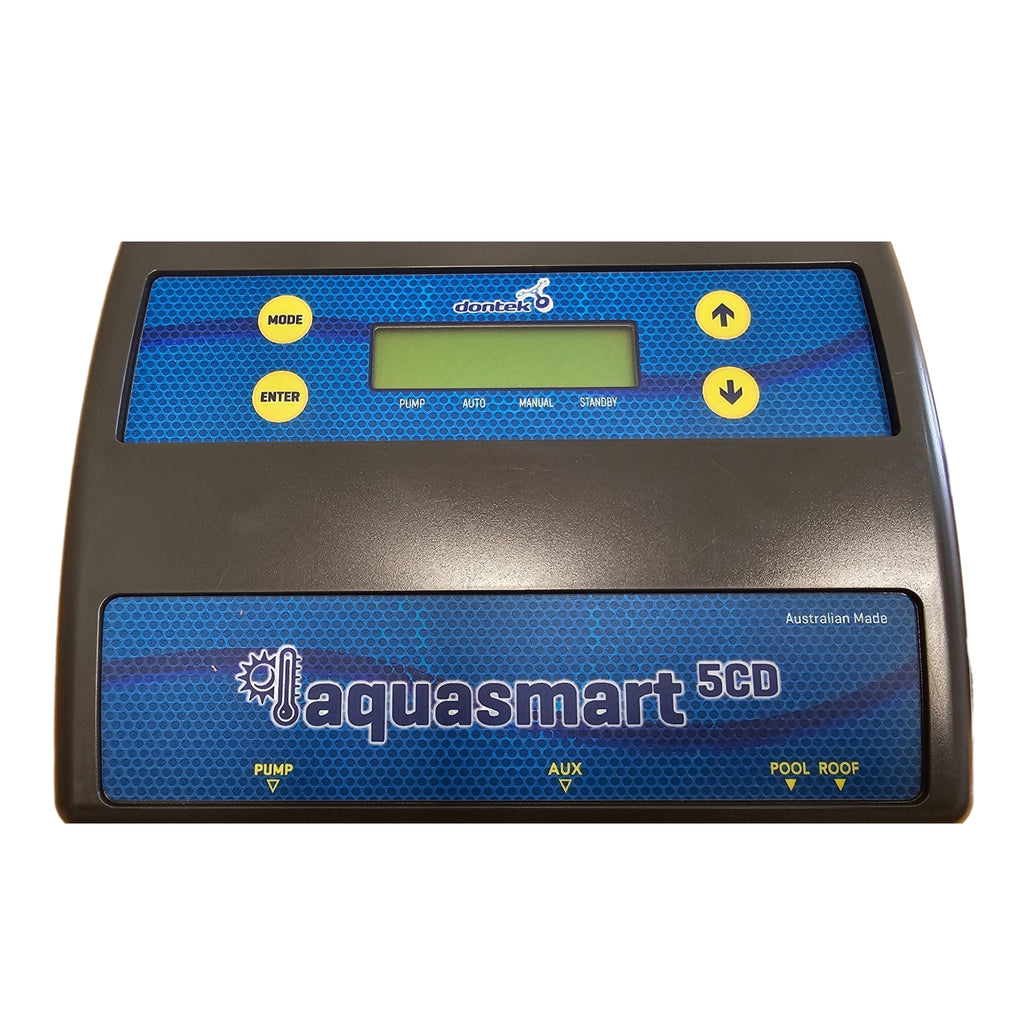

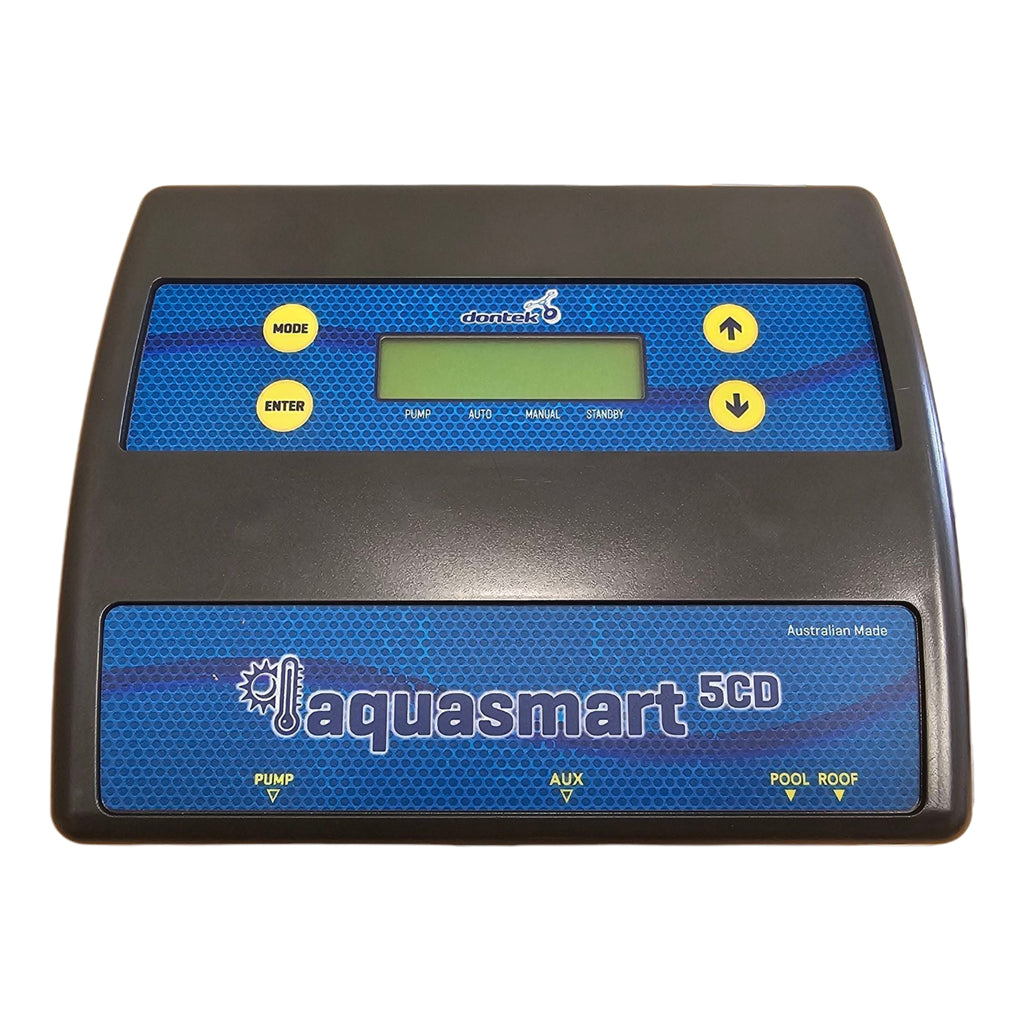

1 x Dontek Aquasmart 5 CD Solar Controller Base Unit
-

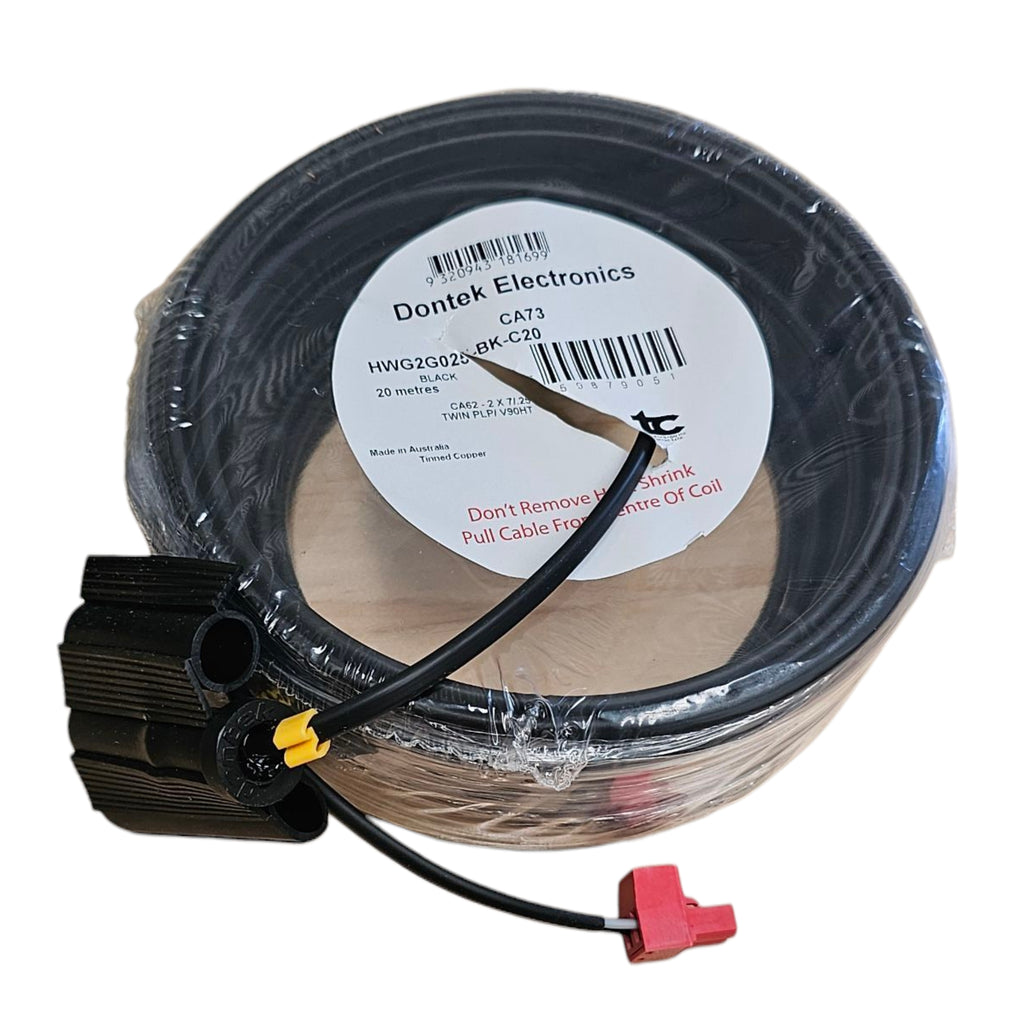

1 x Heavy-Duty Roof/Hot Temperature Sensor Cable
-

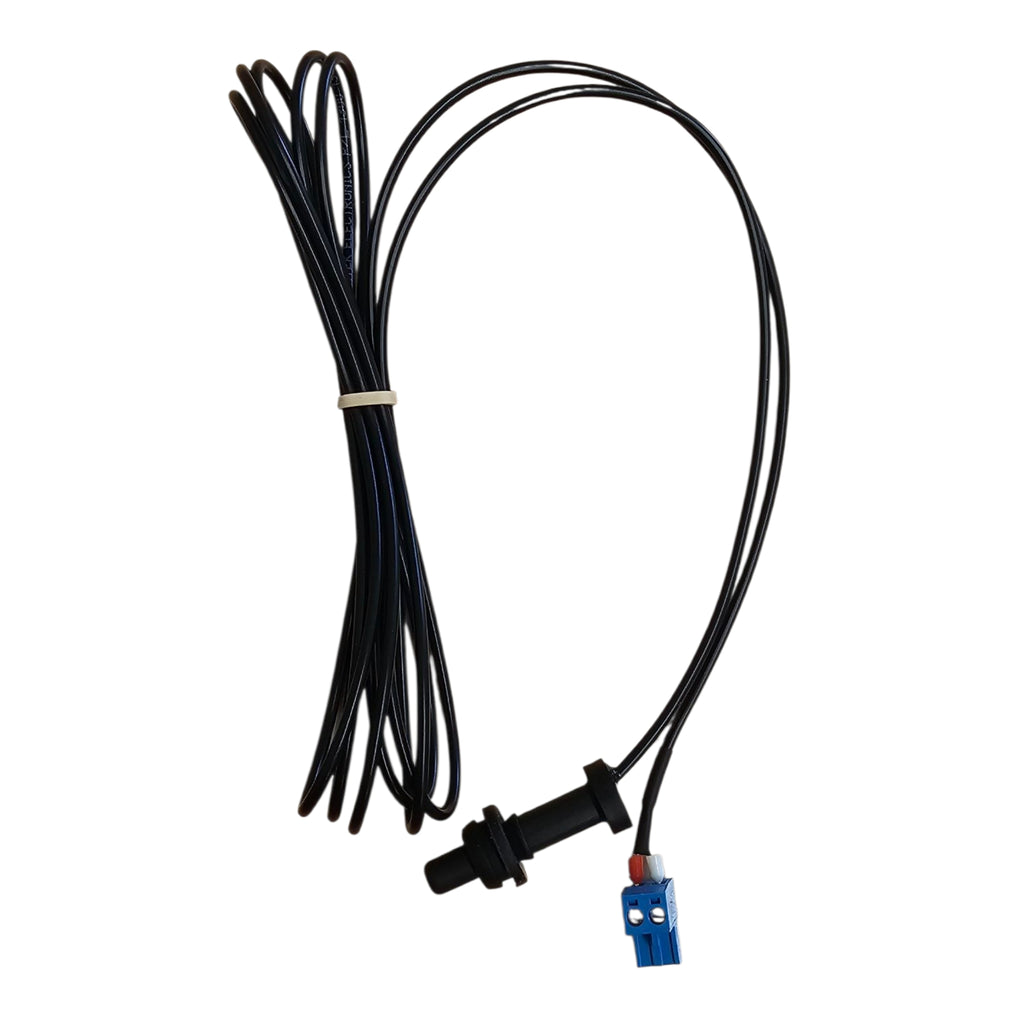

1 x Marine-Grade Pool/Cold Temperature Sensor Cable
-

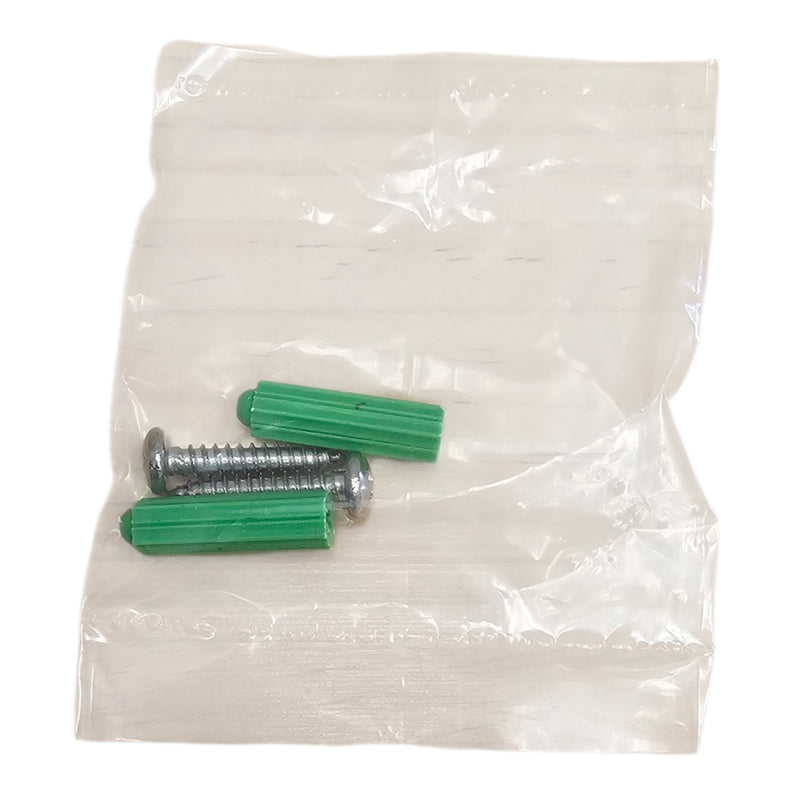

1 x Multi-Fit Wall Mounting Bracket & Fixing Screws Kit
-

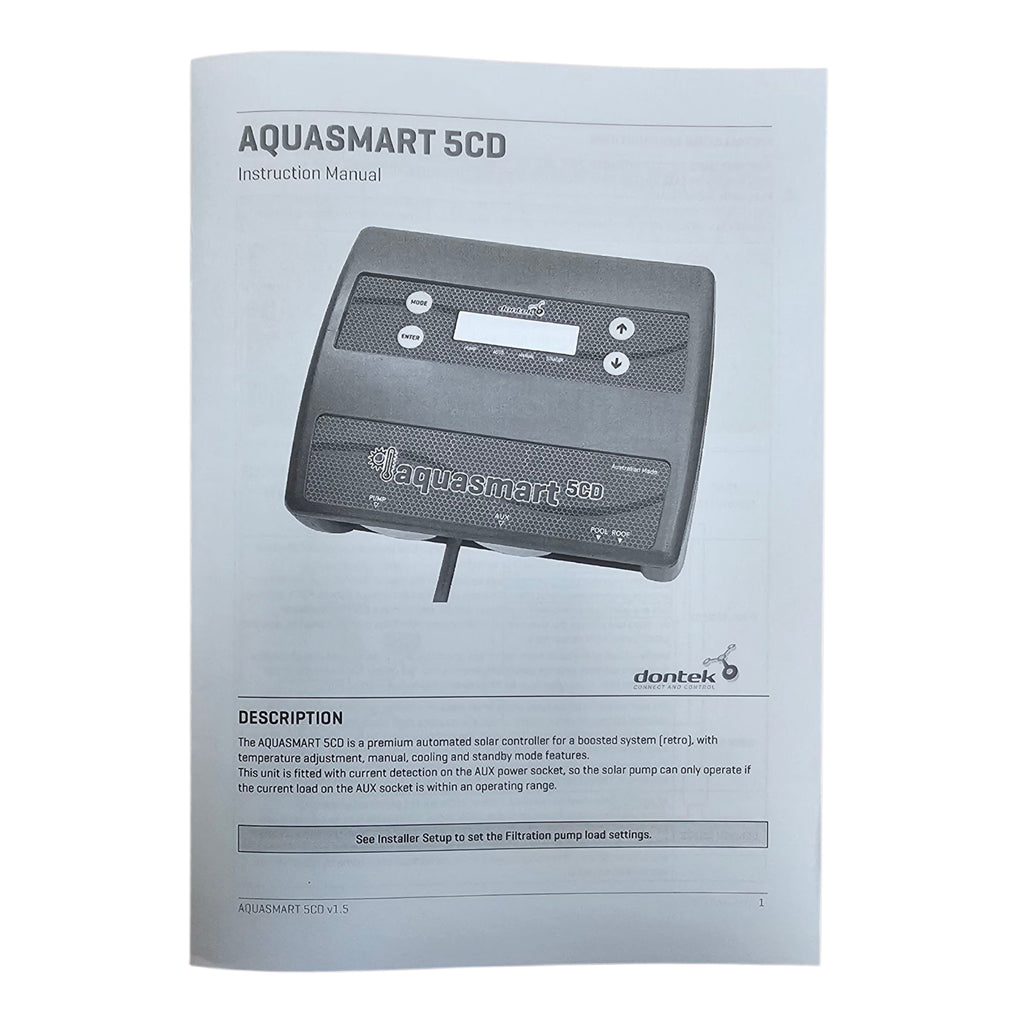

1 x Step-by-Step Programming and Installation Manual
📐 MEASUREMENTS:
-
Height: 200mm
-
Width: 100mm
-
Depth: 100mm
-
Unit Weight: 2.0 kg
-
Sensor Cable Entry Hole: Standard Gland Fits 4.8mm to 9.8mm Lines
⚙️ SPECIFICATIONS & COMPATIBILITY:
-
Brand Compatible: Dontek, AquaSmart, AstralPool, Waterco, Ascon, Sunbather, Boss Solar
-
Brand: Dontek Electronics
-
Model: Aquasmart 5 CD Series (Current Detection Booster Control)
-
Replaces: Legacy AS5-CD Modules, Early Generation Two-Pump Solar Controllers
-

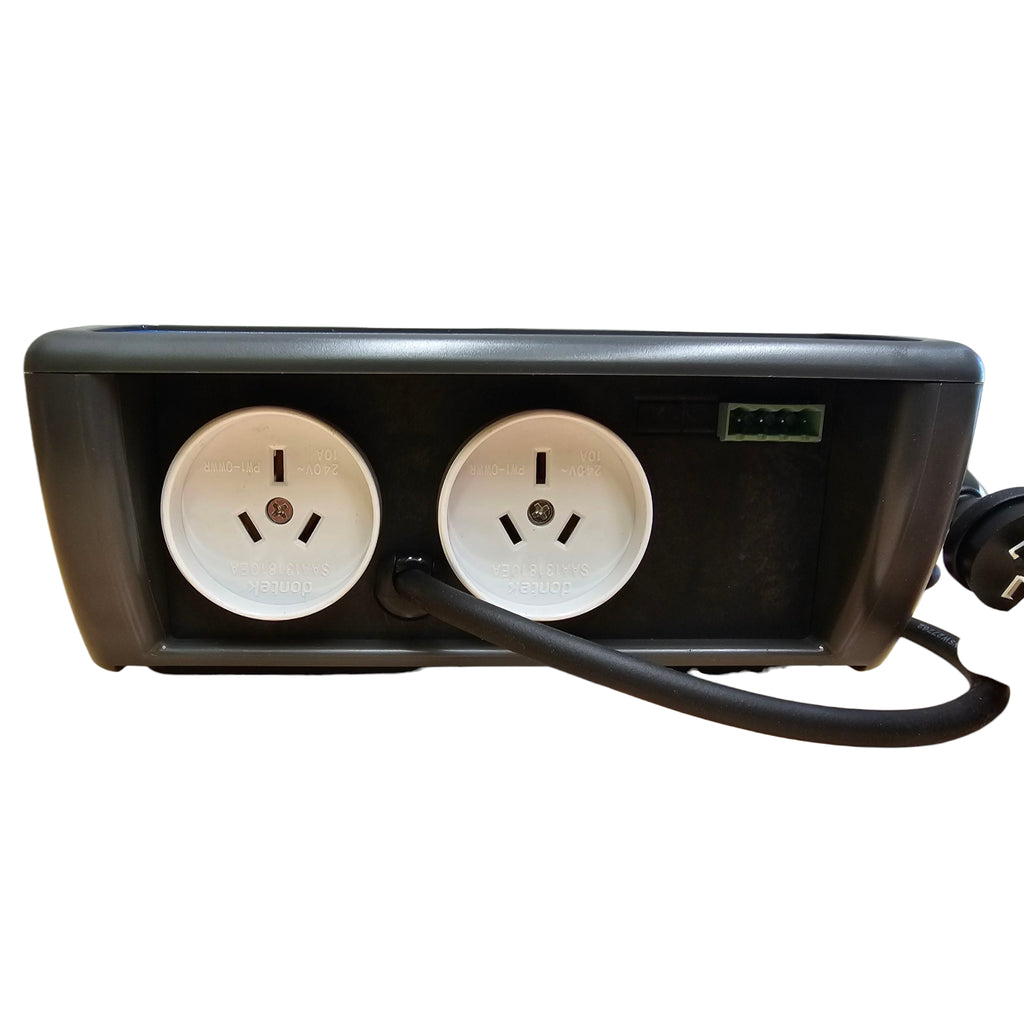

Compatible With: 3-Pin Australian C38 Household Plugs (10A Inductive Load Limit), 12V to 240V Multi-Pump Secondary Filtration Layouts, and standard wired pool/roof NTC thermistor sensor arrays.
-
Colour: Sleek Charcoal Dark Grey with High-Contrast Blue & Yellow Control Buttons
- SKU: 1012104DT
📂 DOWNLOADS:
🛡️ WARRANTY INFORMATION:
3-Year Limited Manufacturer's Factory Warranty. Please contact
Dontek Electronics directly through their official service return portal to access system hardware diagnostics, replacement sensor cables, or authorized factory warranty replacement claims.
