Oasis P Series High Performance Pool Pump
🏷️ Brand
Oasis (Sunlover Group)
📝 Description

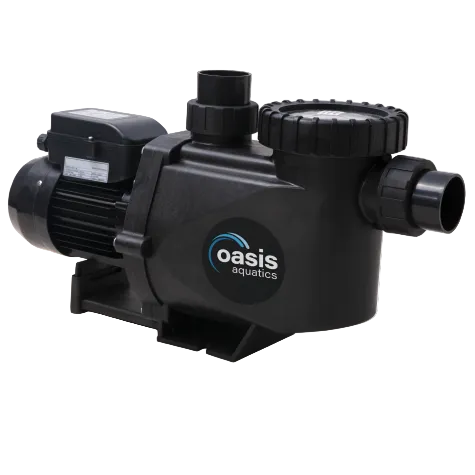

The Oasis P Series (P270, P330, P380 and P490) are 240V single speed pool filter pumps from 1.0HP to 2.0HP, delivering 270 to 490 L/min at 8 m head, with a clear lid, stainless steel shaft and barrel unions to suit 40 mm or 50 mm pipe.
The P Series is built for high flow and strong filtration under pressure at an economical running cost. The diffuser and balanced impeller design keep noise down, and the pump body is made from corrosion resistant engineering grade thermoplastic.
Inside you'll find a stainless steel pump shaft, a lapped true carbon face and ceramic seal, and stainless steel assembly nuts and bolts for a long, reliable life. The clear lid lets you check the basket at a glance.
📦 Parts Included
- 1x Oasis P Series pool pump (model as selected)
- 2x Barrel unions (40 mm / 50 mm)
- 1x 2 m power lead with 10A 3-pin plug
- 1x Installation and operation manual
📐 Measurements
Measurements are approximate.
- Length: P270 605 mm, P330 610 mm, P380 625 mm, P490 655 mm
- Suction and discharge: suit 40 mm or 50 mm pipe
⚙️ Specifications & Compatibility
-
SKU: P270 / P330 / P380 / P490
-
Horsepower: P270 1.0 HP, P330 1.25 HP, P380 1.5 HP, P490 2.0 HP
-
Max flow at 8 m head: P270 270 L/min, P330 330 L/min, P380 380 L/min, P490 490 L/min
-
Input power: P270 950 W, P330 1150 W, P380 1500 W, P490 1980 W
-
Full load amps: P270 4.10 A, P330 4.97 A, P380 6.40 A, P490 8.60 A
-
Max noise at 1 m: P270 60 dB(A), P330 62 dB(A), P380 63 dB(A), P490 65 dB(A)
-
Power supply: 240V, 50Hz, single phase, 10A plug
-
Connections: 40 mm pipe ID or 50 mm fitting ID, barrel unions supplied
-
Max water temperature: 45°C
💡 Before You Buy
-
Match your filter. Choose a pump whose flow suits your filter's maximum flow rate and your pool size.
-
Want lower running costs? The variable speed Oasis V Series uses up to 70% less power than a single speed pump.
-
Power and safety. Use an RCD-protected outlet (30 mA) and no extension lead. If there's no outlet within 2 m, an electrician should install one.
🔧 Our Tips
-
Give it a straight run. Allow at least 300 mm of straight pipe before the pump inlet, and keep at least 100 mm clear behind the fan shroud.
-
Prime it first. Fill the basket with water before starting and never run the pump dry.
-
Hand-tight unions. Tighten barrel unions by hand and don't use green "P" plumber's glue on them.
❓ Common Questions
-
Will it fit my existing plumbing? Yes, if your pipe is 40 mm or 50 mm. The barrel unions accept 40 mm pipe or 50 mm fittings.
-
Do I need a check valve? If the pump sits above the pool water level, a check valve in the suction line is generally recommended.
-
How do I clean the basket? Switch the pump off, unscrew the clear lid, empty the basket and check it for cracks, then refit the lid by hand on its O-ring.
📂 Downloads and Support
🚚 Shipping
🛡️ Warranty Information
Limited warranty from Sunlover / Oasis: 3 years on the pump body and seal plate, 2 years on the motor and 12 months on the mechanical seal. O-rings and gaskets are routine maintenance items. Commercial installations: 6 months parts and labour.
Other Search Terms: Oasis P270, P330, P380, P490, Oasis pool pump, Sunlover pump, Oasis Aquatics P series, single speed pool pump, 1hp 1.25hp 1.5hp 2hp pool pump
