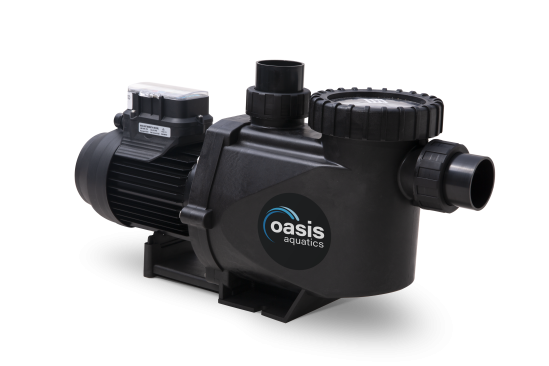

Oasis V Series Variable Speed Pool Pump
🏷️ Brand
Oasis (Sunlover Group)
📝 Description
The Oasis V Series (V310, V390 and V480) are 240V variable speed pool pumps with a 3 speed DC motor and a 6 star energy rating, running at around 50 dB(A) and cutting pump running costs by up to 70% compared with a standard single speed pump.
A single speed pump works flat out all the time. The V Series runs on its low Eco speed for everyday filtration, then ramps up to Medium or High when you need more flow, which makes it ideal for pools with spa jets, water features or in-floor cleaning. Running at lower speeds most of the time also means a quieter backyard and a longer pump life.
The pump fits 40 mm or 50 mm PVC pipe with the supplied barrel unions, so it's a straightforward swap for most existing pool pumps.
📦 Parts Included
- 1x Oasis V Series variable speed pump (model as selected)
- 2x Barrel unions (40 mm / 50 mm)
- 1x Power lead with 3-pin plug
- 1x Installation and operation manual
📐 Measurements
Measurements are approximate.
- Length: 660 mm (V310), 700 mm (V390, V480)
- Suction and discharge: suit 40 mm or 50 mm pipe
⚙️ Specifications & Compatibility
-
SKU: V310 / V390 / V480
-
Equivalent power: V310 1.25 HP, V390 1.75 HP, V480 2.25 HP
-
Max flow at 8 m head: V310 310 L/min, V390 390 L/min, V480 480 L/min
-
Input power: V310 1000 W, V390 1330 W, V480 1700 W
-
Full load amps: V310 7.10 A, V390 8.95 A, V480 7.21 A
-
Speeds: 3 (Low/Eco, Medium, High), factory set up to 2850 rpm on High
-
Energy rating: 6.0 star
-
Energy consumption: V310 385 kWh/yr, V390 461 kWh/yr, V480 489 kWh/yr
-
Noise: around 50 dB(A)
-
Power supply: 240V, 50Hz, 3-pin plug
-
Connections: 40 mm pipe ID or 50 mm fitting ID, barrel unions supplied
💡 Before You Buy
-
Choose by flow. Match the pump to your filter's maximum flow rate. Bigger is not always better: too much flow can exceed your filter's rating.
-
Replacing a pump. Check the distance between the suction and discharge pipes on your old pump; the barrel unions make small alignment differences easy.
-
Power and safety. Plug into a weatherproof outlet with RCD protection (30 mA). Don't use an extension lead; if there's no outlet within 2 m, have an electrician install one.
-
Running a chlorinator? Plug the pump into your chlorinator's pump outlet as usual, and use the low speed for most of the filtration time.
🔧 Our Tips
-
Mount it right. Install the pump close to the pool on a firm, well-drained base raised above any flooding, with at least 100 mm clear behind the fan shroud for cooling.
-
Prime before starting. Fill the pump basket with water before switching on and never run the pump dry. The pump runs on High for 5 minutes at start-up to prime.
-
Hand-tight unions. Tighten barrel unions by hand only and don't use green "P" plumber's glue on them.
❓ Common Questions
-
What speed should I use? Eco for everyday filtration (typically about 8 hours a day), Medium for gentle spa jets and most suction cleaners, and High for backwashing, vacuuming and water features.
-
How much can it save? Oasis rates the V Series at up to 70% lower electricity use than a regular single speed pump.
-
Is it noisy? No, the DC motor runs at around 50 dB(A) on low speed.
📂 Downloads and Support
🚚 Shipping
🛡️ Warranty Information
Limited 3 year warranty from Sunlover / Oasis: 3 years on the pump body and seal plate and 2 years on the motor. Routine maintenance items (O-rings, gaskets and mechanical seal) are not covered. Commercial installations: 6 months parts and in-field labour.
