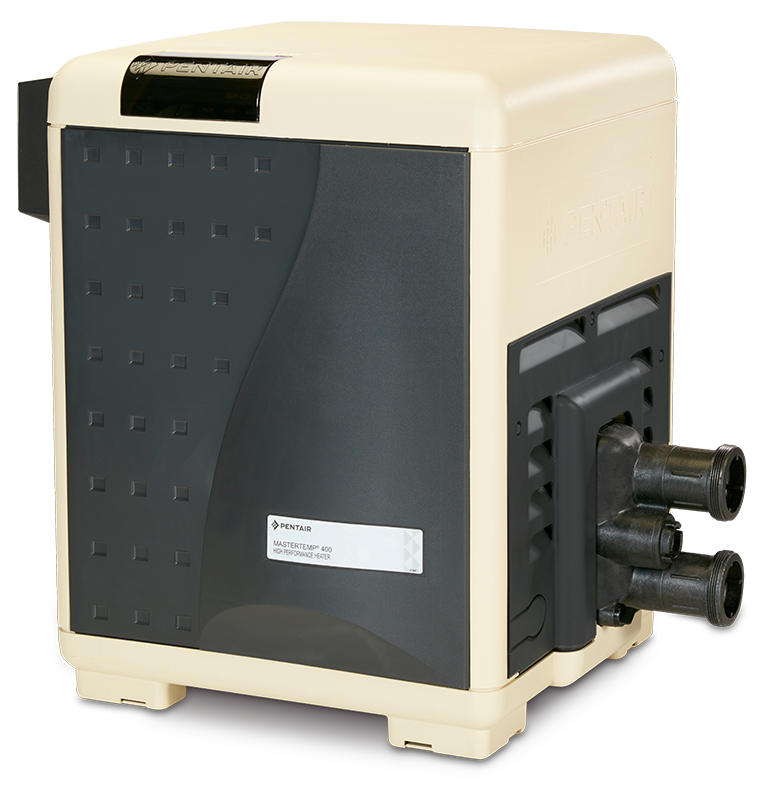

Pentair MasterTemp Natural Gas Pool Heater
🏷️ Brand
Pentair
📝 Description
The Pentair MasterTemp HD is a natural gas pool and spa heater available in 200 MJ, 300 MJ and 400 MJ models (200HD, 300HD and 400HD), with a heavy duty cupro-nickel heat exchanger, a fully pre-mixed low NOx burner, an LCD display and a rustproof composite cabinet certified for outdoor and indoor installation.
A gas heater is the fastest way to heat a pool or spa, and it only uses gas while it is running, which makes the MasterTemp a good choice if you heat occasionally or want your spa hot quickly. The fully pre-mixed air and gas system gives faster heat-up, and the burner is certified for low NOx emissions.
The rotating digital display shows front-facing error messages and icons for simple diagnostics, and the LCD control board is backwards compatible with earlier MasterTemp models. The heater is quiet, has a small footprint and a rotatable lid that helps when fitting it into a tight space.
📦 Parts Included
- 1x Pentair MasterTemp HD gas heater (model as selected), natural gas
- 2x Integral 50 mm PVC slip unions
- 1x 240V power cord with 10A plug
- 1x Accessory bag
- 1x Owner's manual and warranty registration card
⚙️ Specifications & Compatibility
-
SKU: SPG001 (200MJ) / SPG002 (300MJ) / SPG003 (400MJ)
-
Pentair model and part number: 200HD 460946 / 300HD 460945 / 400HD 460944
-
Gas input: 200 MJ/h, 300 MJ/h or 400 MJ/h
-
Gas type: natural gas
-
Heat exchanger: heavy duty (HD) cupro-nickel
-
Efficiency: 82%
-
Minimum water flow: 76 L/min (200), 114 L/min (300), 152 L/min (400)
-
Maximum water flow: 454 L/min (a manual bypass valve is needed above this)
-
Water connections: 50 mm PVC via integral slip unions
-
Gas pipe size from meter (0-15 m / 16-30 m / 31-60 m): 200 25/32/32 mm, 300 32/32/40 mm, 400 32/40/50 mm
-
Electrical: 240V AC, 50Hz, single phase, 10A power cord supplied
-
Spa set point: up to 40°C
-
Installation: certified for outdoor and indoor installation
*Images are for illustration purposes only. The actual product may differ from the image. Please read the product description and included parts for full details.
💡 Before You Buy
-
Gas supply and pipe size. Check your gas meter capacity and the pipe size needed for the distance from the meter (see Specifications). The gas line must be sized for the heater and the length of the run.
-
Licensed installation. In Australia the gas connection must be done by a licensed gas fitter and any fixed electrical work by a licensed electrician.
-
Placement. Keep the heater at least 3.5 m from the inside of the pool or spa unless there is a solid barrier between them, keep the vent at least 1500 mm from building openings, and allow 150 mm clearance around the cabinet.
-
Natural gas only. These three models are natural gas. LPG (propane) MasterTemp heaters are separate models.
❓ Common Questions
-
Which size do I need? A bigger heater heats faster. Choose by your pool or spa volume and how quickly you want it warm; the 400 MJ model heats the same water in half the time of the 200 MJ model.
-
Can it heat a spa? Yes. MasterTemp heaters suit pools and spas, with a spa set point of up to 40°C.
-
Will it work with a variable speed pump? Yes, as long as the pump speed keeps flow above the heater's minimum: 76 L/min for the 200, 114 L/min for the 300 and 152 L/min for the 400.
-
Can it be installed indoors? Yes, the MasterTemp is certified for indoor and outdoor installation; indoor installs need the correct flue and ventilation set out in the manual.
📂 Downloads and Support
🚚 Shipping
- Large / Bulky or Oversized
- Special Order Item - Please allow an additional 3-5 working days for shipping
- Review all shipping rates
🛡️ Warranty Information
Covered by the Pentair limited factory warranty. Full terms are on the warranty registration card supplied with the heater. The heater must be installed and operated as set out in the owner's manual.
