Zodiac Titan 40mm Top Mount Multiport Valve
🏷️ Brand
Zodiac
📝 Description

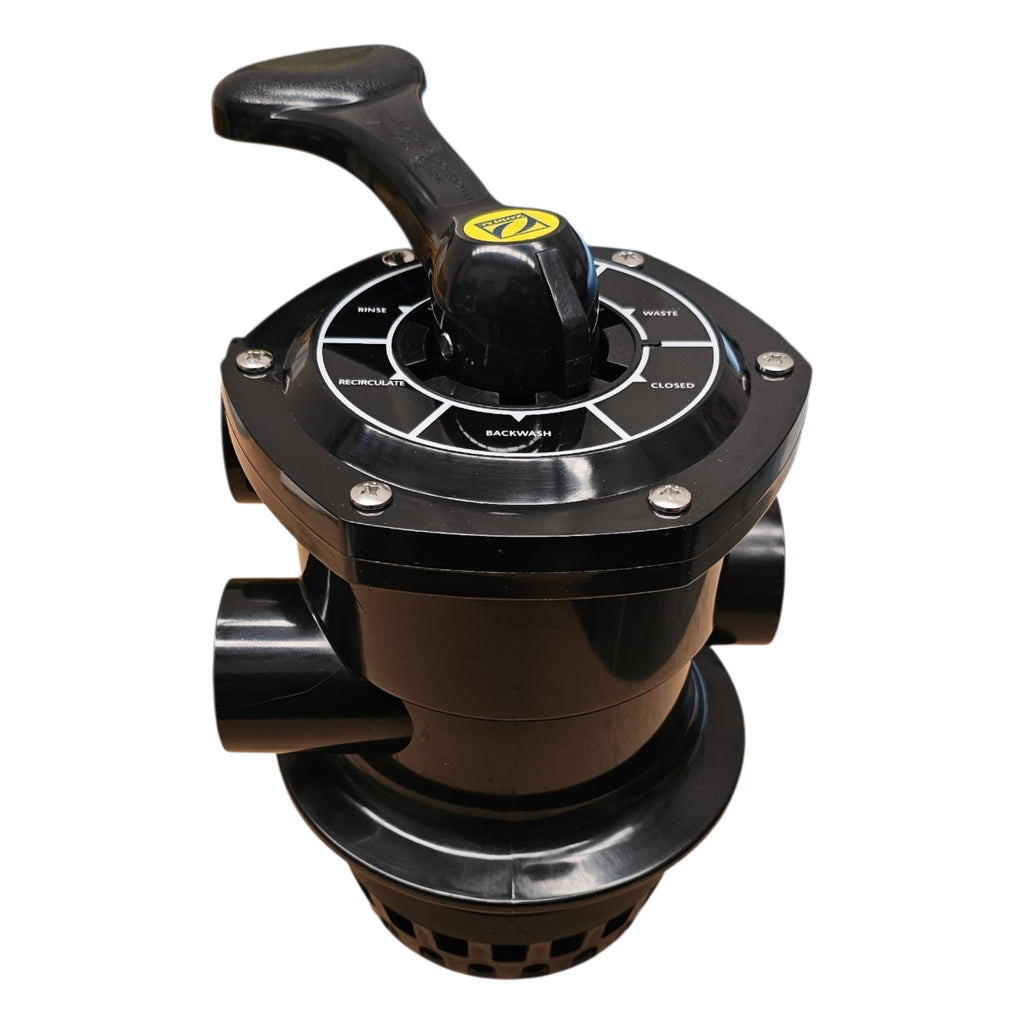

The Zodiac W88280105 is the genuine 40mm top mount multiport valve for Zodiac Titan ZT500 to ZT650 fibreglass sand filters, with six positions: Filter, Backwash, Rinse, Waste, Recirculate and Closed.
It sits on top of the filter tank and directs water through the filter for each operation. Zodiac's parts diagrams also list it for the APV650 fibreglass filter and the discontinued Titan TP500 to TP700 thermoplastic sand filters.
📦 Parts Included

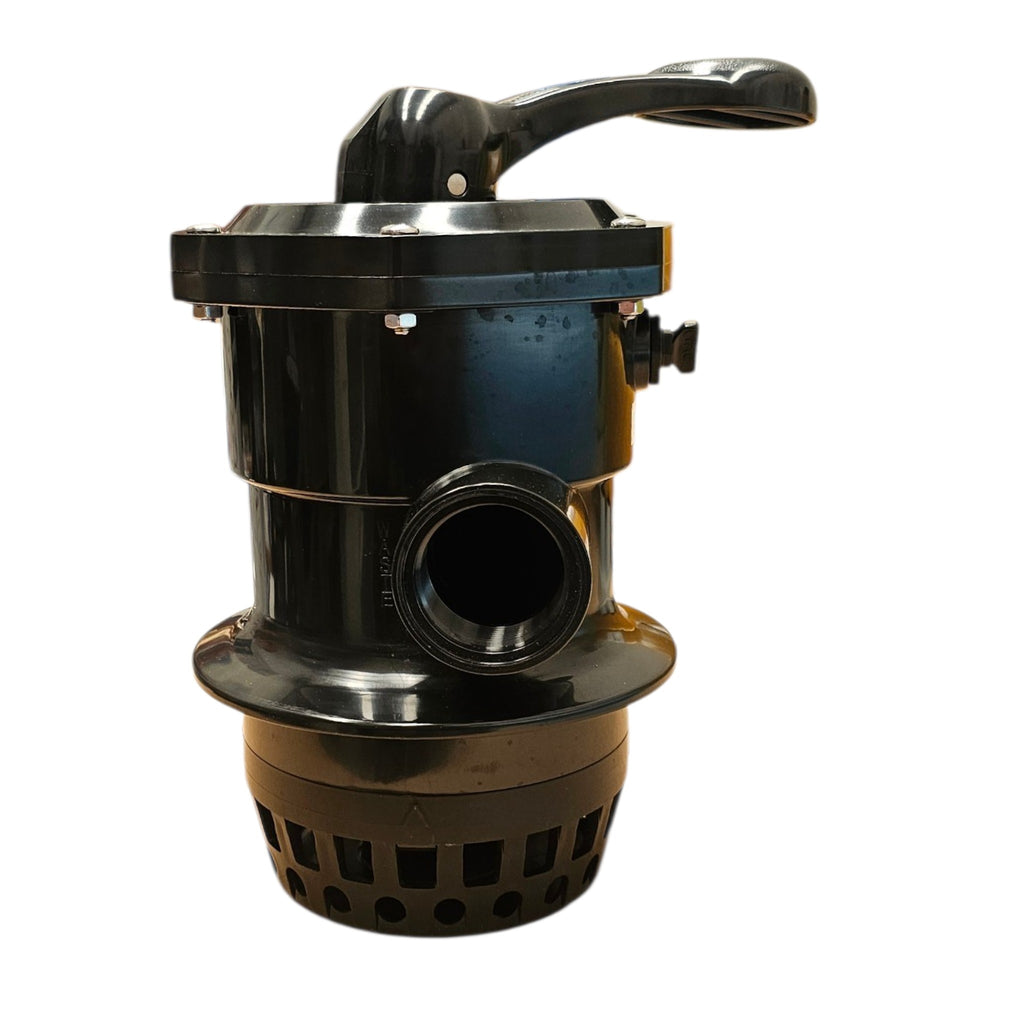

- 1x Zodiac Titan 40mm top mount multiport valve
- Not included: All attachments, orings, fittings, pressure guages, etc. This is just the Multi-port valve with handle (as pictured).
📐 Measurements
Measurements are approximate.
-
Port size: 40 mm
-
Weight (packed): 3 kg
⚙️ Specifications & Compatibility
-
Brand: Zodiac (genuine, Fluidra)
-
SKU: W88280105
-
Type: Top mount multiport valve
-
Port size: 40mm
-

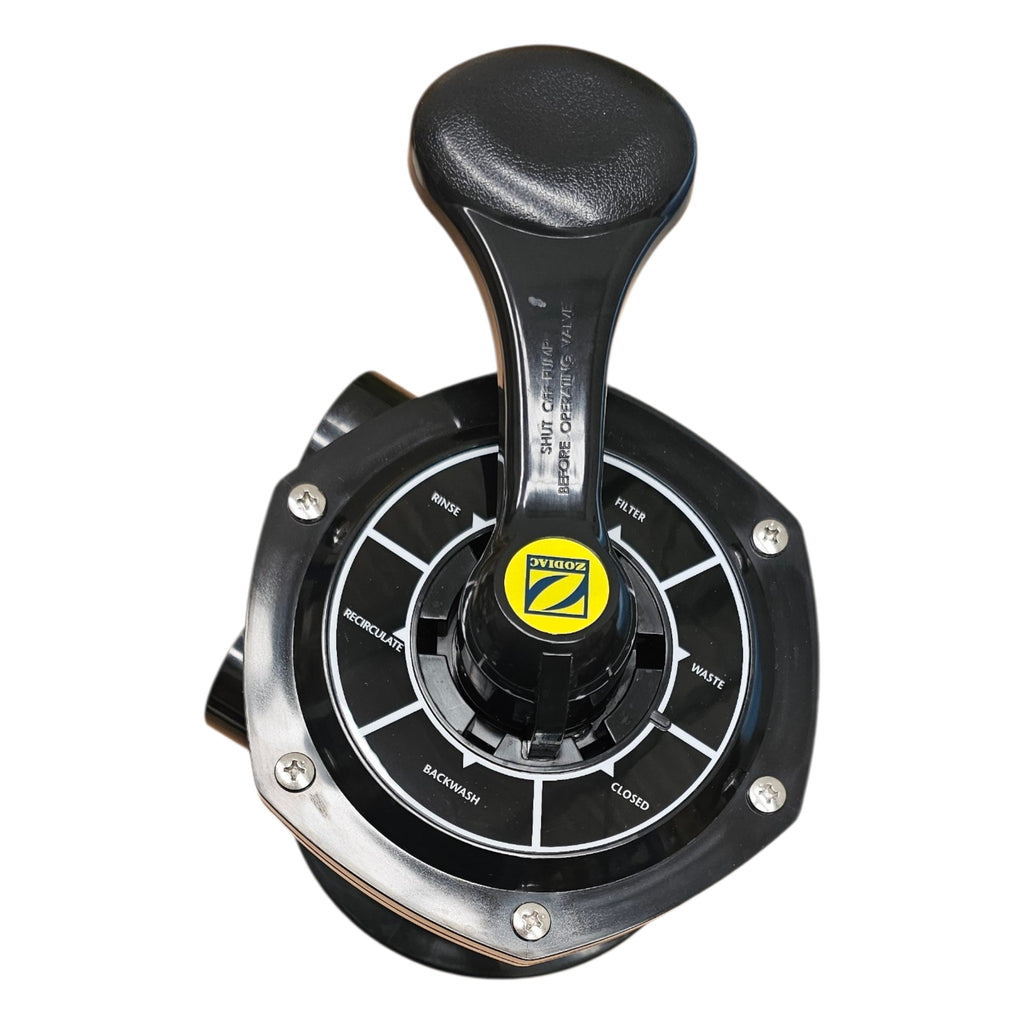

Positions: Filter, Backwash, Rinse, Waste, Recirculate, Closed
-
Suits: Zodiac Titan ZT500 to ZT650 fibreglass sand filters (40mm)
-
Also listed for: Zodiac APV650 fibreglass filter, Titan TP500 to TP700 thermoplastic sand filters
-
Not included: Valve to tank O-ring, clamp, barrel unions, pressure gauge
💡 Before You Buy
-
Check your port size. This valve has 40mm ports. Titan filters with 50mm valves, such as the Titan ZT650B 50mm, need the 50mm valve instead.
-
What's not in the box. The valve comes on its own. The valve to tank O-ring, clamp, barrel unions and pressure gauge are not included, so reuse yours or replace them separately.
-
Look-alike valves. Several top mount valves look similar but are not interchangeable. Check your filter model on the tank label before ordering.
❓ Common Questions
-
Does it come with barrel unions? No. Barrel unions, the pressure gauge, clamp and valve to tank O-ring are not included.
-
Which filters does it fit? Zodiac Titan ZT500 to ZT650 fibreglass sand filters with 40mm valves. Zodiac also lists it for the APV650 and the older Titan TP500 to TP700.
-
Is this a genuine Zodiac valve? Yes, it is genuine Zodiac part W88280105, supplied by Fluidra.
📂 Downloads and Support
🚚 Shipping
🛡️ Warranty Information
Covered by a standard 12 month manufacturer warranty. See Zodiac warranty for details.
