Oasis Smart Pool and Spa Wi-Fi Control System
š·ļø Brand
Oasis (Sunlover Group)
š Description

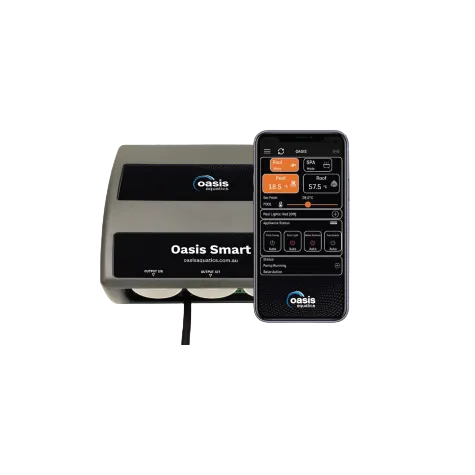

The Oasis Smart (OSC001) is a Wi-Fi pool and spa automation controller from the Sunlover Group that runs your filter pump, sanitiser, heating, lights, water features and valves from a phone app, with two built-in 240V outlets, four valve actuator outputs and room for two expansion units.
Turn the heater up, switch the lights on or start the water feature from your phone, set cleaning and filtration schedules, or have the pool ready before you get home. The controller plugs into a standard power point and gives you up to four filtration times, variable speed pump control, heater control, a pump call function and a water temperature sensor. The Oasis Smart app is available for iOS and Android.
Need more outlets? Add up to two Oasis Smart Expansion Packs (three outlets each). For automatic pH and chlorine (ORP) control, add the Oasis SmartChem pH and ORP Dosing Controller.
š¦ Parts Included
- 1x Oasis Smart master controller (OSC001)
- 1x Mounting bracket with screws and wall plugs
- 1x Installation and operation manual
š Measurements
Measurements are approximate.
-
Height: 160 mm
-
Width: 200 mm
-
Power cable: 1.8 m
āļø Specifications & Compatibility
-
SKU: OSC001
-
Outlets: 2x 240V sockets (combined maximum 9.98 A / 2395 W)
-
Valve actuator outputs: 4 (24VA maximum; two valves run at once)
-
Other connections: heater interlock (extra low voltage, 24V 1A maximum), pump call, VF contact for a gas heater or heat pump, two sensor ports
-
Expansion: up to 2 expansion units with 3 sockets each (8 sockets in total)
-
Filtration: up to four filtration times
-
Pumps: single speed, or multi speed from Theralux, Reltech, Pentair VS/F, DAB, Insnrg or Henden
-
Heating: solar (separate, valve or boosted), heat pump, gas heater
-
Lights: AquaQuip, Aquatight, Spa Electrics ModLite and Multi Plus, Astral Pool or single colour lights (up to 3 light sockets)
-
Wi-Fi security: open, WEP, WPA, WPA2, WPA/WPA2 PSK and WPA2 Enterprise
-
Power: plugs straight into a standard power point (not an extension lead)
-
Protection rating: IP33
*Images are for illustration purposes only. The actual product may differ from the image. Please read the product description and included parts for full details.
š” Before You Buy
-
Count your equipment. The master controller has 2 outlets. If you have more than two pieces of 240V equipment (pump, chlorinator, lights, heating pump, cleaner pump, blower), add one or two Oasis Smart Expansion Packs.
-
Check your pump. Speed control works with the multi speed pump brands listed in the Specifications. Other pumps are simply switched on and off.
-
Check your Wi-Fi. Your home Wi-Fi needs to reach the equipment area. Wi-Fi passwords containing a tilde (~) or backslash (\) are not supported.
-
Heaters with 240V switching. The heater interlock is extra low voltage only. A heater with a 240V flow or pressure switch circuit needs an external relay fitted by a licensed electrician.
š§ Our Tips
-
Pick the right spot. Mount the controller on a solid surface out of direct weather, at least 3 m from the water's edge and at least 600 mm above the ground.
-
Keep chemicals away. Store pool chemicals at least 3 m from the controller and the rest of your pool equipment.
-
Roof sensor position. If you run solar, fit the roof sensor no more than 50 cm from the roof gutter.
ā Common Questions
-
Can it control my heat pump or gas heater? Yes. It supports heat pumps, gas heaters and solar heating, and the dual heater expansion packs let it control two separate heaters.
-
How many lights can I control? Up to 3 sockets can be allocated to pool or spa lights.
-
Can it control pH and chlorine? Yes, when you add the Oasis SmartChem pH and ORP Dosing Controller.
-
How many valves can it run? Four valve actuators. Two move at a time, and a third or fourth follows after a 40 second delay.
š Downloads and Support
š Shipping
š”ļø Warranty Information
Covered by a limited 3 year back-to-base warranty from Sunlover / Oasis against component failure or faulty workmanship. On-site labour, travel and routine maintenance items are not covered.
