Oasis SmartChem pH and ORP Dosing Controller
š·ļø Brand
Oasis (Sunlover Group)
š Description

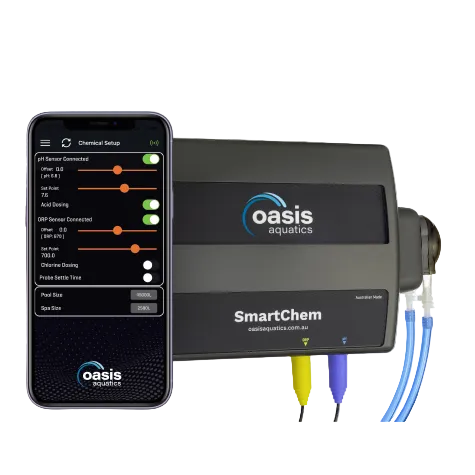

The Oasis SmartChem is an automatic pool water chemistry controller that adds on to the Oasis Smart system: it holds your pool's pH by dosing acid through a peristaltic pump and, on the AC1 model, controls chlorine by switching the chlorinator on and off from an ORP sensor reading 300 to 800 mV.
Set the pH and ORP targets in the Oasis Smart app and SmartChem does the rest. It doses pool acid only when the pH needs correcting, and turns the chlorinator on or off to keep sanitiser in range. That means far less manual testing and corrective dosing, and you can see your sanitiser and pH levels in the app.
Choose the AC1 for pH and ORP (chlorine) control, or the AC1-pH for pH control only. Both need an Oasis Smart Pool & Spa Wi-Fi Control System (OSC001).
š¦ Parts Included
- 1x SmartChem expansion unit with peristaltic pump and squeeze tube fitted
- 1x pH sensor, plus 1x ORP sensor (AC1 only)
- 1x Sensor manifold and 1x dosing manifold for 50 mm pipe
- 1x Two-core power cable
- 1x Communication cable
- 1x Acid dosing tube, 5 m
- 1x Acid tubing, 5 m (more is available separately: Oasis SmartChem Additional Acid Feed Hose 4m (SL0131))
- 1x Acid tube check valve
- 1x Acid drum connecting kit (lids, pick-up tube, through-wall breather connector)
- Manifold blanking caps
- 1x pH probe cleaning tool
āļø Specifications & Compatibility
-
SKU (pH & ORP Control): AC1
-
SKU (pH Control Only): AC1-pH
-
pH reading range: 5.5 to 8.5
-
ORP reading range: 300 to 800 mV (AC1)
-
Dosing: peristaltic pump, diluted hydrochloric acid
-
Power: 24 VAC from a spare valve actuator port on the Oasis Smart master controller
-
Pipe size: manifolds suit 50 mm pipe (reducing bushes needed for 40 mm pipe)
-
Protection rating: IP33
-
Requires: Oasis Smart master controller (OSC001); for ORP control, a chlorinator switched by the Oasis Smart
-
Works with: Oasis Smart Control System and Oasis CX Premium Salt & Mineral Chlorinator
*Images are for illustration purposes only. The actual product may differ from the image. Please read the product description and included parts for full details.
š” Before You Buy
š§ Our Tips
-
Dilute your acid. Use hydrochloric acid diluted 2:1 to 3:1 (water to acid). Always add acid to water, never water to acid. Undiluted acid damages the hoses and squeeze tube and that damage is not covered by warranty.
-
Get the manifolds in the right order. Fit the sensor manifold horizontally after the filter and before any heater take-off or chlorinator cell. Fit the dosing manifold after the chlorinator and before any selectable valves.
-
Mount it with room to work. Mount the controller at least 3 m from the water's edge and 600 mm above the ground, to the right of nearby equipment so you can get at the squeeze tube.
-
Keep acid away from equipment. Keep the acid drum and its breather at least 1.8 m from the controller and other pool equipment, and well away from heat pumps.
-
Warm the tube ends. Soak tube ends in hot water for 30 seconds to make them easier to push onto the barbs.
ā Common Questions
-
What's the difference between AC1 and AC1-pH? The AC1 controls both pH and chlorine (ORP). The AC1-pH controls pH only.
-
What ORP should I aim for? Oasis gives 650 to 750 mV as the ideal range for a pool.
-
How often does it need servicing? Check the acid level fortnightly, check the check valve and feed tube every 3 months, clean and recalibrate the probes every 6 months, and replace the squeeze tube every 12 months.
-
Does it dose straight after the pump starts? No. If probe settle time is enabled, dosing waits 30 minutes after the pump starts, then doses every five minutes until the pH target is reached.
š Downloads and Support
š Shipping
š”ļø Warranty Information
The controller is covered by a limited 3 year back-to-base warranty from Sunlover / Oasis against manufacturing defects. pH and ORP probes carry 12 months. On-site labour, travel and routine maintenance items such as squeeze tubes are not covered.
