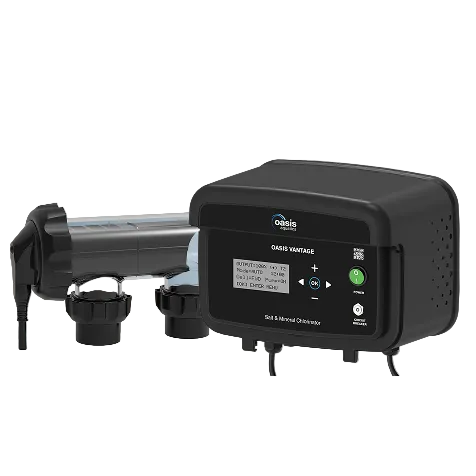

Oasis Vantage Salt and Mineral Chlorinator
š·ļø Brand
Oasis (Sunlover Group)
š Description
The Oasis Vantage is a salt and mineral pool chlorinator from the Sunlover Group in 15, 25 and 35 g/hr models (VA15, VA25, VA35) for pools up to 80,000 L, with a compact IP34 power pack, an acrylic weather shield and a quick connect self-cleaning titanium cell.
The Vantage is built to be quick to install and simple to run. It reverses polarity to clean the cell on an adjustable cycle, has single or dual timer cycles with a battery backup, shows water flow and high or low salt, and regulates itself if the salt level is high. It suits all pool surfaces and can be fitted to a new or existing pool.
It also has chlor boost, spa and backwash modes, and a pH control mode for an optional Oasis pH Logix acid doser. For larger pools or a low salt model, see the Oasis CX Premium Salt & Mineral Chlorinator.
š¦ Parts Included
- 1x Oasis Vantage power pack (model as selected)
- 1x Cell housing with unions and cell
- 1x Wall mounting bracket with level
- 2x 50 mm to 40 mm reducing bushes
- 2x Wall plugs with screws
- 1x Installation and operation manual
š Measurements
Measurements are approximate.
-
Weight: VA15 6.30 kg; VA25 6.35 kg; VA35 7.40 kg
-
Dimensions (VA15): 360 L x 330 W x 180 H mm
āļø Specifications & Compatibility
-
SKU: VA15, VA25, VA35
-
Chlorine output: VA15 15 g/hr; VA25 25 g/hr; VA35 35 g/hr
-
Recommended maximum pool volume: VA15 35,000 L; VA25 55,000 L; VA35 80,000 L
-
Salt level: 3,500 to 4,000 ppm (3,500 ideal), minimum 3,000 ppm, maximum 4,500 ppm
-
Max pump size: 8 A
-
Power: plugs into a weatherproof, RCD-protected 10 A outlet; the filter pump plugs into the power pack
-
Protection rating: IP34
-
Cell cleaning: reverse polarity, adjustable from every 4 to 16 hours
-
Timer: single or dual cycles with battery backup
-
Heat pump override: yes, with an optional Heat Junction cable
-
Suits: all pool surfaces, salt or mineral pools
*Images are for illustration purposes only. The actual product may differ from the image. Please read the product description and included parts for full details.
š” Before You Buy
-
Size it to your pool. Pick the model by the recommended maximum pool volume in the Specifications. Bigger pools, hot climates and heavy use need more output.
-
Vantage or CX? The Vantage is the simpler option for pools up to 80,000 L. For 45 and 55 g/hr sizes or a low salt (1,500 ppm) model, choose the Oasis CX Premium Salt & Mineral Chlorinator.
-
Check your pump. The filter pump plugs into the power pack and must draw 8 A or less.
-
Using minerals? Mineral (magnesium chloride) blends are compatible but may need 20 to 30% more product than salt.
š§ Our Tips
-
Mount it vertically. Mount the power pack vertically on its bracket, at least 1 m above the ground, outside the pool zone and no more than 1.5 m from the cell.
-
Put the cell last in line. Install the cell housing horizontally in the return line, after the filter and any heater or heat pump. Use high-pressure PVC glue and no primer on the unions.
-
Hand-tight only. Tighten the cell locking ring by hand, and use silicone grease (not petroleum based) on the O-ring.
-
Tools you'll need. A drill with a 6 mm bit, a No. 2 Phillips screwdriver, a hacksaw, PVC glue and basic PVC fittings.
ā Common Questions
-
Why is chlorine output lower in winter? Output drops roughly 2 to 3% for every degree the water is below 28°C. Low salt, calcium on the cell and low flow also reduce output.
-
My filter pump runs all the time. Why? The pump is probably plugged into a wall outlet instead of the power pack. Plug it into the power pack and set the unit to AUTO.
-
How much salt do I need? About 3.5 kg per 1,000 L, so a new 50,000 L pool needs roughly 175 kg to reach 3,500 ppm.
-
How often should I test salt? Every 4 to 6 weeks, along with total alkalinity and stabiliser. Test chlorine and pH weekly.
š Downloads and Support
š Shipping
š”ļø Warranty Information
The power pack and cell are covered for 3 years or 10,000 cell hours, whichever comes first, on domestic installations (1 year on commercial installations) by Sunlover / Oasis. It is a back-to-base warranty for the original purchaser with proof of purchase. Running with low salt, incorrect installation or water entering the power pack voids the warranty.
