Oasis CX Premium Salt and Mineral Chlorinator
🏷️ Brand
Oasis (Sunlover Group)
📝 Description

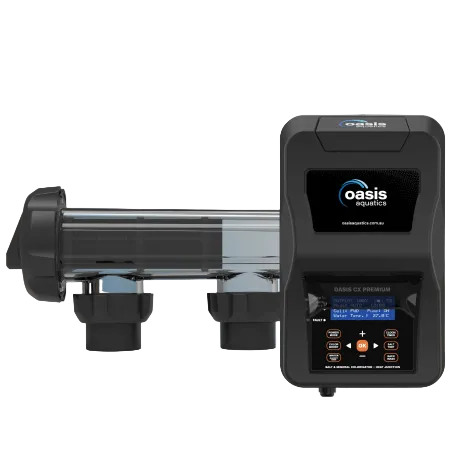

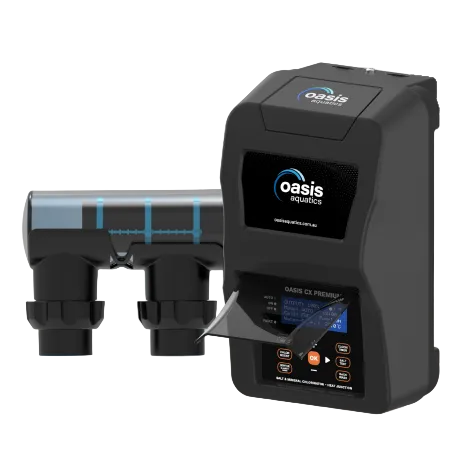

The Oasis CX Premium is a salt and mineral pool chlorinator from the Sunlover Group, made in 15, 25, 35, 45 and 55 g/hr models for pools up to 200,000 L, with a titanium quick connect self-cleaning cell, a pump outlet rated to 8 A and Low Salt (LS) models that run at around 1,500 ppm.
The CX looks after chlorine production for you. It reverses polarity to clean the cell, and has backwash, chlor boost (super chlorinate), spa and winter modes, single or dual timer cycles, a salt/TDS test, water flow protection and a battery backup timer, all shown on a backlit display.
Pool Blanket and Winter Mode turns chlorine output down while the cover is on. The Heat Junction / chlorinator override function stops the pool being over-chlorinated during long heat-up times, so a heater can be plumbed in line on a one pump system when the CX is paired with the Sunlover Heat Junction 5 (HJ5).
Standard CX models run at 3,000 to 4,000 ppm salt. The LS (Freshwater Ultra Low Salt) models run at 1,200 to 1,800 ppm, which means far less salt or minerals to buy. Both types work with variable speed pumps and suit concrete, fibreglass, vinyl and tiled pools.
📦 Parts Included
- 1x Oasis CX power pack (model as selected)
- 1x Cell housing with unions and titanium cell
- 1x Wall mounting bracket with level
- 2x 50/40 mm reducing bushes
- 2x Wall plugs with screws
- 1x Installation and operation manual
⚙️ Specifications & Compatibility
-
SKU (standard salt): CX15, CX25, CX35, CX45, CX55
-
SKU (Low Salt): CX15-LS, CX25-LS, CX35-LS
-
Chlorine output: 15, 25, 35, 45 or 55 g/hr (the number in the model name)
-
Pool volume, standard models (cool climate / warm climate): CX15 50,000 / 35,000 L; CX25 85,000 / 55,000 L; CX35 120,000 / 80,000 L; CX45 160,000 / 105,000 L; CX55 200,000 / 130,000 L
-
Pool volume, Low Salt models (cool climate / warm climate): CX15-LS 40,000 / 22,000 L; CX25-LS 85,000 / 55,000 L; CX35-LS 120,000 / 80,000 L
-
Salt level, standard models: 3,000 to 4,000 ppm (3,500 ideal)
-
Salt level, LS models: 1,200 to 1,800 ppm (1,500 ideal)
-
Max pump size: 8 A
-
Max current including pump: 10 A
-
Power: plugs into a weatherproof, RCD-protected 10 A outlet; the filter pump plugs into the base of the power pack
-
Protection rating: IP23
-
Cell cleaning: reverse polarity, adjustable from every 4 to 16 hours
-
Compatible with: salt or mineral pools, variable speed pumps, concrete, fibreglass, vinyl and tiled pools
-
Works with: Sunlover Heat Junction 5 (HJ5), Oasis CX Logix pH control, and the Oasis SmartChem pH and ORP Dosing Controller
*Images are for illustration purposes only. The actual product may differ from the image. Please read the product description and included parts for full details.
💡 Before You Buy
-
Size by pool volume and climate. Use the cool or warm climate pool volume in the Specifications. Warm climates and heavily used pools need more output, so go up a size if you are close to the limit.
-
Standard or Low Salt? LS models run at about 1,500 ppm, standard models at about 3,500 ppm. Your pool's salt level has to match the model you choose.
-
Check your pump. The filter pump plugs into the power pack and must draw 8 A or less.
-
Heating on one pump? Pair the CX with the Sunlover Heat Junction 5 (HJ5). To connect both a Heat Junction and a pH Logix, add the Oasis Splitter Cable for CX Chlorinator, HJ & pH Logix (SL0130).
-
Simpler option. If you don't need a low salt model or the larger sizes, look at the Oasis Vantage Salt & Mineral Chlorinator.
🔧 Our Tips
-
Mount the power pack properly. Mount it vertically on the supplied bracket, at least 1 m above the ground and no more than 1.5 m from the cell, outside the pool zone, out of sun and rain and away from stored chemicals.
-
Put the cell last in line. Install the cell housing in the return line after the filter and any heater or heat pump. Don't use priming fluid on the cell housing.
-
Add the right amount of salt. Allow about 3.5 kg of salt per 1,000 L for standard models and about 1.5 kg per 1,000 L for LS models on a new pool.
-
Look after the O-ring. Use silicone grease on the cell O-ring, not petroleum jelly.
❓ Common Questions
-
How often should I test the water? Test chlorine and pH weekly, and salt, total alkalinity and stabiliser every 4 to 6 weeks.
-
My filter pump runs all the time. Why? The pump is probably plugged into a wall outlet instead of the base of the power pack. Plug it into the power pack and set the unit to AUTO.
-
Can I use minerals instead of salt? Yes, the CX is salt or mineral compatible.
-
Why does it show Water Temp Low? The CX reduces chlorine output when the water drops below 10°C, which is normal in winter.
📂 Downloads and Support
🚚 Shipping
🛡️ Warranty Information
The power pack and cell are covered for 4 years or 10,000 cell hours, whichever comes first, by Sunlover / Oasis. It is a back-to-base warranty for the original purchaser with proof of purchase. Incorrect installation, incorrect salt levels, water entering the power pack, poor ventilation or unauthorised repairs void the warranty.
