Supreme Heating Nova V2 Inverter Pool Heat Pump
🏷️ Brand
Supreme Heating
📝 Description
The Supreme Heating Nova V2 is a smart inverter pool heat pump for residential pools, available from 9 kW to 28 kW single phase, with a twin rotary compressor, a 3D titanium heat exchanger, a colour touch display, built-in Wi-Fi and a COP of up to 16.6.

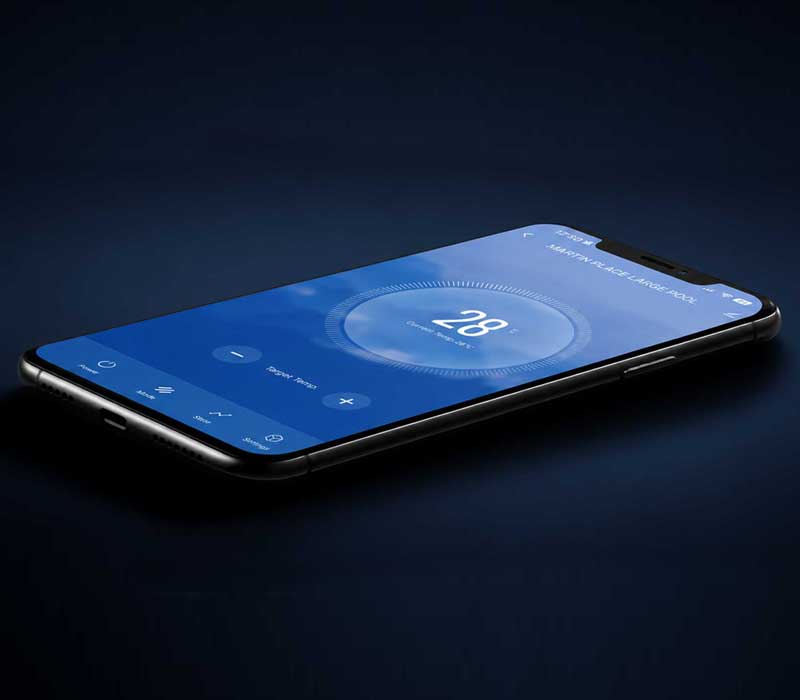

Nova V2 connects to Supreme Heating's online app, so you can control and monitor the heat pump from your phone with a Supreme login. IoT remote diagnostics let support look at the unit remotely, and OTA software updates keep it current. A solar PV-ready interface lets it make the most of free power from rooftop solar and cut running costs. Alexa and Google voice control work with the app.

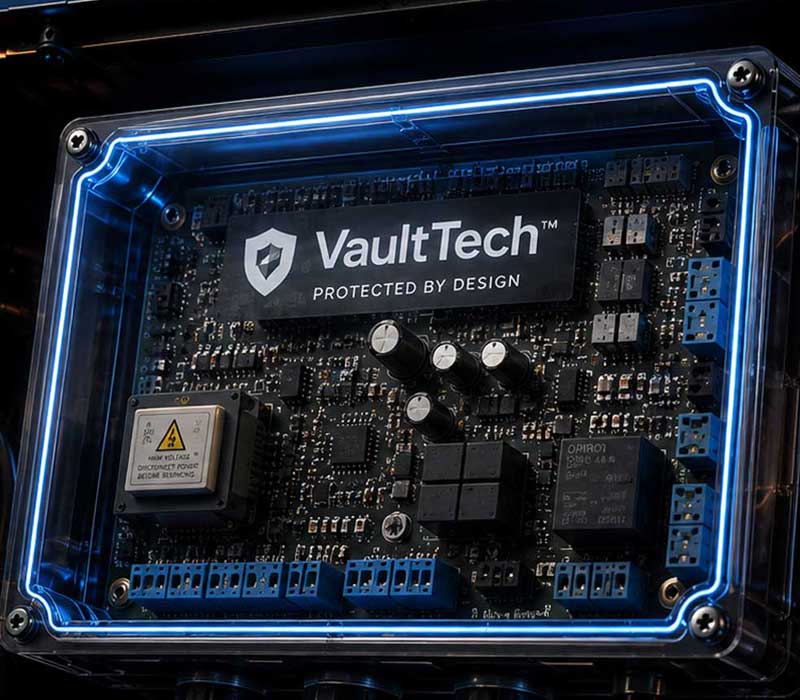

VaultTech sealed electronics protect the control board from moisture, dust and vermin, and a Gold-Fin coated evaporator adds corrosion protection for coastal and humid conditions.
It is built for Australian conditions with anti-rust internal components, vermin-resistant internal electronics, an ABS casing with fan guard and Supreme's OxyShield protection. The two smallest models plug into a standard 10A or 15A outlet, so no electrician is needed to connect power on those.
📦 Parts Included
- 1x Supreme Heating Nova V2 heat pump (model as selected)
- 1x full colour touch display controller (fitted)
- 1x user manual
📐 Measurements
Measurements are approximate.
- Nova V2 9 (L x W x H): 910 x 360 x 618 mm
- Nova V2 15 / 18 (L x W x H): 1002 x 391 x 654 mm
- Nova V2 21 / 25 / 28 (L x W x H): 1192 x 447 x 775 mm
- Net weight: 9: 37 kg, 15: 46 kg, 18: 48 kg, 21: 66 kg, 25: 71 kg, 28: 73 kg
- Water connections: 48.3 mm, to suit 40 mm pressure pipe
⚙️ Specifications & Compatibility
-
SKU: NOVAV2-9 / NOVAV2-15 / NOVAV2-18 / NOVAV2-21 / NOVAV2-25 / NOVAV2-28
-
Heating capacity (air 27°C, water 26°C): 9: 1.89–9.22 kW, 15: 3.22–15.25 kW, 18: 4.15–18.15 kW, 21: 4.34–21.08 kW, 25: 4.87–25.37 kW, 28: 5.13–28.01 kW
-
COP (air 27°C, water 26°C): 9: 16.61–7.15, 15: 16.15–7.21, 18: 16.21–7.14, 21: 16.34–7.18, 25: 16.11–7.05, 28: 15.78–6.98
-
Heating capacity (air 15°C, water 26°C): 9: 1.32–6.62 kW, 15: 2.25–11.05 kW, 18: 2.91–13.12 kW, 21: 3.04–14.95 kW, 25: 3.41–17.88 kW, 28: 3.59–19.61 kW
-
COP (air 15°C, water 26°C): 9: 8.8–5.01, 15: 8.29–5.05, 18: 8.59–5.03, 21: 8.66–5.04, 25: 8.54–5.01, 28: 8.36–4.99
-
Rated input power (air 27°C): 9: 0.11–1.29 kW, 15: 0.21–2.12 kW, 18: 0.26–2.54 kW, 21: 0.27–2.94 kW, 25: 0.30–3.60 kW, 28: 0.33–4.01 kW
-
Rated input current (air 27°C): 9: 6.51 A, 15: 11.32 A, 18: 14.21 A, 21: 16.7 A, 25: 18.28 A, 28: 24 A
-
Power supply: 240V / 50Hz / 1 phase
-
Circuit breaker / connection: 9: 10A plug, 15: 15A plug, 18: 20A, 21: 20A, 25: 25A, 28: 32A
-
Suggested pool volume (cold climate): 9: <20,000 L, 15: <30,000 L, 18: <40,000 L, 21: <50,000 L, 25: <60,000 L, 28: <80,000 L
-
Suggested pool volume (warm climate): 9: <30,000 L, 15: <40,000 L, 18: <50,000 L, 21: <60,000 L, 25: <70,000 L, 28: <100,000 L
-
Advised flow rate: 9: 70 L/min, 15: 110 L/min, 18: 130 L/min, 21: 160 L/min, 25: 180 L/min, 28: 200 L/min
-
Noise level at 1 m: 9: 42–52 dBA, 15: 44–54 dBA, 18: 45–55 dBA, 21: 45–56 dBA, 25: 45–57 dBA, 28: 45–58 dBA
-
Noise level at 10 m: 9: <31 dBA, 15: <34 dBA, 18: <35 dBA, 21: <36 dBA, 25: <37 dBA, 28: <38 dBA
-
Compressor: Twin rotary inverter
-
Refrigerant: R32
-
Heat exchanger: 3D titanium
-
Casing: Black ABS
-
Controller: IoT/OTA full colour touch display with built-in Wi-Fi and Supreme online app
-
Solar: PV-ready interface
-
Voice control: Alexa and Google
-
Protection: VaultTech sealed electronics, OxyShield, Gold-Fin coated evaporator
-
Inverter technology: TurboSilence
💡 Before You Buy
-
Pick the right size. Heat pump size depends on your pool volume, location and whether you use a pool cover. A blanket or cover greatly reduces heat loss and running costs.
-
Check your power supply. The Nova V2 9 needs a 10A outlet and the Nova V2 15 a 15A outlet. The 18, 21, 25 and 28 are hardwired and must be connected by a licensed electrician.
-
Plumbing. The heat pump is plumbed into your filtration return line with 48.3 mm connections to suit 40 mm pressure pipe, at the advised flow rate for the model.
-
Want more efficiency? See the premium Supreme Heating VProX (COP up to 30, R290 refrigerant).
❓ Common Questions
-
Can I control it from my phone? Yes. Nova V2 has built-in Wi-Fi and connects to Supreme Heating's online app using a Supreme login.
-
Does it work with voice assistants? Yes, Nova V2 supports Alexa and Google voice control through the Wi-Fi app.
-
Is it solar PV ready? Yes, it has a solar PV-ready interface so it can make better use of free rooftop solar power.
-
What warranty does it have? 30 years limited on the titanium heat exchanger element, 5 years on the compressor and 2 years on parts.
-
Do I need an electrician? The Nova V2 9 and 15 plug into a suitable outlet. The larger models are hardwired and must be connected by a licensed electrician.
📂 Downloads and Support
🚚 Shipping
- Large / Bulky or Oversized
- Special Order Item - Please allow an additional 3-5 working days for shipping
- Review all shipping rates
🛡️ Warranty Information
Supreme Heating limited warranty: 30 years on the titanium heat exchanger element, 5 years on the compressor and 2 years on parts. Full terms are in the Nova V2 user manual and on the Supreme Heating warranty page.
