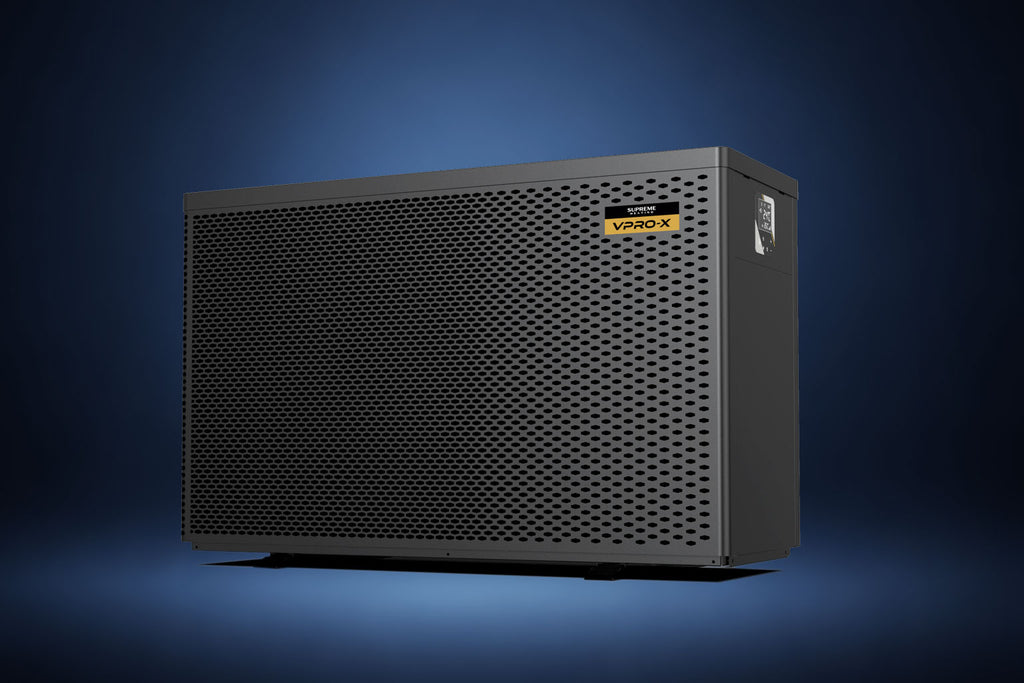

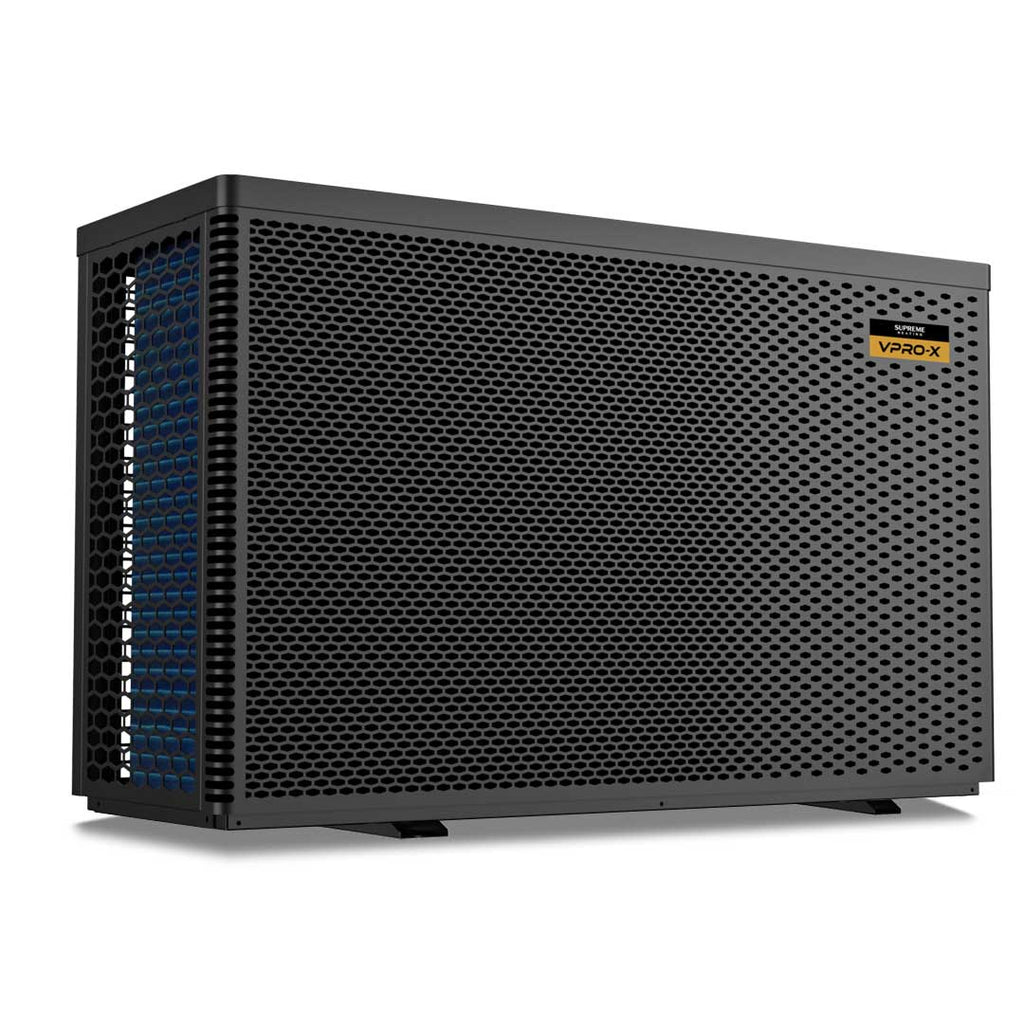

Supreme Heating VProX Inverter Pool Heat Pump
🏷️ Brand
Supreme Heating
📝 Description
The Supreme Heating VProX is Supreme's premium inverter pool heat pump, with a COP of up to 30, R290 natural refrigerant, 130% Turbo Boost and a twin-rotary DC inverter compressor, available from 10 kW to 40 kW in single phase and three phase models.
VProX connects to the iGarden app for control from anywhere, with live monitoring, AI automation and AI voice control. IoT technology gives real-time system monitoring and remote support, and the titanium heat exchanger resists corrosion while transferring heat efficiently. Supreme says the high efficiency can cut running costs by up to 80% compared with a conventional on/off heat pump.
TurboSilence inverter technology keeps it quiet, and a tough aluminium alloy cabinet with a protected internal frame and a triple-layer OxyShield finish is engineered for harsh Australian conditions. Optimised airflow gives faster heating and consistent performance. The smaller models plug into a 10A or 15A outlet, while the larger models are hardwired.
📦 Parts Included
- 1x Supreme Heating VProX heat pump (model as selected)
- 1x user manual
📐 Measurements
Measurements are approximate.
- Size (L x W x H): 10: 923 x 427 x 661 mm, 12: 1120 x 427 x 661 mm, 14: 1120 x 427 x 661 mm, 19: 1160 x 427 x 760 mm, 22: 1146 x 536 x 955 mm, 26: 1146 x 536 x 955 mm, 32: 1315 x 536 x 1060 mm, 40T: 1397 x 536 x 1249 mm
- Net weight: 10: 67 kg, 12: 74 kg, 14: 75 kg, 19: 86 kg, 22: 110 kg, 26: 113 kg, 32: 145 kg, 40T: 186 kg
- Water connections: 48.3 mm, to suit 40 mm pressure pipe
⚙️ Specifications & Compatibility
-
SKU: VPROX-10 / VPROX-12 / VPROX-14 / VPROX-19 / VPROX-22 / VPROX-26 / VPROX-32 / VPROX-40T
-
Advised pool volume: 10: 20–35 m³, 12: 25–40 m³, 14: 30–50 m³, 19: 40–65 m³, 22: 45–75 m³, 26: 55–90 m³, 32: 65–105 m³, 40T: 75–120 m³
-
Heating capacity, Turbo mode (air 26°C, water 26°C): 10: 10 kW, 12: 12 kW, 14: 14 kW, 19: 19 kW, 22: 22 kW, 26: 26 kW, 32: 32 kW, 40T: 40 kW
-
Heating capacity, Smart mode (air 26°C, water 26°C): 10: 7.8 kW, 12: 8.6 kW, 14: 11.5 kW, 19: 15 kW, 22: 17.2 kW, 26: 21.7 kW, 32: 26.6 kW, 40T: 33.5 kW
-
COP (air 26°C, water 26°C): 10: 21.2–7.4, 12: 30.0–7.5, 14: 21.5–7.4, 19: 22.1–7.1, 22: 26.0–7.3, 26: 20.3–7.2, 32: 21.3–7.1, 40T: 20.7–7.1
-
Heating capacity, Turbo mode (air 15°C, water 26°C): 10: 6.5 kW, 12: 8.1 kW, 14: 9 kW, 19: 13 kW, 22: 15.4 kW, 26: 17.5 kW, 32: 21.7 kW, 40T: 27.6 kW
-
Heating capacity, Smart mode (air 15°C, water 26°C): 10: 5.3 kW, 12: 6.1 kW, 14: 7.4 kW, 19: 10.2 kW, 22: 12.1 kW, 26: 14.5 kW, 32: 18 kW, 40T: 23 kW
-
COP (air 15°C, water 26°C): 10: 7.7–5.3, 12: 10.6–5.4, 14: 7.8–5.1, 19: 8.0–4.9, 22: 8.9–5.2, 26: 7.7–5.3, 32: 8.1–5.2, 40T: 7.9–4.8
-
Heating capacity, Turbo mode (air 7°C, water 26°C): 10: 5 kW, 12: 6.6 kW, 14: 7.3 kW, 19: 11.1 kW, 22: 12.3 kW, 26: 15 kW, 32: 17.7 kW, 40T: 22.1 kW
-
Cooling capacity (air 35°C, water 28°C): 10: 4.6 kW, 12: 5.3 kW, 14: 6.3 kW, 19: 9.6 kW, 22: 11.1 kW, 26: 12.3 kW, 32: 14.4 kW, 40T: 18.4 kW
-
Sound pressure at 1 m: 10: 36.9–43.9 dB(A), 12: 38.1–45.4 dB(A), 14: 38.1–46.3 dB(A), 19: 41.9–47.9 dB(A), 22: 42.2–49.9 dB(A), 26: 41.1–50.3 dB(A), 32: 42.5–50.9 dB(A), 40T: 41.8–51.9 dB(A)
-
Sound pressure at 10 m: 10: 16.9–23.9 dB(A), 12: 18.1–25.4 dB(A), 14: 18.1–26.3 dB(A), 19: 21.9–27.9 dB(A), 22: 22.2–29.9 dB(A), 26: 21.1–30.3 dB(A), 32: 22.5–30.9 dB(A), 40T: 21.8–31.9 dB(A)
-
Rated input power (air 15°C): 10: 0.14–1.23 kW, 12: 0.12–1.5 kW, 14: 0.19–1.76 kW, 19: 0.26–2.65 kW, 22: 0.27–2.96 kW, 26: 0.38–3.3 kW, 32: 0.44–4.17 kW, 40T: 0.58–5.75 kW
-
Rated input current (air 15°C): 10: 0.61–5.35 A, 12: 0.52–6.52 A, 14: 0.83–7.65 A, 19: 1.13–11.52 A, 22: 1.17–12.87 A, 26: 1.65–14.35 A, 32: 1.91–18.13 A, 40T: 0.84–8.3 A
-
Power supply: 230V / 1 phase / 50Hz (40T: 400V / 3 phase / 50Hz)
-
Circuit breaker / connection: 10: 10A plug, 12: 10A plug, 14: 10A plug, 19: 15A plug, 22: 20A, 26: 25A, 32: 25A, 40T: 15A
-
Set temperature range: 5–40°C
-
Compressor: Twin-rotary DC inverter
-
Refrigerant: R290
-
Heat exchanger: "Lightning" 3D titanium
-
Casing: Aluminium alloy with OxyShield protection
-
Control: iGarden app with AI automation, AI voice control and IoT connectivity
-
Inverter technology: TurboSilence
💡 Before You Buy
-
Pick the right size. Match the advised pool volume to your pool and use a pool cover to reduce heat loss and running costs.
-
Check your power supply. VProX 10, 12 and 14 need a 10A outlet and the 19 a 15A outlet. The 22, 26 and 32 are hardwired single phase, and the 40T is hardwired three phase. Hardwiring must be done by a licensed electrician.
-
R290 refrigerant. VProX uses R290, a natural low-impact refrigerant.
-
Other ranges. See the Nova V2 for a smart, connected heat pump at a lower price.
❓ Common Questions
-
What does COP 30 mean? COP is the ratio of heat delivered to electricity used. At best, VProX can deliver up to 30 units of heat for every unit of electricity.
-
Can I control it remotely? Yes, through the iGarden app with live monitoring, AI automation and AI voice control.
-
What is Turbo Boost? A 130% heating capacity mode for faster heat-up.
-
Do I need an electrician? The VProX 10, 12, 14 and 19 plug into a suitable outlet. The larger models are hardwired and must be connected by a licensed electrician.
📂 Downloads and Support
🚚 Shipping
- Large / Bulky or Oversized
- Special Order Item - Please allow an additional 3-5 working days for shipping
- Review all shipping rates
🛡️ Warranty Information
Supreme Heating offers up to a 30 year limited warranty on selected VProX components. Full terms are in the VProX user manual and on the Supreme Heating warranty page.
