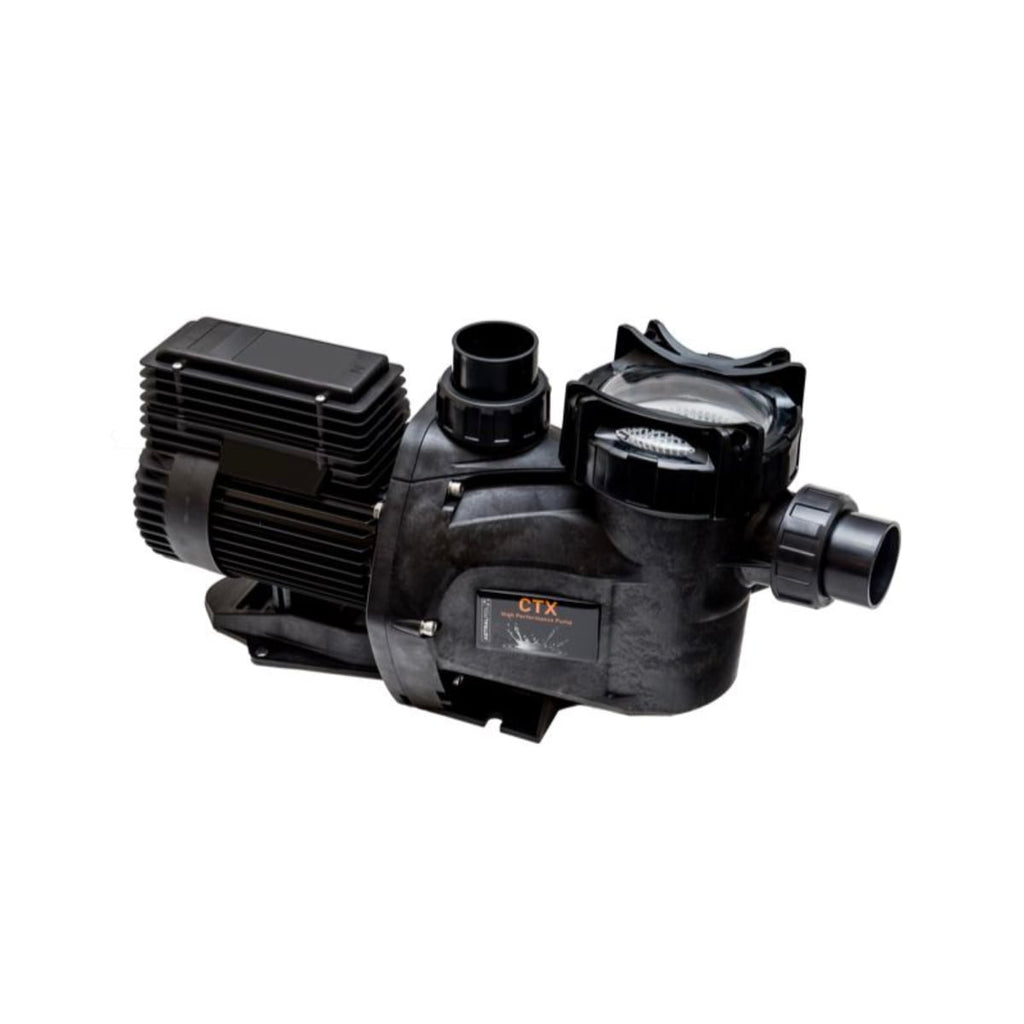

Astral CTX High Performance Pool Pump (SKU 21280 / 21360 / 21400 / 21500)
🏷️ Brand
Astral (AstralPool) is Fluidra's pool equipment brand in Australia. The CTX is the current version of the Hurlcon CX and TX pump line, made in Australia.
📝 Description
The Astral CTX is a single speed, high performance pool and spa pump, available in 1.0, 1.25, 1.5 and 2.0HP sizes to suit everything from small pools to pools with in-floor cleaning, spa jets and other demanding applications.
It has a large strainer basket with an easy-to-remove lid, so there is less cleaning between services, and it runs quieter than the pumps it replaces. It drops in as a direct replacement for older Hurlcon and Astral CX and TX pumps without plumbing changes. Choose your size from the options above, and if you're unsure which pump suits your pool, the flow rate matters more than the horsepower rating.
📦 Parts Included
- Astral CTX pump (motor and pump body)
- Large strainer basket and lid
- 40 mm and 50 mm plumbing fittings
📐 Measurements
Measurements are approximate.
-
Packaged Dimensions: 650 x 250 x 380 mm (all sizes)
-
Packaged Weight (CTX 280C): 16 kg
-
Packaged Weight (CTX 360C): 21 kg
-
Packaged Weight (CTX 400C): 18 kg
-
Packaged Weight (CTX 500C): 20 kg
⚙️ Specifications & Compatibility
-
SKU (CTX 280C, 1.0HP): 21280
-
SKU (CTX 360C, 1.25HP): 21360
-
SKU (CTX 400C, 1.5HP): 21400
-
SKU (CTX 500C, 2.0HP): 21500
-
Pump Type: Single speed
-
Max Flow (CTX 280C): 280 L/min
-
Max Flow (CTX 360C): 360 L/min
-
Max Flow (CTX 400C): 400 L/min
-
Max Flow (CTX 500C): 500 L/min
-
Power (CTX 280C): 1070 W, 4.5 A
-
Current (CTX 360C): 4.75 A
-
Power (CTX 400C): 1650 W, 7.2 A
-
Power (CTX 500C): 1900 W, 8.3 A
-
Supply: 240 V, single phase
-
Plumbing Connections: 40 mm and 50 mm
-
Replaces: Hurlcon and Astral CX and TX pumps (same size, no plumbing changes)
-
Suitable For: Swimming pools and spas, including in-floor cleaning systems and spa jets
-
Country of Origin: Australia
📂 Downloads and Support
🛡️ Warranty Information
3 year warranty on the pump, excluding seals, and 2 years on the mechanical seal, for purchases made since 1 October 2020. Warranty is provided by Astral (AstralPool).
