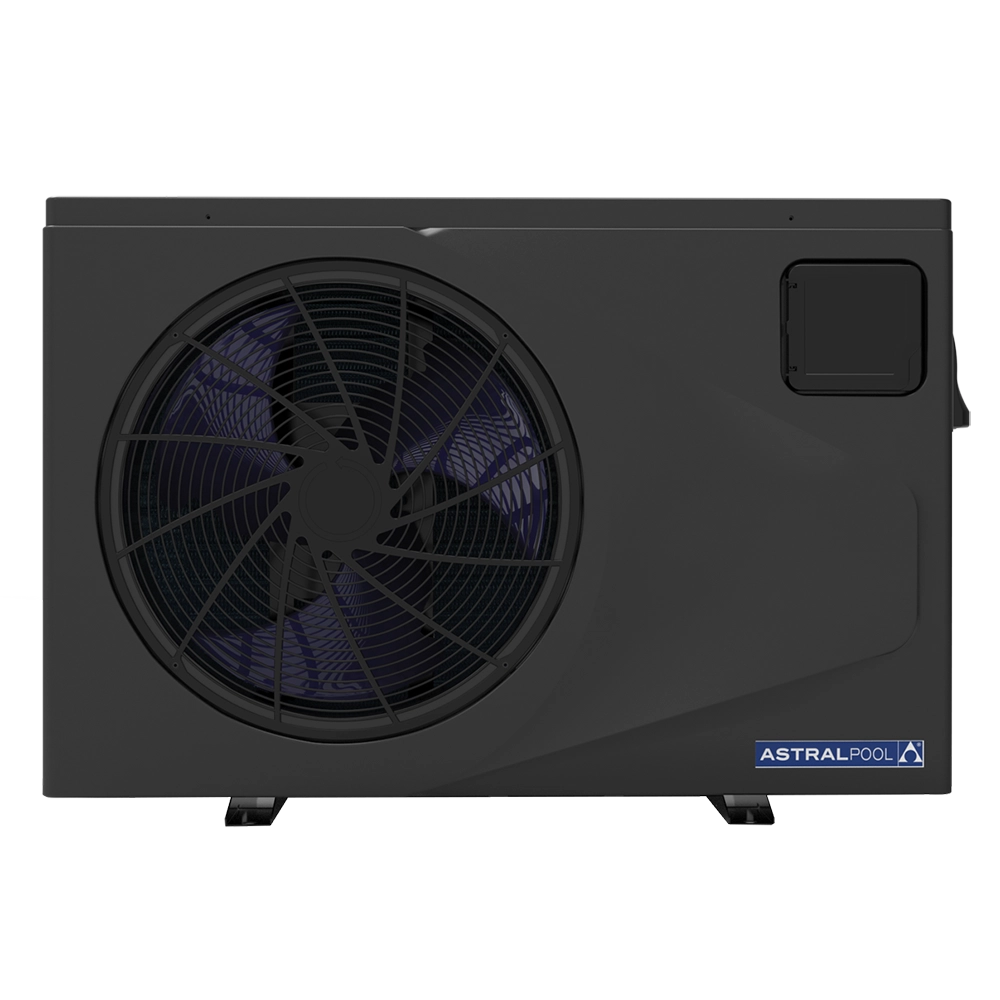

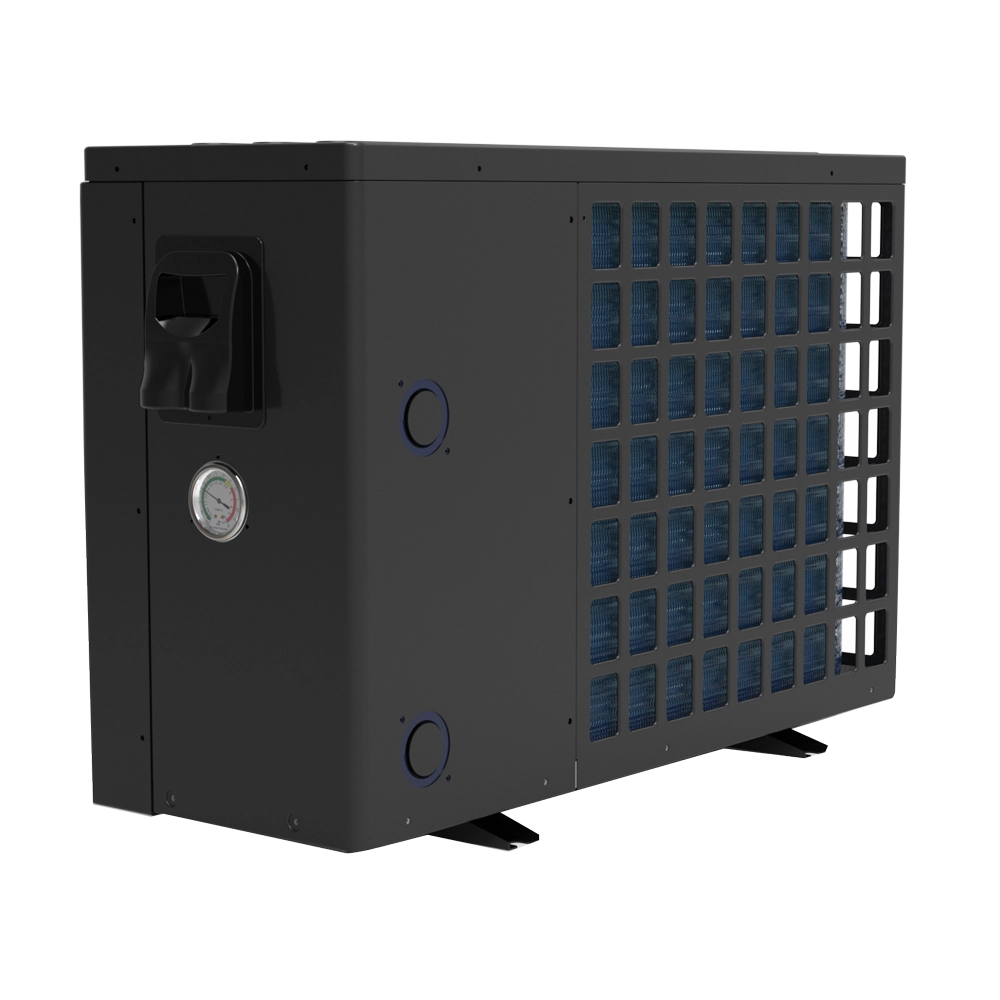

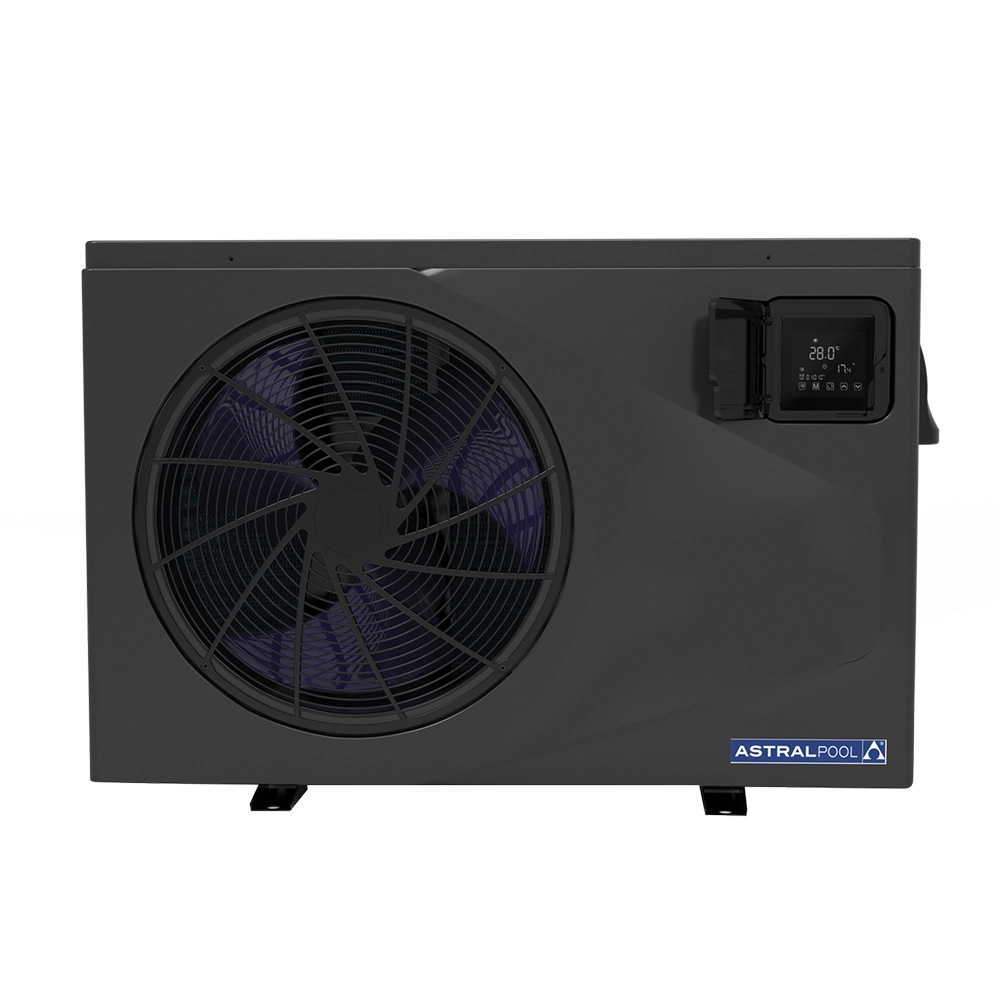

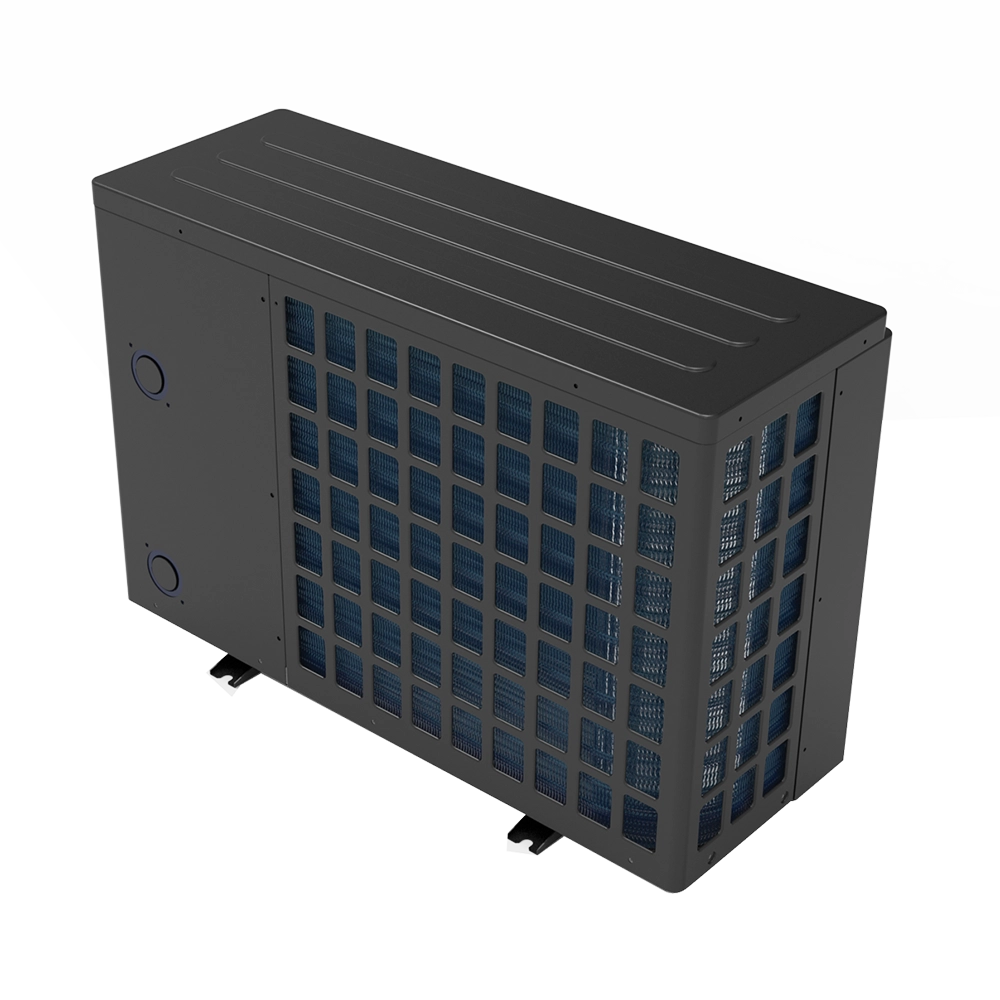

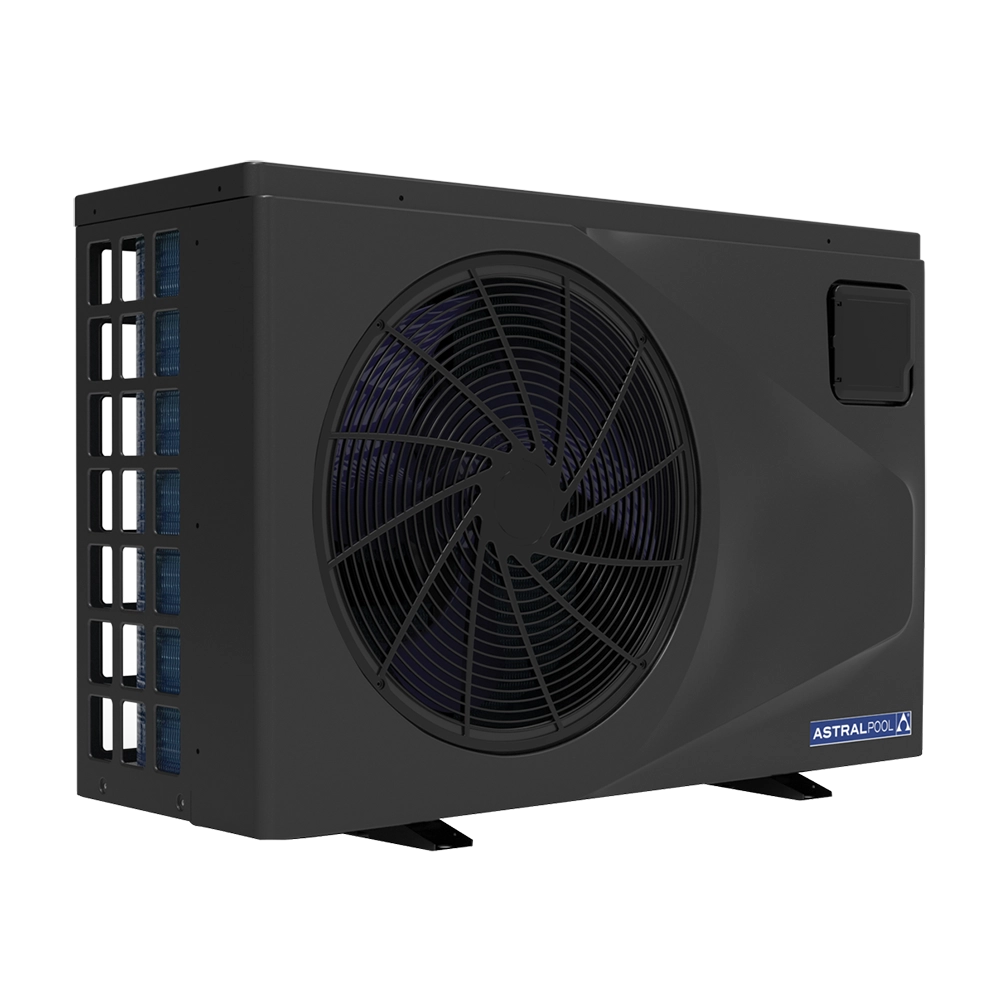

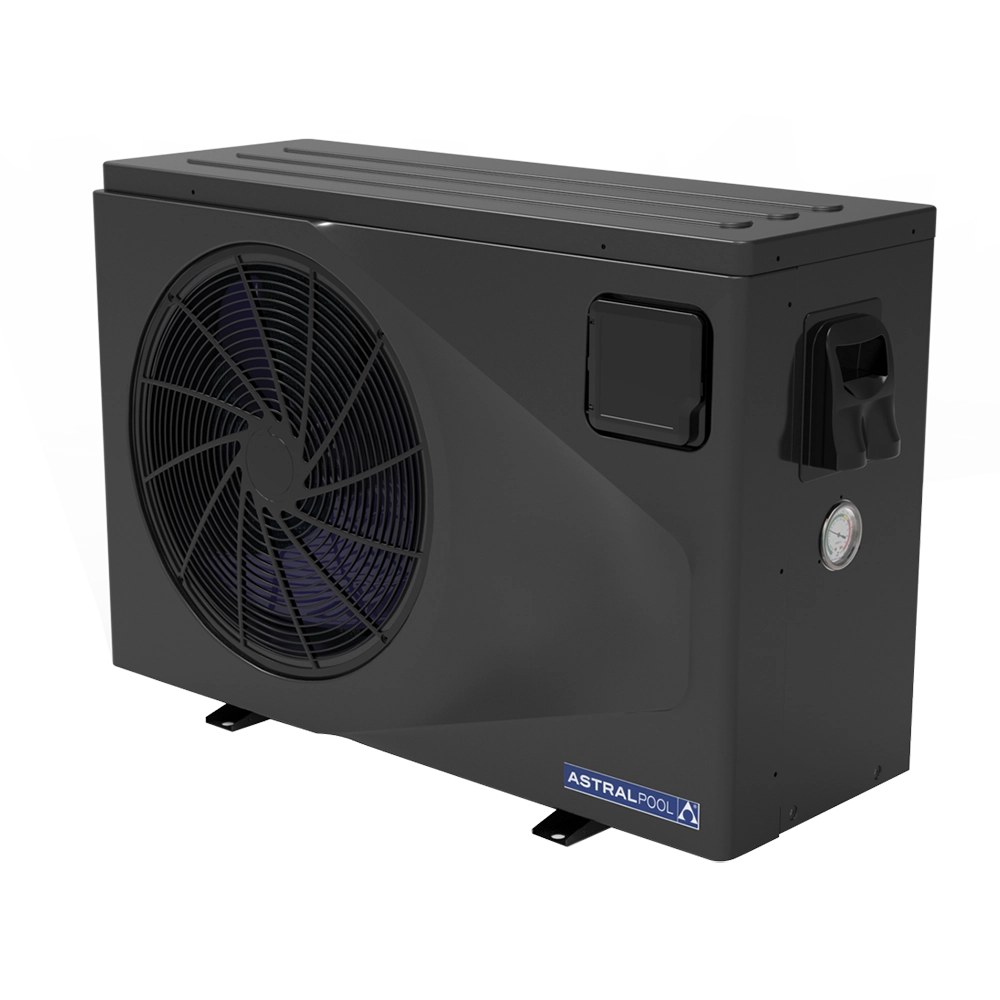

Astral ECOLite Inverter Pool Heat Pump
🏷️ Brand
Astral
📝 Description
The Astral ECOLite Inverter Heat Pump is an electric pool heater that uses an inverter compressor and R32 refrigerant to heat your pool water efficiently. It is available in four sizes: 12kW, 16kW, 18kW and 24kW.
The inverter compressor adjusts its output to suit conditions, so the unit heats quickly and then runs quietly and efficiently to hold your set temperature. It has a touchscreen control, a corrosion-resistant casing and a titanium heat exchanger that suits all water types. It works with most popular pool automation systems, and an optional WiFi module adds app control through the Aquatemp app.
📦 Parts Included
- 1x ECOLite Inverter Heat Pump (size as selected)
📐 Measurements
Measurements are approximate.
-
Unit size (L x W x H): 12kW 888 x 360 x 608mm / 16kW 1002 x 453 x 767.5mm / 18kW 1002 x 453 x 767.5mm / 24kW 1161 x 490 x 865mm
-
Unit weight: 12kW 44kg / 16kW 57kg / 18kW 59kg / 24kW 92kg
-
Water connections: 40mm
⚙️ Specifications & Compatibility
-
Models: 12kW (WH000641), 16kW (WH000642), 18kW (WH000643), 24kW (WH000655)
-
Heating capacity (27°C air / 26°C water / 80% RH): 12kW 3.5–12.26kW / 16kW 2.9–15.48kW / 18kW 3.1–18.01kW / 24kW 3.6–24.6kW
-
Heating power input (27°C air / 26°C water / 80% RH): 12kW 0.45–2.03kW / 16kW 0.39–2.57kW / 18kW 0.42–3.17kW / 24kW 0.24–3.89kW
-
COP (27°C air / 26°C water / 80% RH): 12kW 12.7–6.04 / 16kW 12.9–6.01 / 18kW 13.0–5.68 / 24kW 15.0–6.32
-
Heating capacity (15°C air / 26°C water / 70% RH): 12kW 1.78–9.95kW / 16kW 2.2–11.4kW / 18kW 2.4–13.8kW / 24kW 4.1–18.6kW
-
COP (15°C air / 26°C water / 70% RH): 12kW 7.2–4.6 / 16kW 7.2–4.7 / 18kW 7.4–4.7 / 24kW 7.2–4.81
-
Cooling capacity (35°C air / 29°C water / 70% RH): 12kW 2.45–3.64kW / 16kW 3.66–6.80kW / 18kW 4.41–7.65kW / 24kW 4.95–12.30kW
-
Operating air temperature: -7°C to 43°C
-
Refrigerant: R32
-
Power supply: 220–240V, single phase, 50Hz
-
Compressor: Rotary (Gree)
-
Fan direction: Front discharge
-
Sound pressure at 10m (max–min): 12kW 34–22dB(A) / 16kW 36–24dB(A) / 18kW 46–25dB(A) / 24kW 46–25dB(A)
-
Recommended water flow: 12kW 87L/min / 16kW 105L/min / 18kW 125L/min / 24kW 167L/min
-
Heat exchanger: Titanium
-
Control: Touchscreen, optional WiFi module (Aquatemp app)
📂 Downloads and Support
🛡️ Warranty Information
Astral ECOLite heat pumps are covered by a 3 year warranty, with 5 years on the compressor and 5 years on the heat exchanger. Damage to the heat exchanger from incorrect water chemistry is not covered. Claims are handled through the Fluidra warranty portal.
