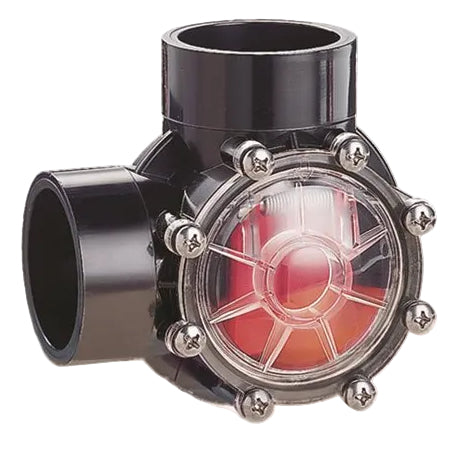

Jandy 40mm 90° Non-Return Check Valve
🏷️ Brand
Jandy (genuine) / Generic option available
📝 Description
The Jandy 40mm 90° non-return check valve is a right-angle pool plumbing valve that lets water flow one way only, so water cannot run back through your pump, filter or heater when the system is switched off.
Its 90° (right-angle) body makes it ideal where pipework turns a corner, saving you an extra elbow fitting. It is made from the same tough material as the Jandy NeverLube valve and uses a swing/spring design for water intake and return, with a clear lid so you can inspect the inside. Choose your option from the drop-down: genuine Jandy or a value-priced Generic (CMP HydroSeal CPVC). Both suit 40mm pipework.
📦 Parts Included
- 1x 40mm 90° check valve (your selected brand option)
📐 Measurements
Measurements are approximate.
-
Pipe size: 40mm
-
Weight (Jandy): 0.76 kg
-
Weight (Generic): 0.66 kg
⚙️ Specifications & Compatibility
-
Valve type: Non-return (check) valve
-
Pipe size: 40mm
-
Port configuration: 90° (right angle)
-
SKU (Jandy): W7511
-
SKU (Generic): 25830-864-000
-
Design: Swing/spring check valve with clear lid and removable flapper
-
Generic valve: CMP HydroSeal CPVC check valve
-
Generic port connections: 1.5 inch socket x 2 inch spigot (about 40mm slip-fit or 50mm spigot)
-
Generic working pressure: 50 PSI
-
Generic spring: 1/4 lb
📂 Downloads and Support
🛡️ Warranty Information
Genuine Jandy valves carry a lifetime warranty against manufacturing defects that may cause leaking, cracking or breaking, provided the valve is installed and serviced in line with the manufacturer's guidelines. The Generic option is covered by its manufacturer's standard warranty. For Jandy warranty claims see the Fluidra warranty portal.
