Description

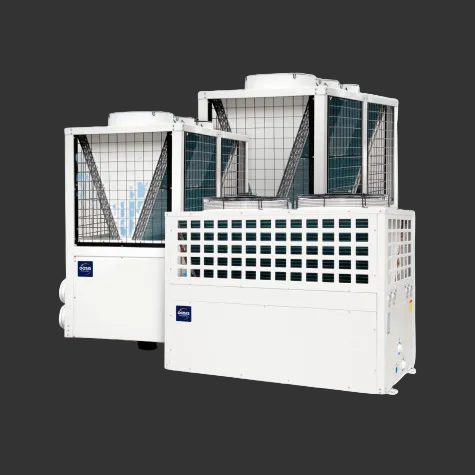

Oasis C Series Semi Commercial Pool Heat Pump
🏷️ Brand
Oasis (Sunlover Group)
📝 Description
The Oasis C Series C42SS, C52SS and C65SS are semi commercial three phase pool heat pumps from the Sunlover Group, delivering 41.5kW to 63.4kW of heating (air 27°C, water 26°C) with a dual coil titanium heat exchanger, R32 refrigerant and both heating and cooling modes.
The C Series is the top of the Oasis heat pump range, built for large residential pools, resort-style pools and light commercial use. Each unit can heat or cool the pool, and several units can be connected in parallel with centralised or master-slave control so they work together on one system.
A patented dual coil titanium heat exchanger enlarges the heat-exchanging surface, and the V-shaped condenser gives more room for air flow and makes defrosting easier. Automatic defrosting is built in as standard. An electric expansion valve, a water flow switch and high and low pressure protection look after the unit in operation.
📦 Parts Included
- 1x Oasis C Series heat pump (model as selected)
📐 Measurements
Measurements are approximate.
- C42SS (L x W x H): 1490 x 735 x 1130 mm, 252 kg
- C52SS (L x W x H): 1490 x 735 x 1130 mm, 254 kg
- C65SS (L x W x H): 1490 x 735 x 1130 mm, 257 kg
- Water connections: 50 mm
⚙️ Specifications & Compatibility
- SKU: C42SS / C52SS / C65SS
- Heating capacity (air 27°C, water 26°C): C42SS 41.53 kW, C52SS 51.37 kW, C65SS 63.38 kW
- Heating capacity (air 15°C, water 26°C): C42SS 32.39 kW, C52SS 40.07 kW, C65SS 49.44 kW
- Heating power input (air 27°C, water 26°C): C42SS 7.02 kW, C52SS 8.73 kW, C65SS 12.87 kW
- COP (air 27°C, water 26°C): C42SS 5.92, C52SS 5.88, C65SS 4.92
- Cooling capacity (air 35°C, water 29°C): C42SS 24.76 kW, C52SS 31.34 kW, C65SS 37.79 kW
- Power supply: 400V/3ph/50Hz, hardwired
- Running current (per phase): C42SS 11.5 A, C52SS 16.6 A, C65SS 23 A
- Water flow volume: C42SS 200 L/min, C52SS 250 L/min, C65SS 333 L/min
- Sound pressure at 1 m: 61 dB(A)
- Operating air temperature: -7°C to 43°C
- Refrigerant: R32 (GWP 675)
- Water resistance: IPX4
- Fans: 2, vertical discharge
- Heat exchanger: dual coil titanium
- Functions: heating and cooling, automatic defrost, master-slave control for multiple units
*Images are for illustration purposes only. The actual product may differ from the image. Please read the product description and included parts for full details.
💡 Before You Buy
- Three phase power is required. All C Series models run on 400V three phase and must be hardwired by a licensed electrician.
- Size the system properly. Large and commercial pools often need more than one heat pump. Work from your pool's surface area, volume, location and how the pool is used, and compare the heating capacity at 15°C air as well as the headline figure.
- Plan for the size and weight. Each unit is about 1.5 m long and weighs over 250 kg, with 50 mm water connections and a required flow of 200 to 333 L/min depending on the model.
- Bigger systems. The Oasis commercial range runs up to 200 kW. This listing covers the three semi commercial models only.
❓ Common Questions
- Can it cool the pool as well as heat it? Yes, every C Series unit heats and cools. Cooling capacity ranges from 24.76 kW (C42SS) to 37.79 kW (C65SS) at 35°C air temperature.
- Can I run more than one unit on the same pool? Yes, units can be connected in parallel and run together with centralised or master-slave control.
- Will it work in cold weather? It operates in air temperatures from -7°C to 43°C and has automatic defrosting built in, with lower output in colder air.
📂 Downloads and Support
- Oasis Commercial Heat Pumps Brochure (PDF)
- Oasis C Series Commercial Heat Pump Specifications (PDF)
- Oasis Heat Pump Warranty (PDF)
- Oasis Commercial Heat Pumps on the Sunlover website
- Shop Heat Pumps
- Shop Pool Heating
- Shop all Sunlover and Oasis products
🚚 Shipping
- Large / Bulky or Oversized
- Special Order Item - Please allow an additional 3-5 working days for shipping
- Review all shipping rates
🛡️ Warranty Information
Oasis heat pump warranty from Sunlover / Oasis: 25 years on the titanium heat exchanger against corrosion, 5 years on the compressor and 2 years on parts for domestic use. Commercial installations (such as health clubs, swim schools, motels and hydrotherapy pools) are limited to 12 months parts and in-field labour.
Other Search Terms: Oasis C42SS, C52SS, C65SS, Oasis commercial heat pump, semi commercial pool heat pump, three phase pool heater, Sunlover commercial heating, Oasis Aquatics C series, 42kw 52kw 65kw heat pump
