Oasis iX Rapid Heat Inverter Pool Heat Pump
🏷️ Brand
Oasis (Sunlover Group)
📝 Description

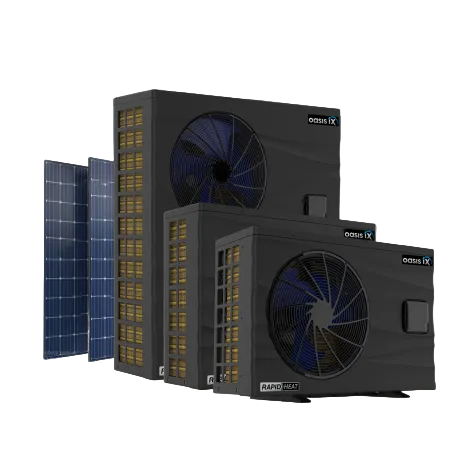

The Oasis iX Rapid Heat is an inverter pool heat pump from the Sunlover Group, available in seven sizes from 9kW to 36kW, that uses R32 refrigerant, a 3.5" touch controller and PV Ready modes to put excess rooftop solar power into heating your pool or spa.
Inverter technology lets the iX ramp its output up and down instead of running flat out. Smart RAPIDHEAT software gives an express heat-up when the water is cold, then the unit slows down once your set temperature is reached.
If you have a rooftop PV system, the iX can adjust its capacity to use the excess power your panels produce. Four PV Ready modes are built in: Sleep (the heat pump shuts down), Eco and Power Save (two user-programmable output settings) and Temp+, which automatically raises the target temperature so spare solar energy is stored as heat in your pool. Scheduling lets you run the heat pump at up to six different times, speeds and target temperatures to make use of off-peak tariffs.
The condenser coils have a golden hydrophilic anti-corrosion coating, and the unit can cool the pool as well as heat it. The iX9 and iX13 plug into a 10A or 15A outlet; the larger models are hardwired, and the iX28T and iX36T run on three phase power. Phone control is available by adding the Oasis Wi-Fi Module for iX Inverter Heat Pumps (SL0030).
📦 Parts Included
- 1x Oasis iX Rapid Heat heat pump (model as selected)
- 1x 3.5" touch display controller (fitted)
- Barrel unions for 40 mm PVC pressure pipe (more is available separately: Oasis 40mm Barrel Union for Oasis Heat Pumps (SL006))
- Rubber feet (more is available separately: Oasis Rubber Feet for Oasis Heat Pumps (SL0039))
- Drain barbs
- 1x Installation and operation manual
📐 Measurements
Measurements are approximate.
- iX9 (L x W x H): 934 x 360 x 618 mm, 42 kg
- iX13 (L x W x H): 934 x 360 x 618 mm, 44 kg
- iX19 (L x W x H): 1048 x 453 x 771 mm, 60 kg
- iX24 (L x W x H): 1160 x 490 x 865 mm, 97 kg
- iX28 (L x W x H): 1161 x 490 x 1277 mm, 99 kg
- iX28T (L x W x H): 1160 x 490 x 865 mm, 97 kg
- iX36T (L x W x H): 1161 x 490 x 1277 mm, 120 kg
- Water connections: 40 mm
⚙️ Specifications & Compatibility
- SKU: iX9 / iX13 / iX19 / iX24 / iX28 / iX28T / iX36T
- Heating capacity (air 27°C, water 26°C): iX9 1.6–9.4 kW, iX13 2.13–12.8 kW, iX19 2.9–18.9 kW, iX24 3.1–24.6 kW, iX28 5.8–28.0 kW, iX28T 5.5–28.9 kW, iX36T 5.7–36.0 kW
- Heating capacity (air 15°C, water 26°C): iX9 1.0–6.6 kW, iX13 1.8–9.1 kW, iX19 2.4–12.5 kW, iX24 4.4–18.6 kW, iX28 5.2–21.7 kW, iX28T 6.4–21.4 kW, iX36T 5.3–27.0 kW
- COP (air 27°C, water 26°C): up to 14.5 (iX9), 14.2 (iX13), 14.5 (iX19), 14.8 (iX24), 16.4 (iX28), 14.5 (iX28T), 16.8 (iX36T)
- Cooling capacity (air 35°C, water 29°C): iX9 1.9–3.2 kW, iX13 2.5–3.6 kW, iX19 4.4–7.7 kW, iX24 5.0–12.3 kW, iX28 3.9–10.4 kW, iX28T 5.8–14.5 kW, iX36T 5.0–12.7 kW
- Power supply: 240V/1ph/50Hz (iX9, iX13, iX19, iX24, iX28); 400V/3ph/50Hz (iX28T, iX36T)
- Electrical connection: iX9 10A plug; iX13 15A plug; iX19, iX24, iX28, iX28T, iX36T hardwired
- Running current: iX9 6.9 A, iX13 10.6 A, iX19 13.9 A, iX24 17.9 A, iX28 24.1 A, iX28T 7.6 A per phase, iX36T 10.5 A per phase
- Water flow volume: iX9 42 L/min, iX13 58 L/min, iX19 70 L/min, iX24 110 L/min, iX28 125 L/min, iX28T 135 L/min, iX36T 160 L/min
- Sound pressure at 1 m: iX9 40–52 dB(A), iX13 42–54 dB(A), iX19 44–56 dB(A), iX24 45–56 dB(A), iX28 46–54 dB(A), iX28T 45–57 dB(A), iX36T 48–56 dB(A)
- Operating air temperature: -7°C to 43°C
- Refrigerant: R32 (GWP 675)
- Water resistance: IPX4
- Controller: 3.5" touch LCD, PV Ready modes, up to six scheduled run times
- Wi-Fi: optional Oasis Wi-Fi Module (SL0030)
*Images are for illustration purposes only. The actual product may differ from the image. Please read the product description and included parts for full details.
💡 Before You Buy
- Pick the right size. Heat pump size depends on your pool's surface area, volume, location and whether you use a blanket. Compare the heating capacity at 15°C air above as well as the headline figure, because output drops in cooler air.
- Check your power supply. The iX9 needs a 10A outlet and the iX13 a 15A outlet. All other models are hardwired, and the iX28T and iX36T need three phase power. Hardwiring must be done by a licensed electrician.
- Plumbing and flow. The supplied fittings accept standard 40 mm PVC pressure pipe, and each model needs the water flow listed above.
- Check you have the space. The manual asks for clearances of 300 mm at the back, 600 mm at the sides, 500 mm overhead and 2500 mm clear at the front.
- Using a chlorinator? Pair the heat pump with the Oasis Heat Junction 5 (HJ5) so your pool isn't over-chlorinated during long heat-up times on a one pump system.
🔧 Our Tips
- Position it well. Install the unit at least 3.5 m from the water's edge, ideally no more than 10 m away, and no more than 5 m below the pool or spa water level.
- Start the pump first. Turn on the water pump, check for leaks and flow, then switch on the power and press the ON/OFF key. The heat pump starts within 60 seconds.
- Set the bypass valve. After 10 minutes of running, adjust the bypass so the difference between inlet and outlet water temperature is between one and two degrees Celsius.
- Test the flow switch. Switch the pump off while the heat pump is running. The unit should shut itself down.
- Be patient on the first heat-up. Run the pump and heat pump continuously until the pool reaches your set temperature.
❓ Common Questions
- What does PV Ready mean? The controller can raise or lower the heat pump's output to use the excess power your rooftop solar panels produce, so more of your heating runs on your own solar power.
- Can I control it from my phone? Yes, once the optional Oasis Wi-Fi Module (SL0030) is fitted.
- Will it cool the pool too? Yes, every iX model can cool as well as heat. For example the iX9 has 1.9–3.2 kW of cooling capacity at 35°C air temperature.
- Do I need an electrician? The iX9 and iX13 plug into a suitable outlet. The hardwired models (iX19 and up) must be connected by a licensed electrician.
- How is it different from the Rapid Pro? The iX is built around PV Ready solar modes with Wi-Fi as an optional module, while the Oasis Rapid Pro Inverter Pool Heat Pump has built-in Wi-Fi and a higher COP.
