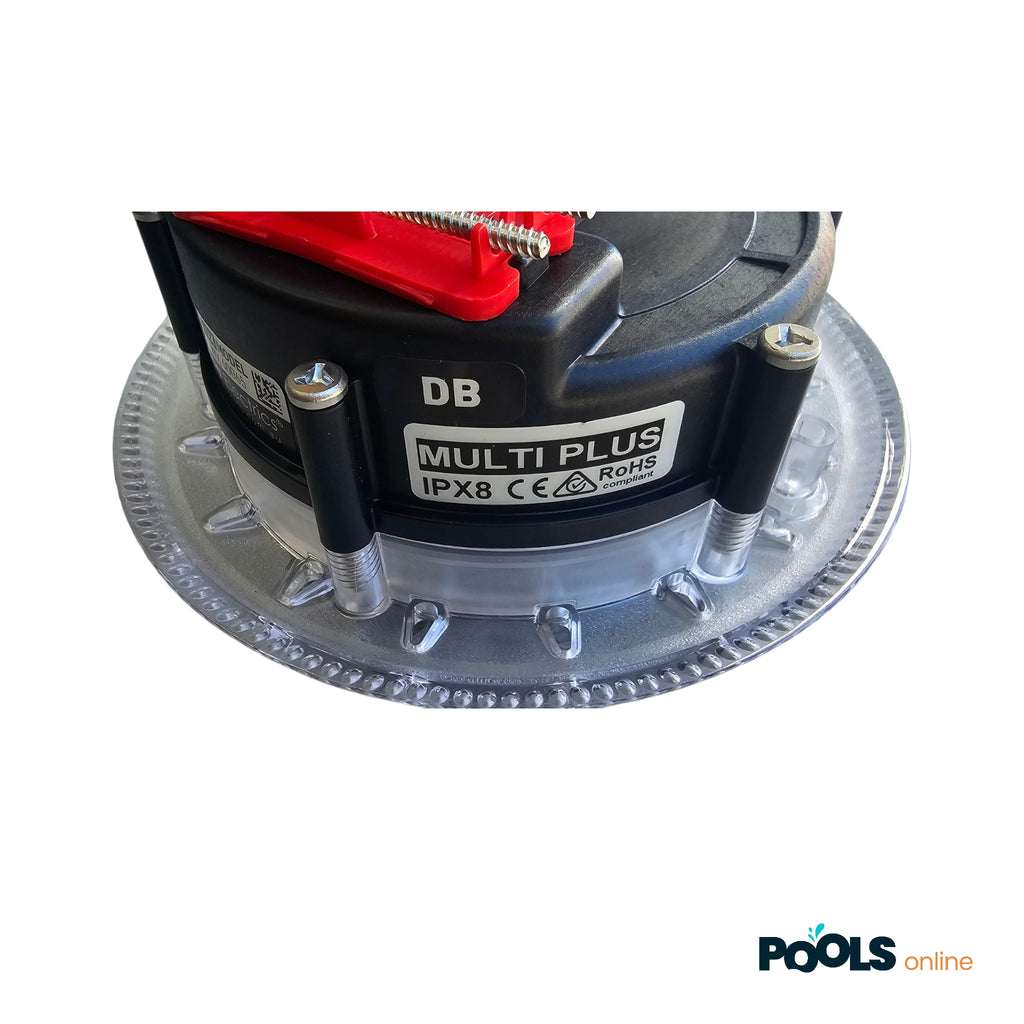

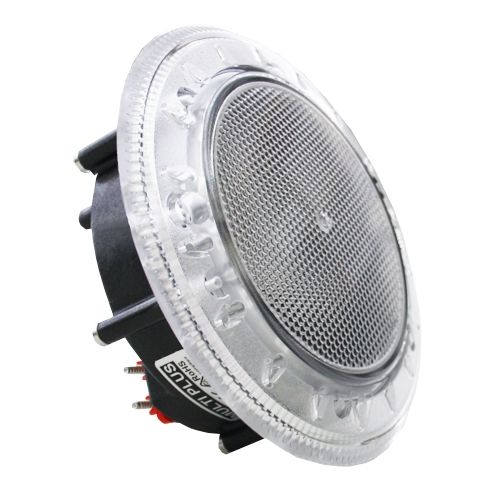

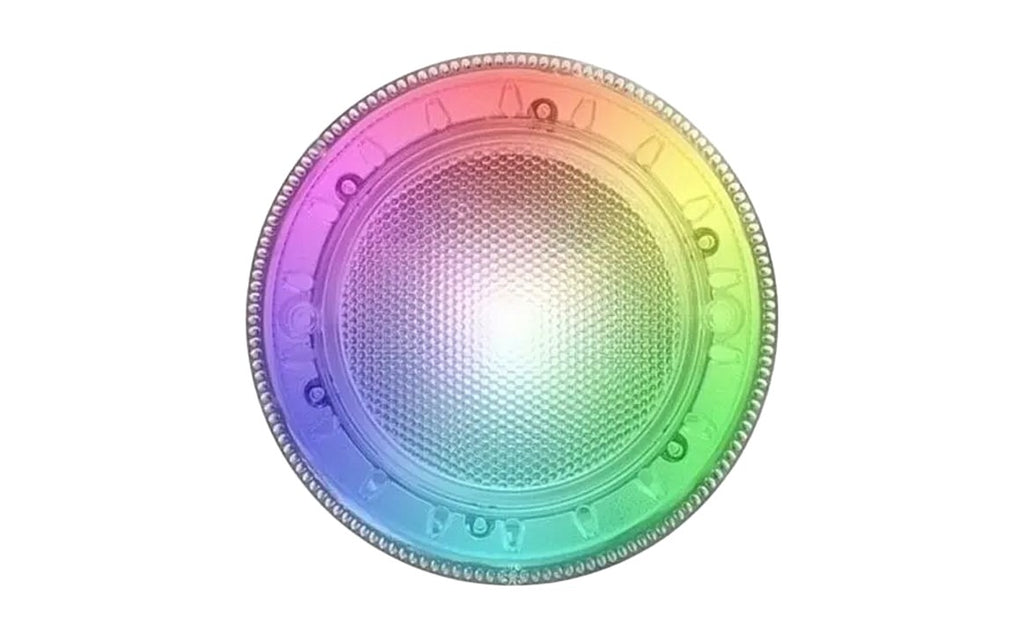

Spa Electrics WNRX Retro-Fit Multi Plus LED Pool Light
🏷️ Brand
Spa Electrics
📝 Description

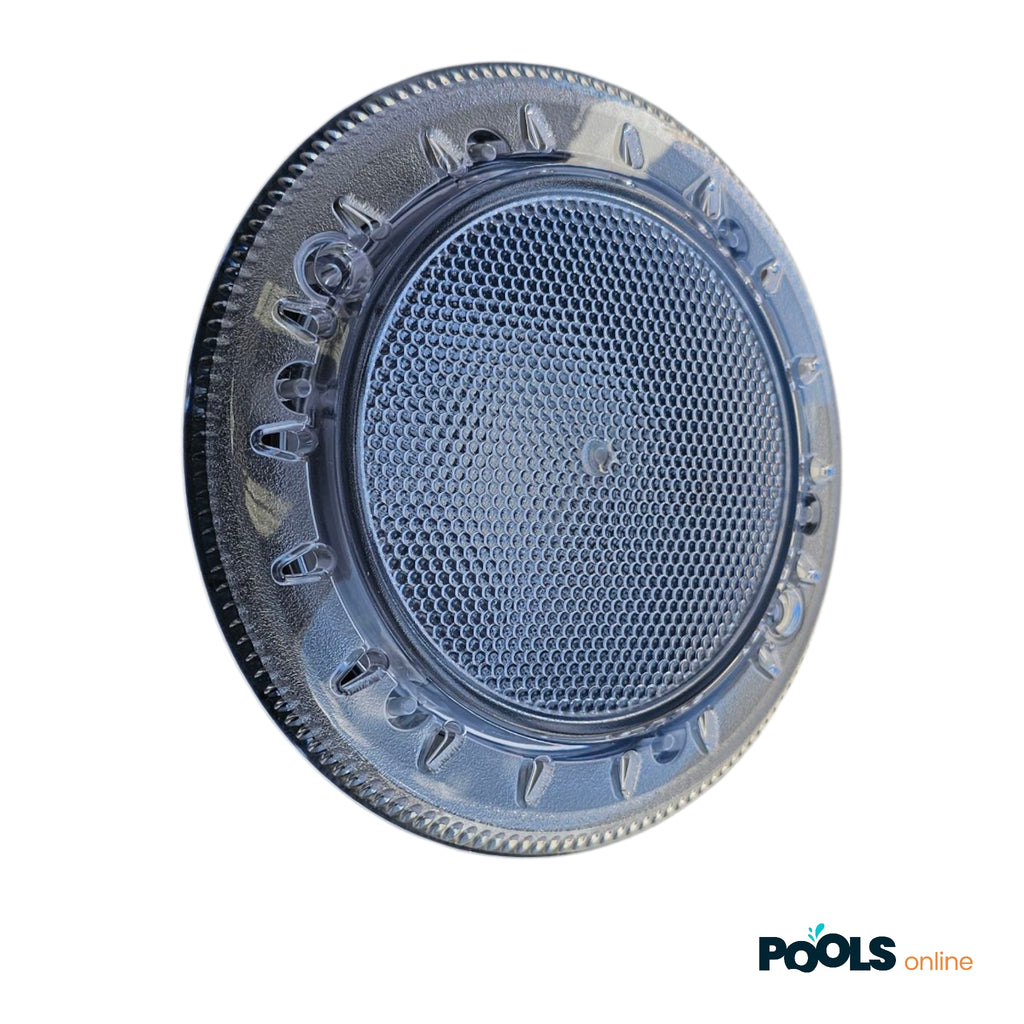

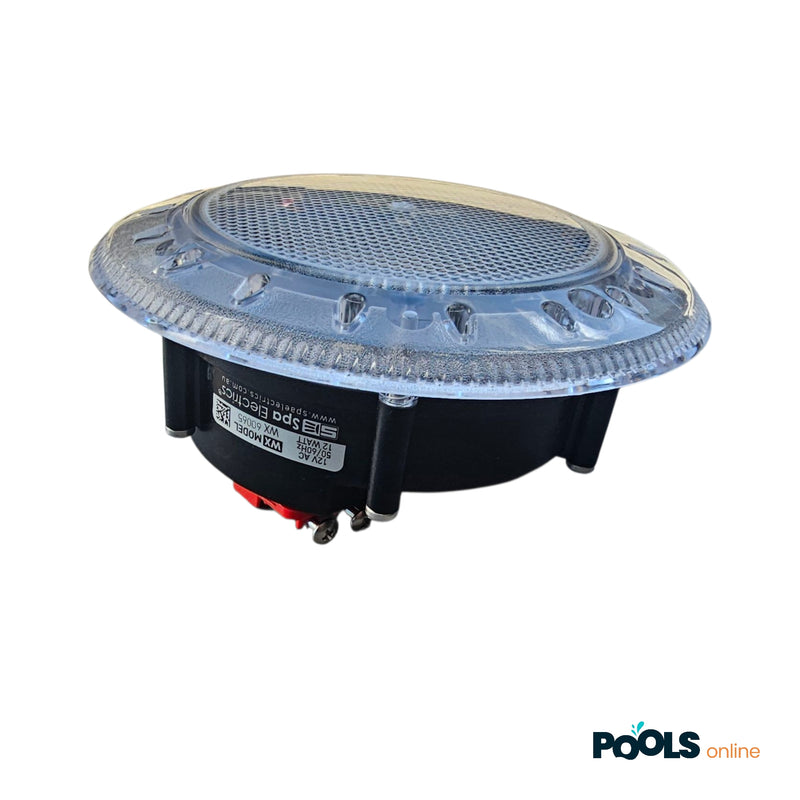

The Spa Electrics WNRX Multi Plus is a 12V, 12W retro-fit LED pool light that directly replaces WN250, WN850 and WN950 niche lights, with 7 colours and IPX8 waterproofing. Choose a clear, white, grey or black rim.

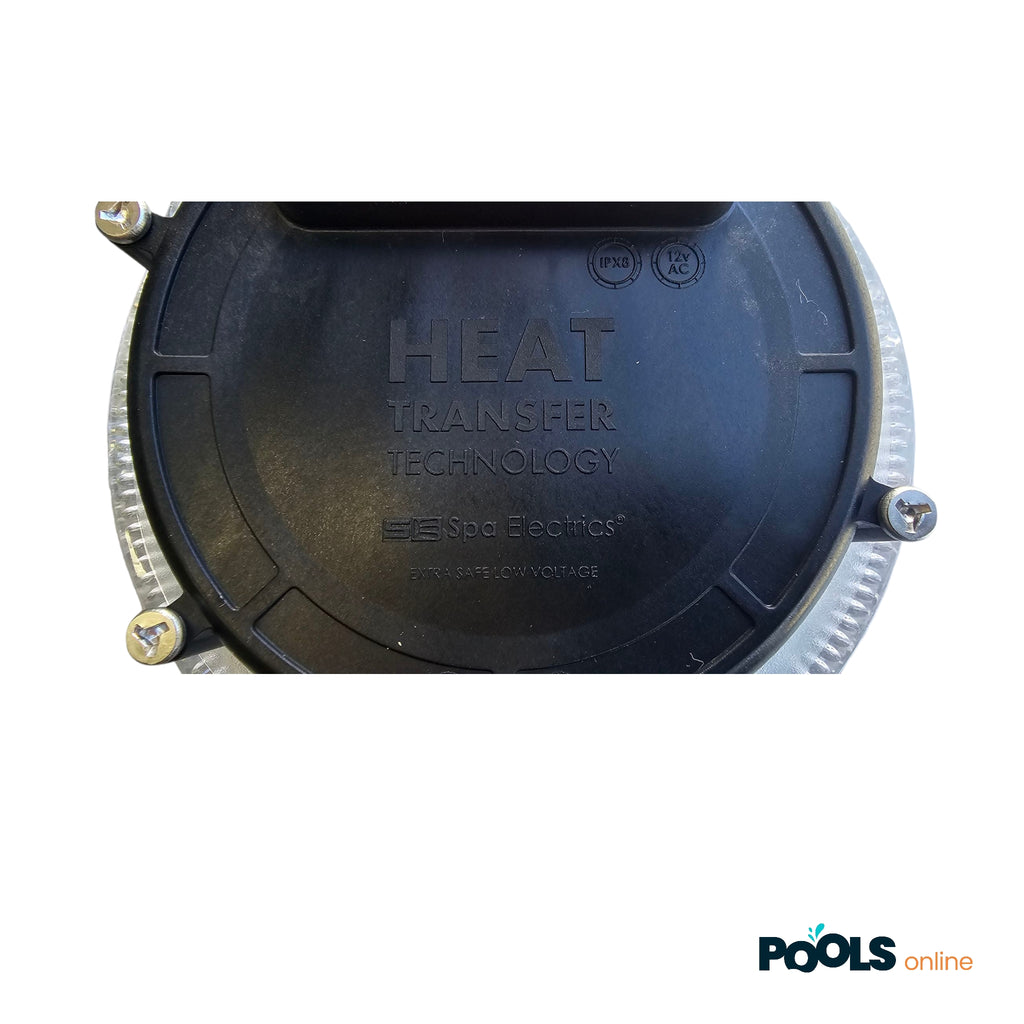

It uses a high-intensity ceramic LED light engine in a sealed lamp to protect the electronics from moisture and pool chemicals. The Multi Plus array gives you 7 colours, including a crisp 4000K True White, plus colour-changing shows (Oceanic Views, Transcendence, Outback Australia and Spring Equinox). It works with a standard wall switch, or with an iRIS lighting controller for dimming.

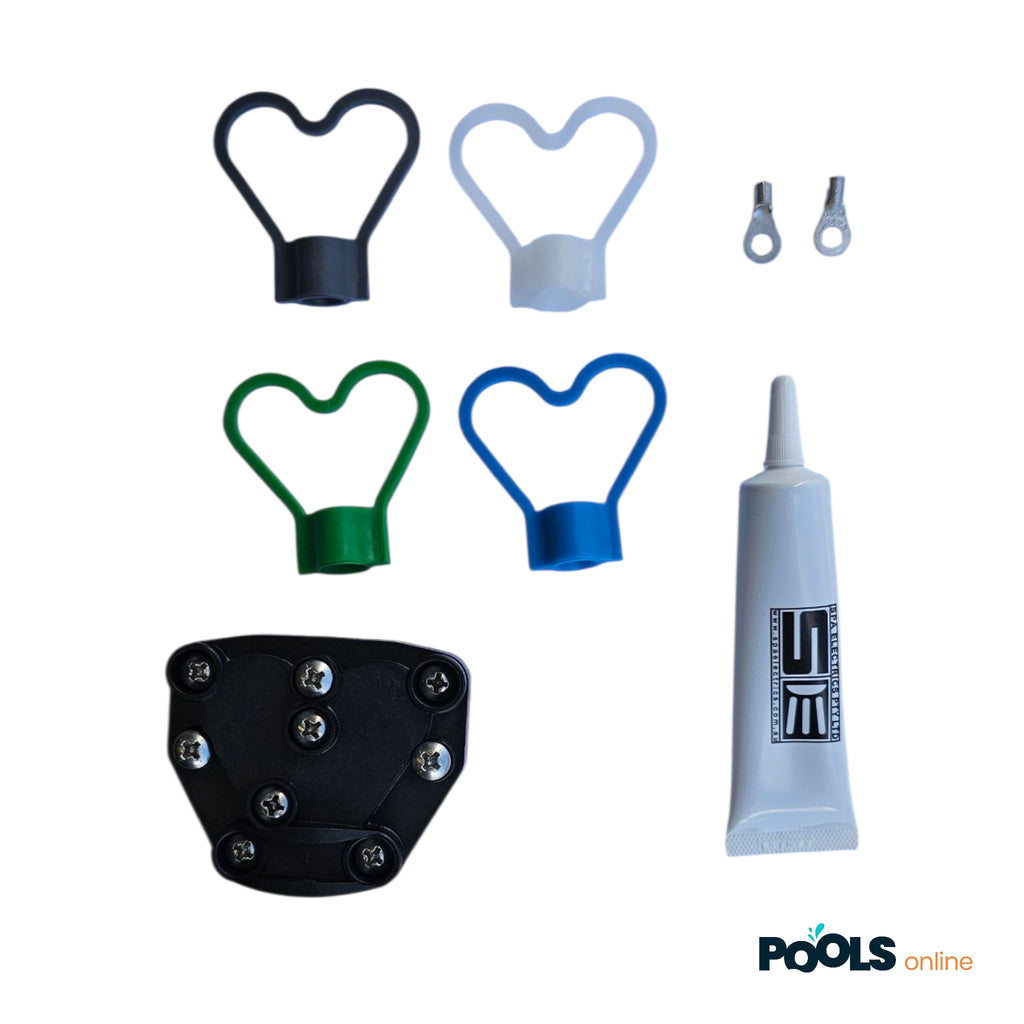

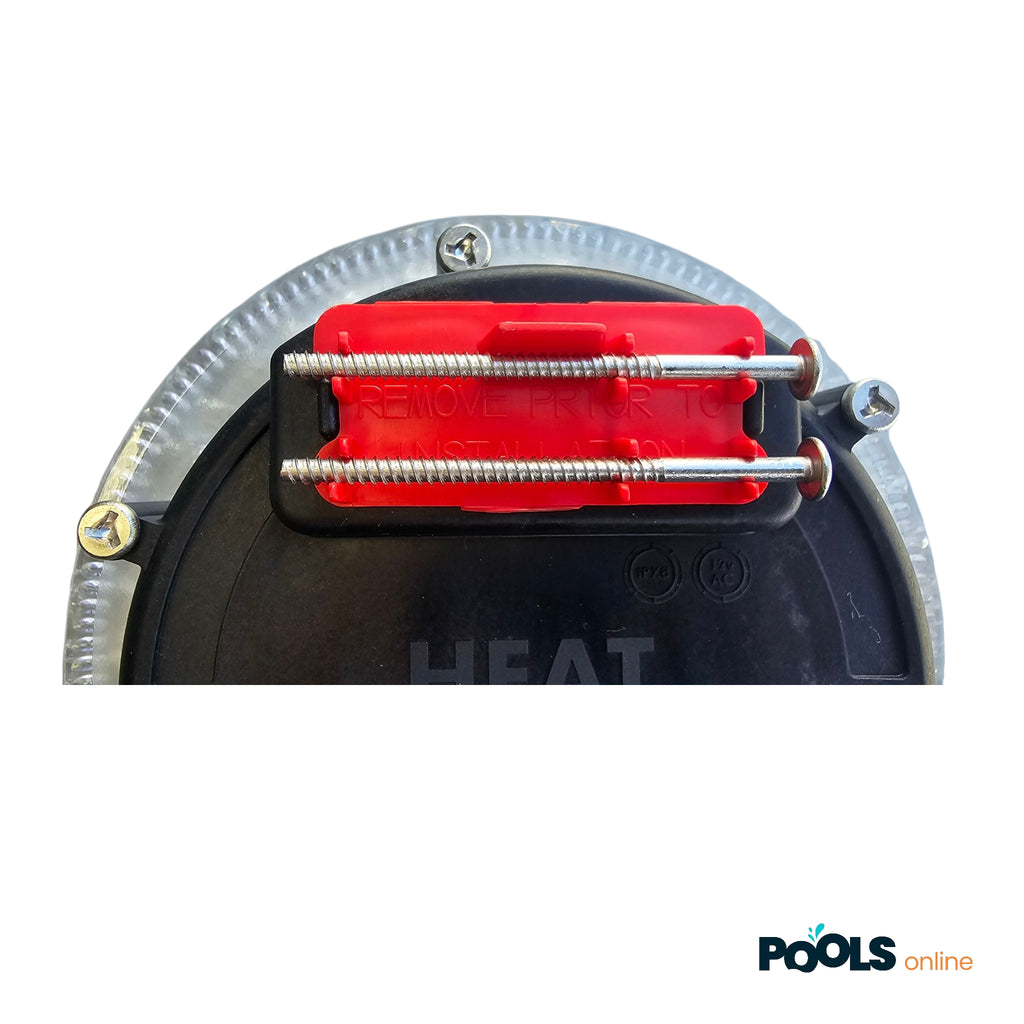

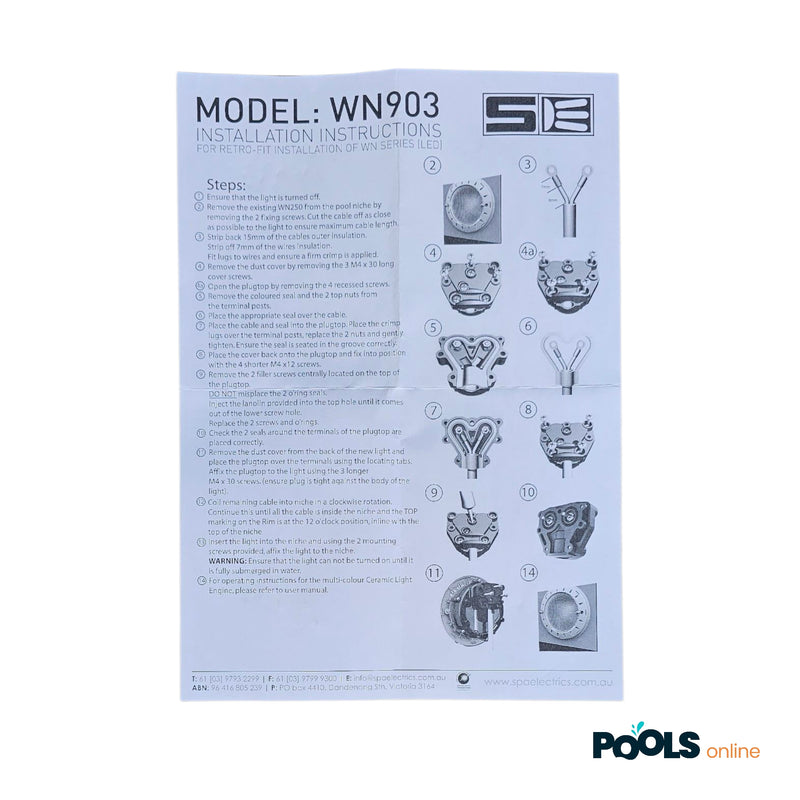

Installation is simple. The patented Direct-Connect detachable plug lets you unplug the old light and plug in the new one. In most cases there is no need to lower the water level, cut or re-cable, and the light runs on extra-low voltage. DIY installation may not be permitted in every state, so check your local regulations. The WNRX also comes with a spare plug top for replacing other manufacturers' lights.
Multi Plus models work with third-party controllers from AstralPool, Pentair, Zodiac / Jandy, Hayward, Dontek, INSNRG, SplashMe and Theralux. For best results, run the light for at least 30 minutes per week all year round. Check the compatibility list below, or the Spa Electrics replacement guide, before ordering.
📦 Parts Included
- 1 x WNRX Multi Plus LED pool light (in your chosen rim colour)

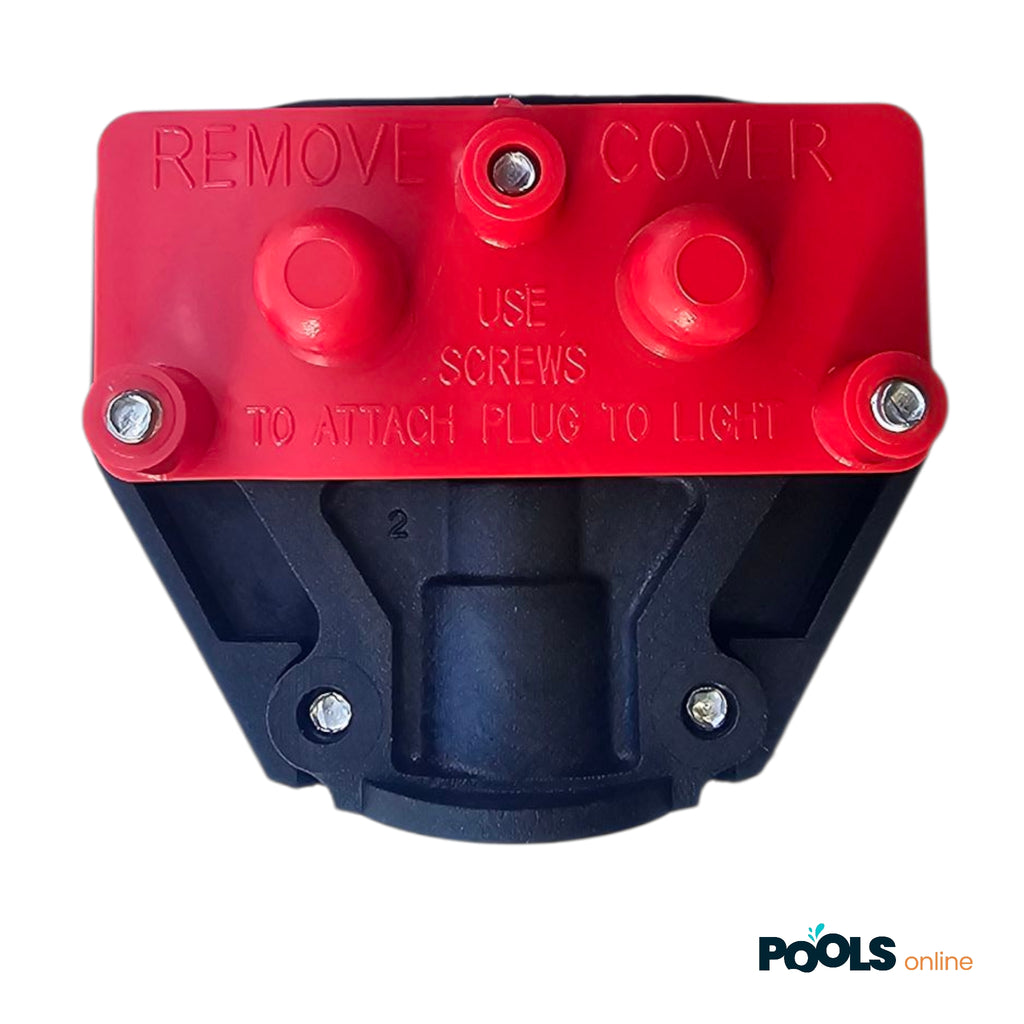

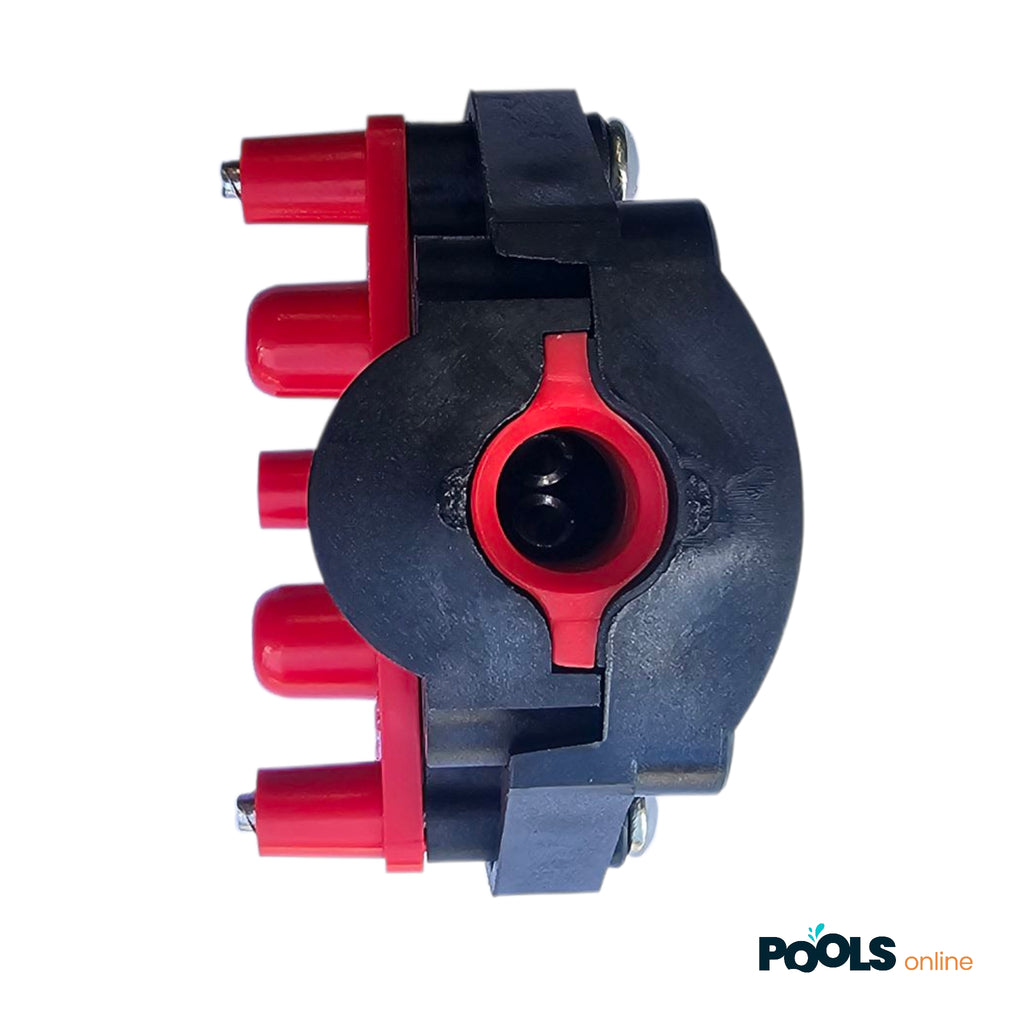

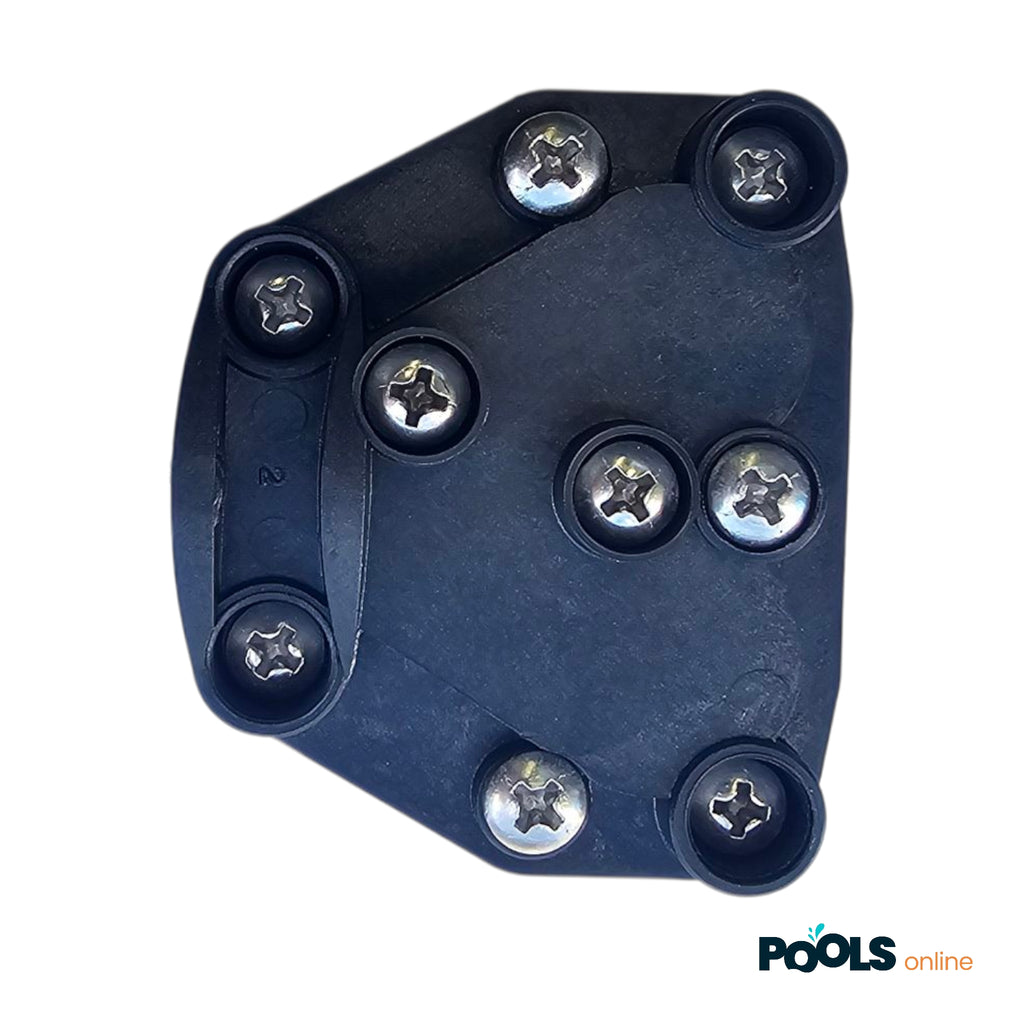

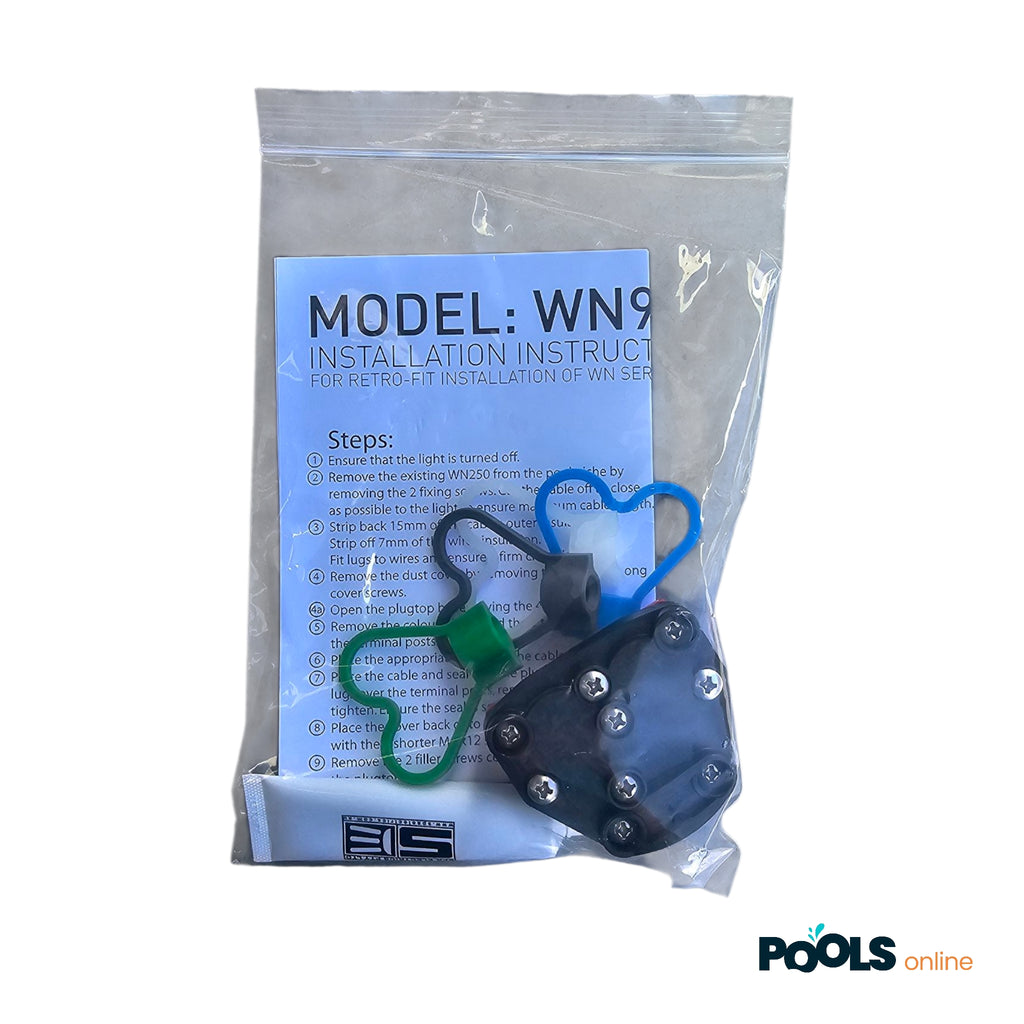

- 1 x Direct-Connect power plug
📐 Measurements
Measurements are approximate.
-
Weight: 705 g
-
Overall diameter: 160 mm
-
Depth: 17 mm
⚙️ Specifications & Compatibility
-
Brand: Spa Electrics
-
Model: WNRX Multi Plus (RGB+W)
-

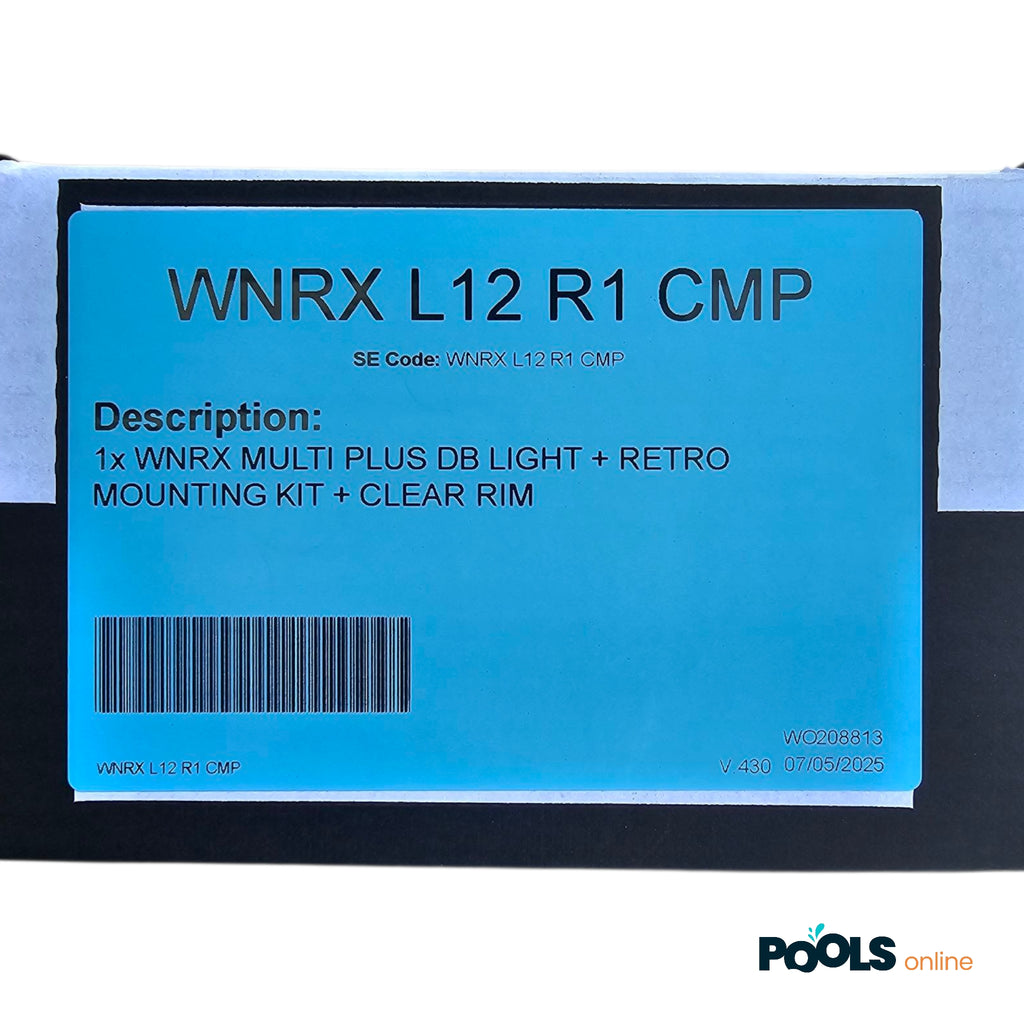

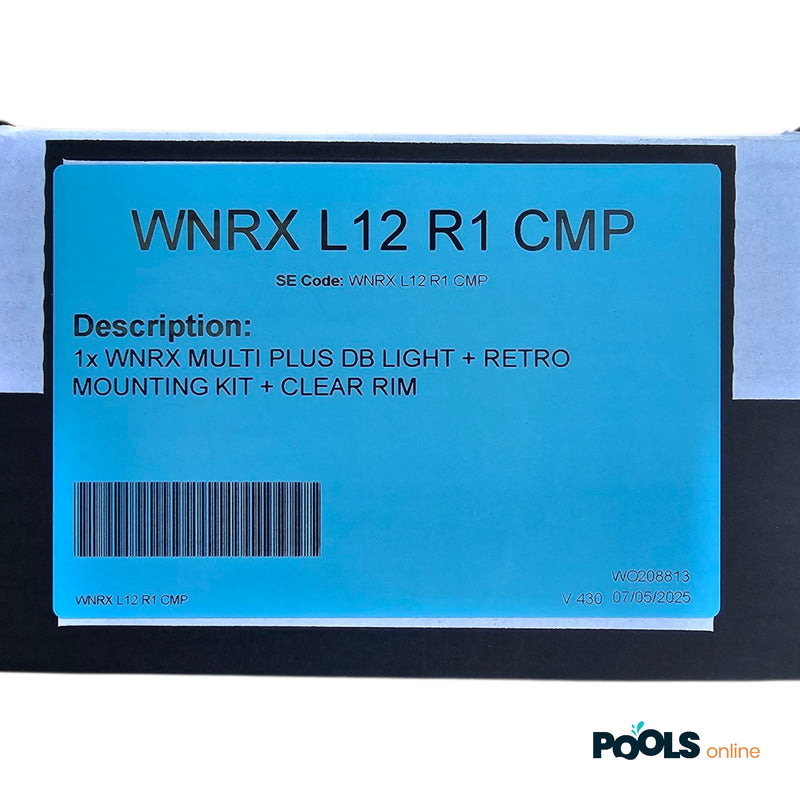

SKU: WNRX L12 R1 CMP (clear rim) / WNRX L12 R1 WMP (white rim) / WNRX L12 R1 GMP (grey rim) / WNRX L12 R1 BMP (black rim)
-

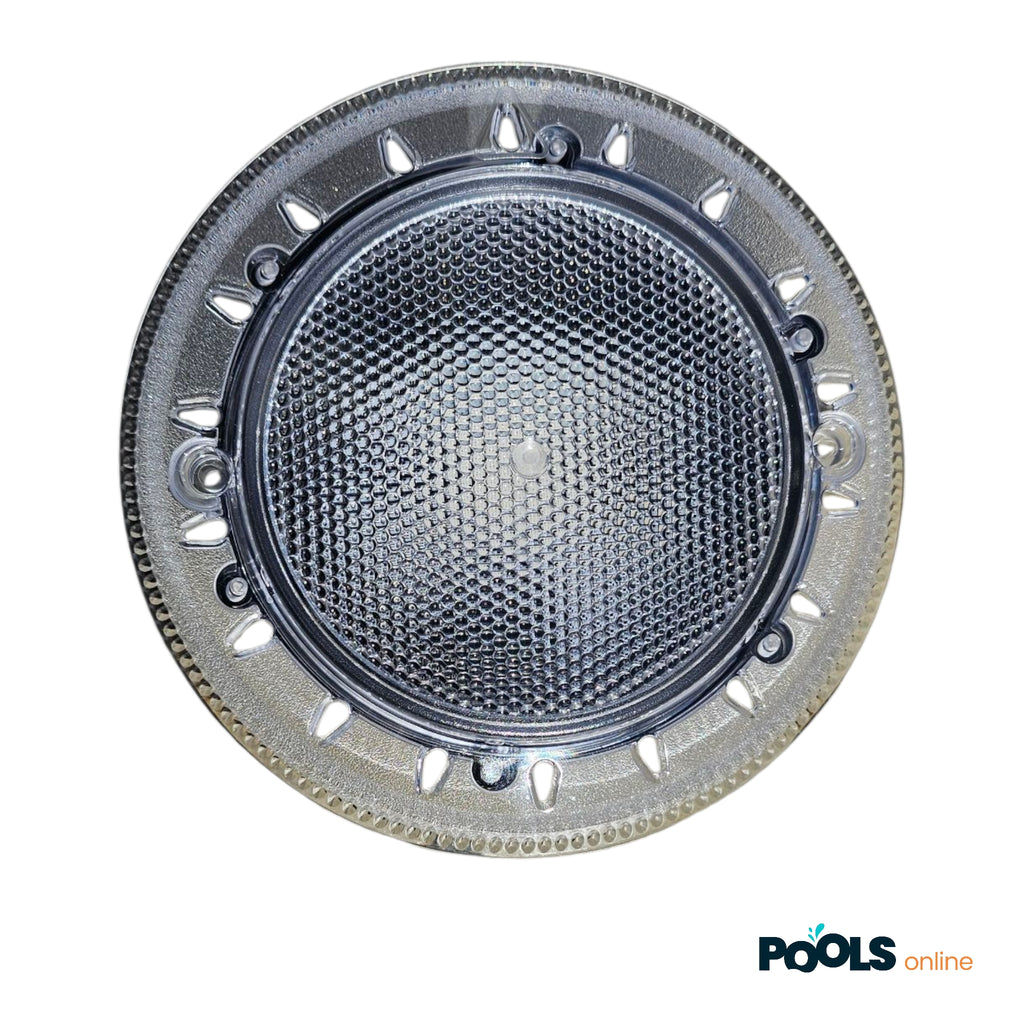

Rim: Clear (transparent), White, Grey or Black
-

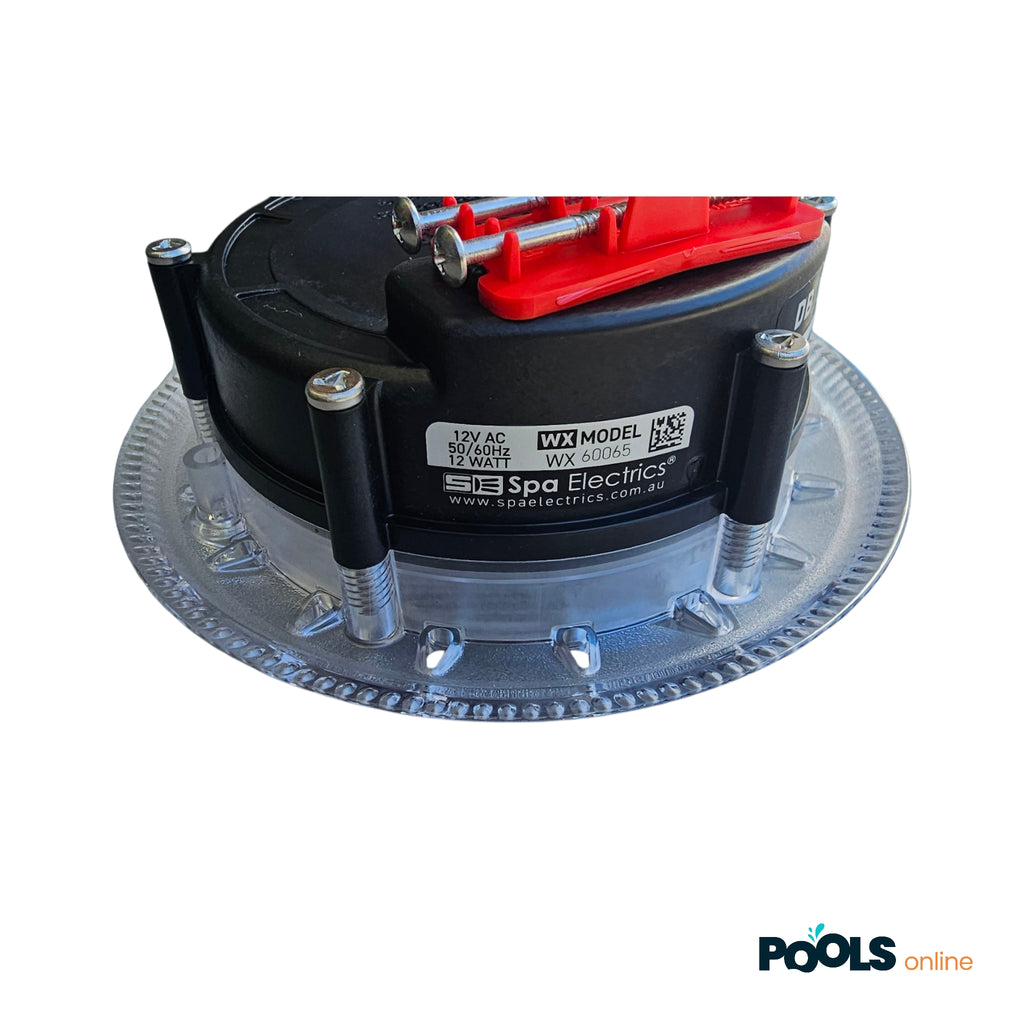

Voltage: 12V AC
-
Power: 12 W
-
Light source: High-intensity ceramic LED light engine
-
Colours: 7 colours including 4000K True White, Aqua, Deep Blue, Magenta, Red, Lime and Green, plus 4 colour-changing shows
-
Dimming: Available with an iRIS controller
-
IP rating: IPX8, certified for continuous underwater operation
-
Operating temperature: 0°C to +40°C ambient
-
Mounting: Niche mount (wet niche retro-fit)
-
Compatible with: iRIS lighting controllers and wall switch operation; third-party automation from AstralPool, Pentair, Zodiac / Jandy, Hayward, Dontek, INSNRG, SplashMe and Theralux
-
Replaces Spa Electrics: W5, WN5, WN9, WN250, WN550, WN850, WN950, Quantum WNC and WNF
-
Also replaces: Neptune (niche mount, concrete), Waterco Britestream Niche 165 (niche mount, concrete), Emaux Zircon (niche mount, concrete)
🛒 Before You Buy
-
Rim colour. Choose clear, white, grey or black. White, grey and black rims cost more than the standard clear rim.
-
Check what you are replacing. The WNRX is made to replace WN series wet-niche lights. If you are unsure, check the Spa Electrics light replacement guide first.
-
Power supply. The light runs on 12V AC. Use a suitable transformer such as the 12V 25VA transformer (1 light) or the 12V 50VA transformer (2 lights).
-
Installation. Wiring should be done by a licensed electrician. DIY installation may not be permitted in every state.
📂 Downloads and Support
🚚 Shipping
- Flat Rate
- Express
- Review all shipping rates
- Please note: Colour rim options (White, Grey and Black), typically take 1-2 days longer to ship.
🛡️ Warranty Information
12 month manufacturer warranty. To make a claim, visit the Spa Electrics warranty page.
