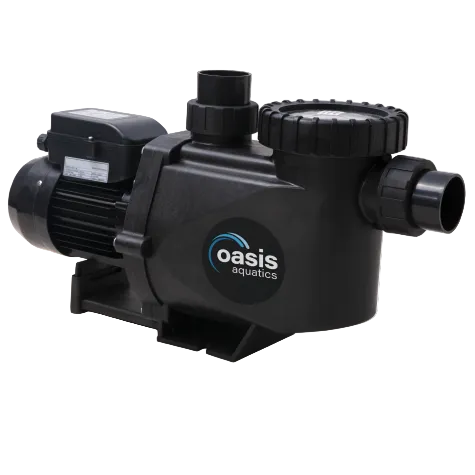

Oasis M Series Pool, Spa and Solar Pump
๐ท๏ธ Brand
Oasis (Sunlover Group)
๐ Description
The Oasis M Series (M130, M150, M170 and M250) are compact 240V single speed pumps from 0.3HP to 1.0HP, delivering 120 to 250 L/min at 8 m head, made for smaller systems such as solar pool heating circuits, spas and above ground pools.
A large strainer basket means less frequent cleaning, a non-return flap prevents backflow on solar systems, and self-aligning barrel unions on the suction and discharge make installation quick. The M Series is built with a stainless steel pump shaft, a lapped true carbon face and ceramic seal, and stainless steel assembly nuts and bolts, and has a removable clear inspection lid.
๐ฆ Parts Included
- 1x Oasis M Series pump (model as selected)
- 2x Barrel unions (40 mm / 50 mm)
- 1x 2 m power lead with 10A 3-pin plug
- 1x Installation and operation manual
๐ Measurements
Measurements are approximate.
-
Length: M130, M150 and M250 605 mm; M170 625 mm
-
Suction and discharge ports: suit 40 mm or 50 mm pipe
โ๏ธ Specifications & Compatibility
-
SKU: M130 / M150 / M170 / M250
-
Horsepower: M130 0.3 HP, M150 0.5 HP, M170 0.75 HP, M250 1.0 HP
-
Flow at 8 m head: M130 120 L/min, M150 150 L/min, M170 170 L/min, M250 250 L/min
-
Input power: M130 400 W, M150 650 W, M170 710 W, M250 910 W
-
Full load amps: M130 1.80 A, M150 2.87 A, M170 3.30 A, M250 4.02 A
-
Max noise at 1 m: M130 52 dB(A), M150 55 dB(A), M170 58 dB(A), M250 60 dB(A)
-
Power supply: 240V, 50Hz, single phase, 10A plug
-
Connections: 40 mm pipe or 50 mm fitting, barrel unions supplied
-
Max water temperature: 45ยฐC
*Images are for illustration purposes only. The actual product may differ from the image. Please read the product description and included parts for full details.
๐ก Before You Buy
-
Right job for the pump. The M Series manual describes it as a pump for solar heating or heat pump circulation, and says the warranty does not apply if it is used as the pool's filtration pump. For filtration, choose the Oasis P Series or the Oasis V Series.
-
Solar pump sizing. A solar pump has to lift water to the roof, so check the roof height and collector size when picking a model.
-
Power and safety. Use an RCD-protected outlet (30 mA or less) and no extension lead.
-
Spare O-rings. The barrel union seal is available separately: Oasis Tail Union O-Ring for M, P & V Series Pumps (SL0022).
๐ง Our Tips
-
Prime before starting. Fill the strainer basket with water, refit the lid on its O-ring, then run the pump. If it hasn't primed within about two minutes, switch off for 10 seconds and try again.
-
Hand-tight unions. Tighten barrel unions by hand only, with no sealant or green "P" plumber's glue.
-
Keep it cool. Leave at least 100 mm clear behind the fan shroud and ventilate any enclosure.
โ Common Questions
-
What is the non-return flap for? It stops water draining back through the pump when it switches off, which matters on solar heating systems where water sits above the pump on the roof.
-
Will it fit my existing plumbing? Yes, if your pipe is 40 mm or 50 mm PVC. The barrel unions accept 40 mm pipe or 50 mm fittings.
-
Air keeps showing under the lid. What's wrong? The manual says continued air under the lid points to an air leak in the suction pipework, which should be fixed to avoid damaging the pump.
๐ Downloads and Support
๐ Shipping
๐ก๏ธ Warranty Information
Limited 2 year warranty from Sunlover / Oasis on the motor and pump body, and 12 months on mechanical seals. O-rings and gaskets are routine maintenance items. Commercial installations: 6 months parts and in-field labour.
